Engine Specifications

General Description:

Cylinder Block:

Crankshaft:

Connecting Rods:

Pistons:

Piston Pins:

Piston Rings:

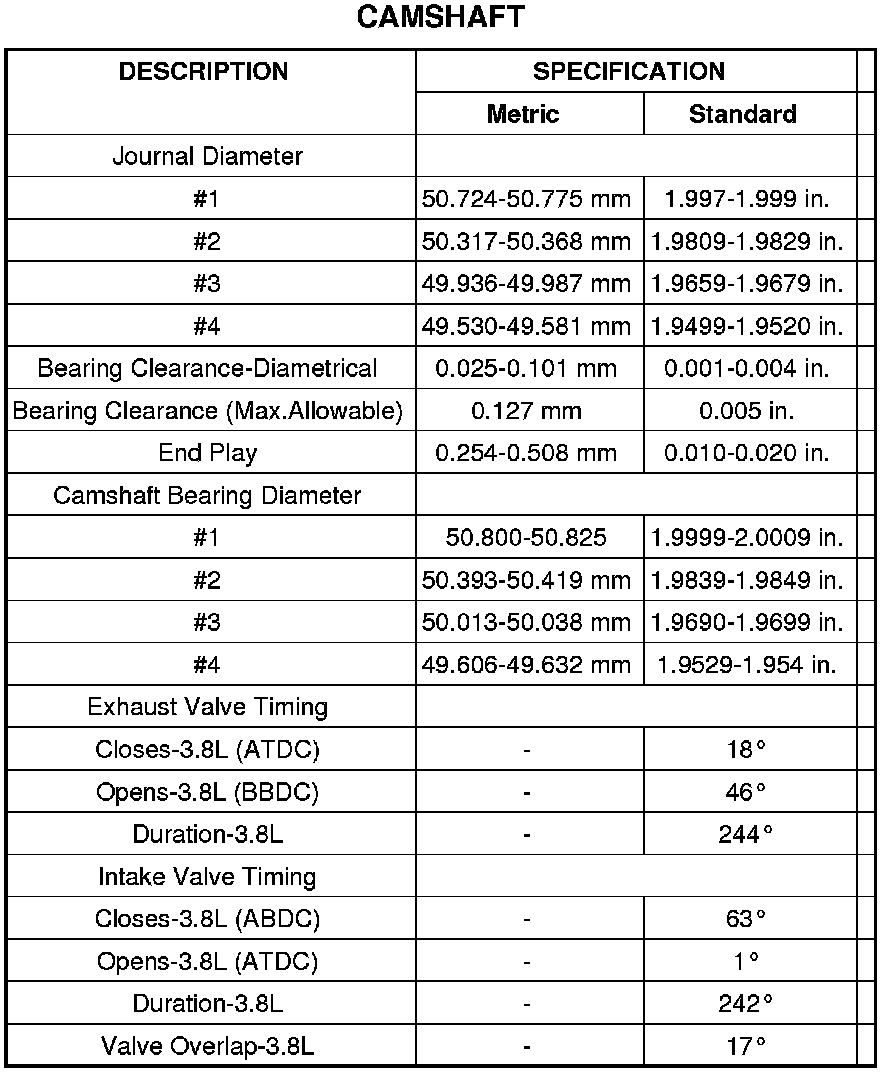

Camshaft:

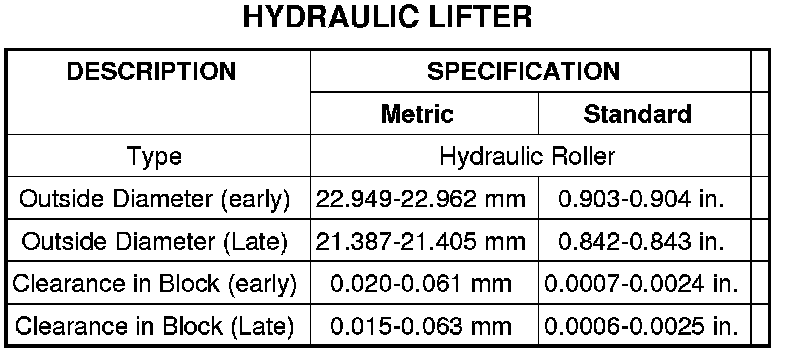

Hydraulic Lifter:

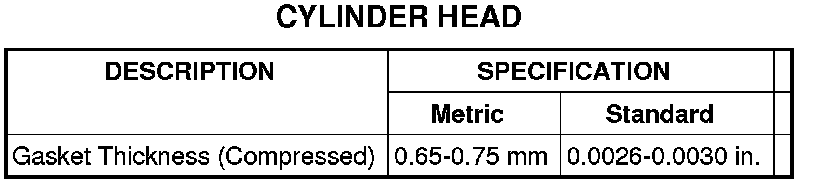

Cylinder Head:

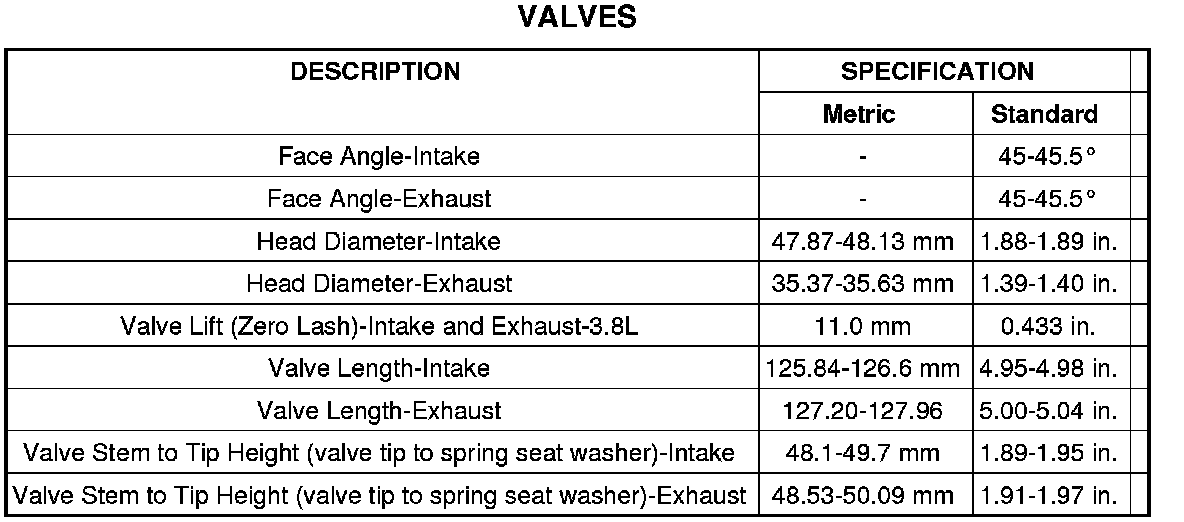

Valves:

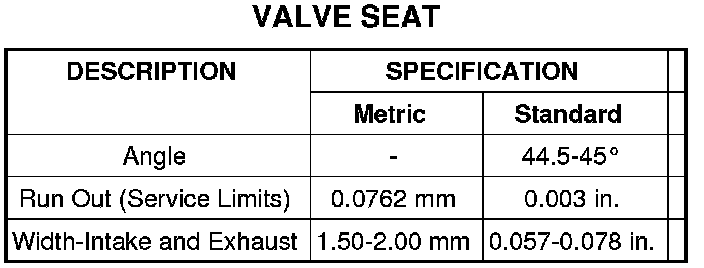

Valve Seat:

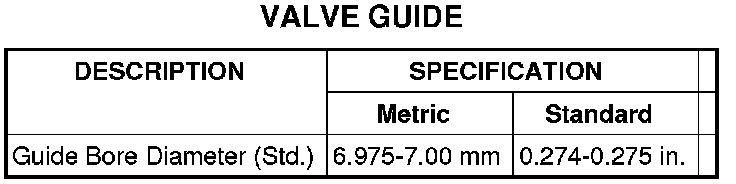

Valve Guide:

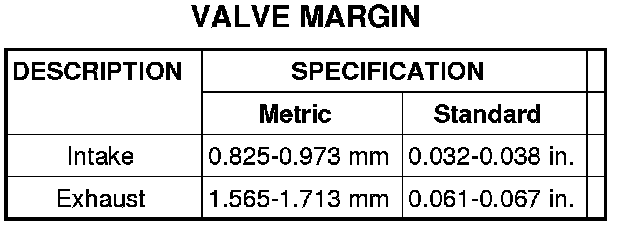

Valve Margin:

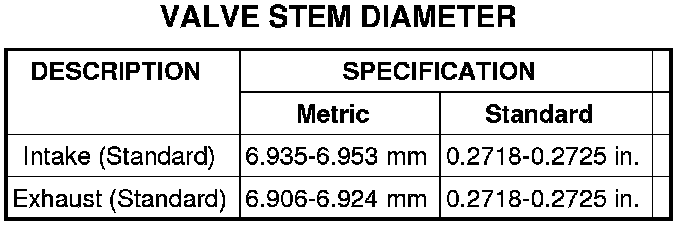

Valve Stem Diameter:

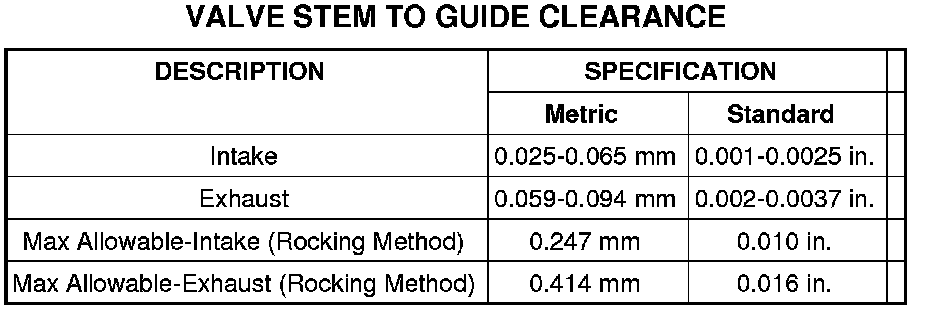

Valve Stem To Guide Clearance:

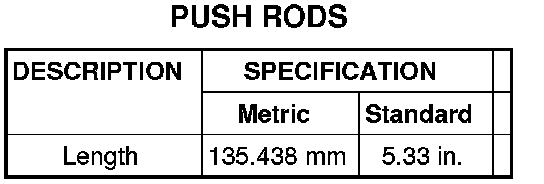

Push Rods:

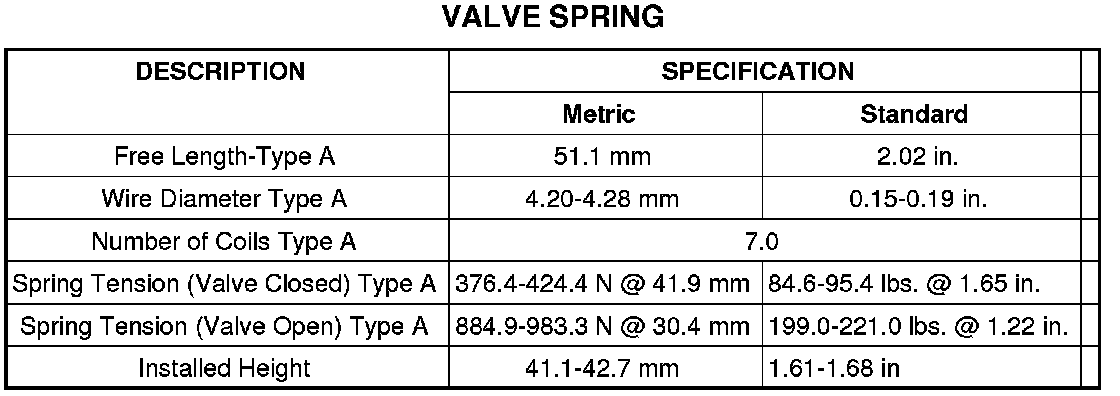

Valve Spring:

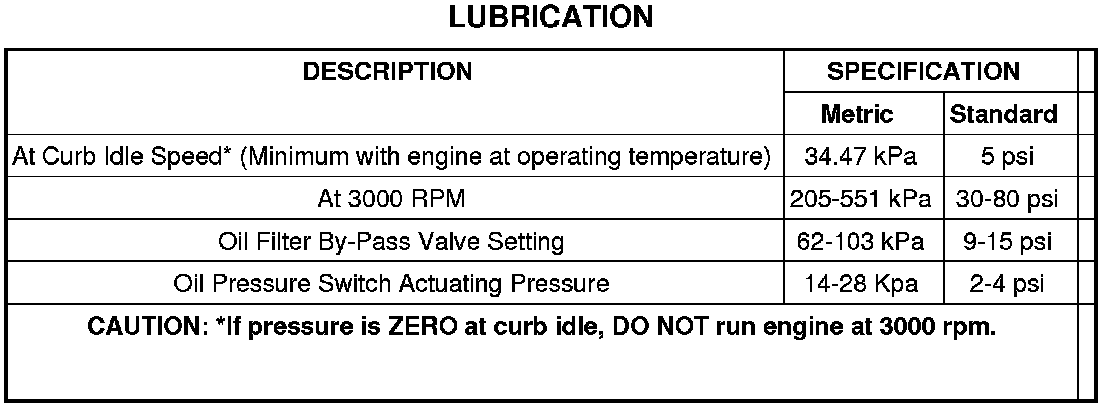

Lubrication:

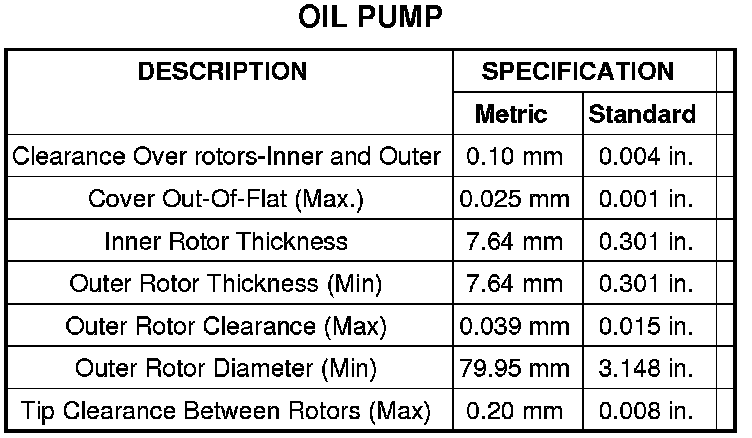

Oil Pump:
