Service Specifications







3.8L ENGINE

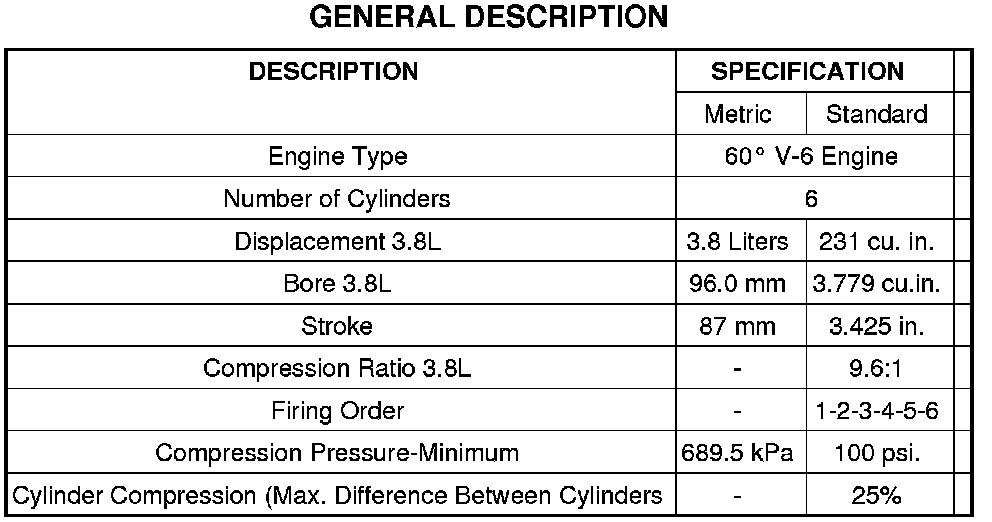

General Description:






Cylinder Block:

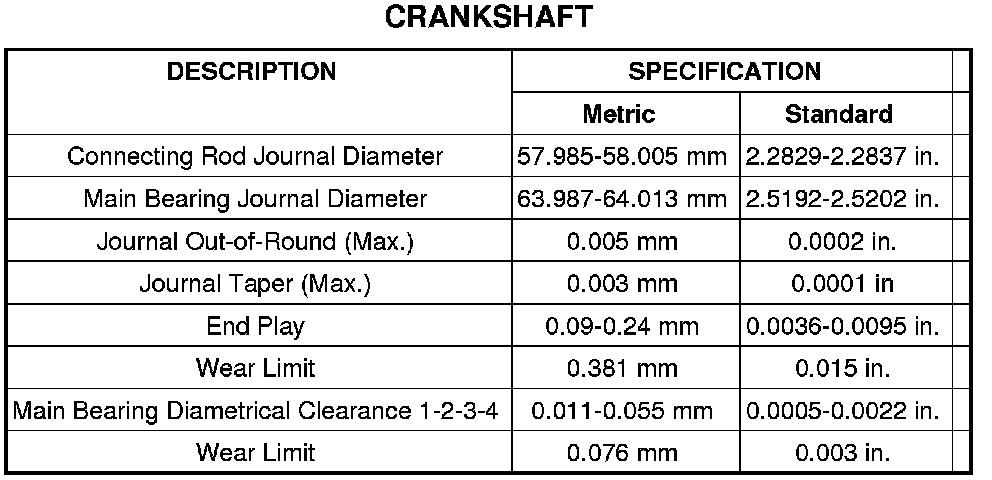

Crankshaft:

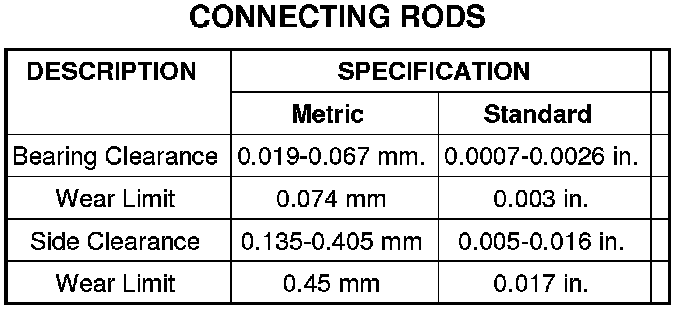

Connecting Rods:

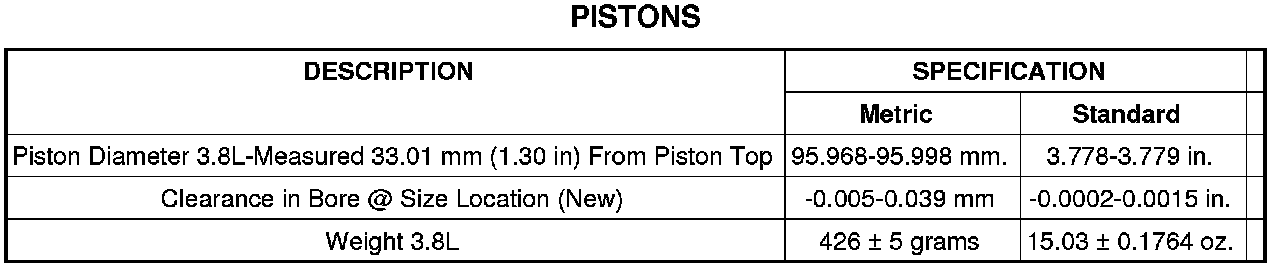

Pistons:

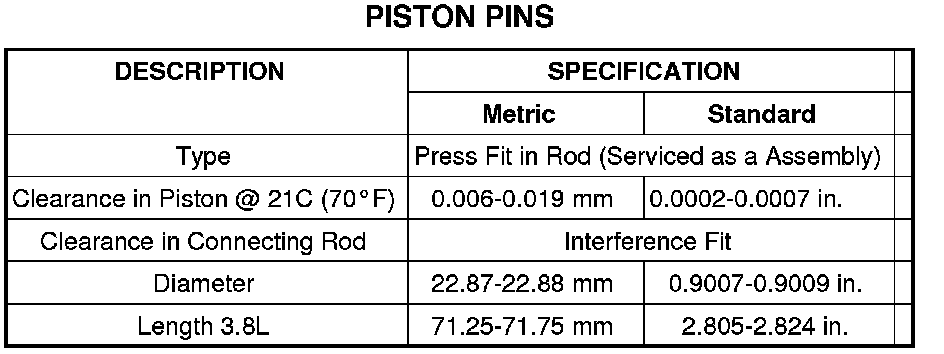

Piston Pins:

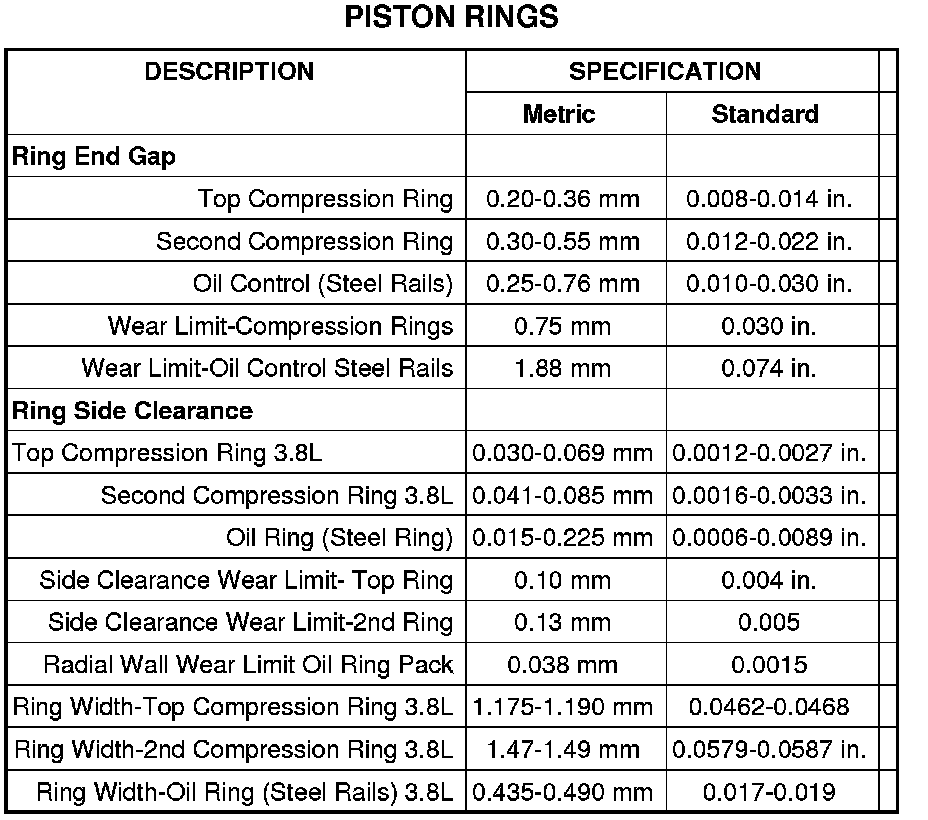

Piston Rings:
