Switch-Locker-Rear

Component ID: 340

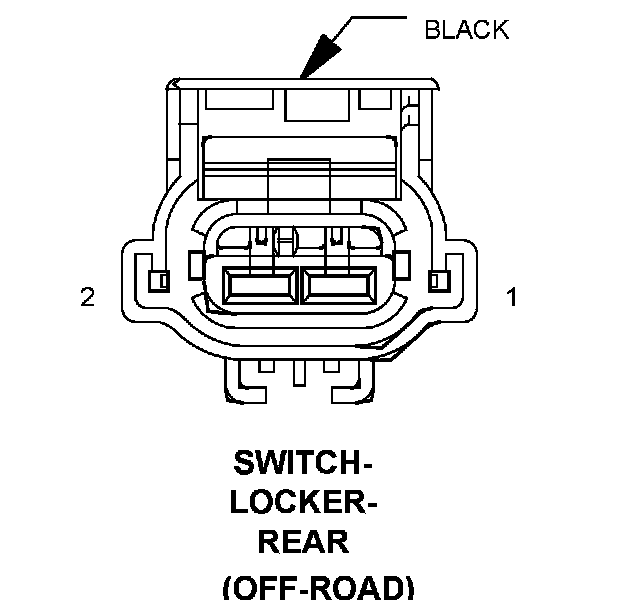

Component : SWITCH-LOCKER-REAR

Connector:
Name : SWITCH-LOCKER-REAR
Color : BLACK
# of pins : 2
Qualifier : (OFF-ROAD)




Pin Circuit Description
1 T527 18YL/TN REAR LOCKER SWITCH SENSE
2 K91 18DB/YL SENSOR GROUND
