Installation

INSTALLATION

NOTE: If the FDCM is being replaced it is necessary to perform the Quick Learn Procedure using the Scan Tool.

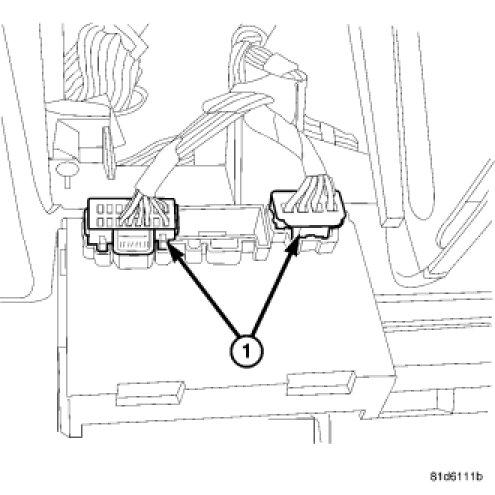

1. Connect the two electrical connectors (1) into the FDCM.

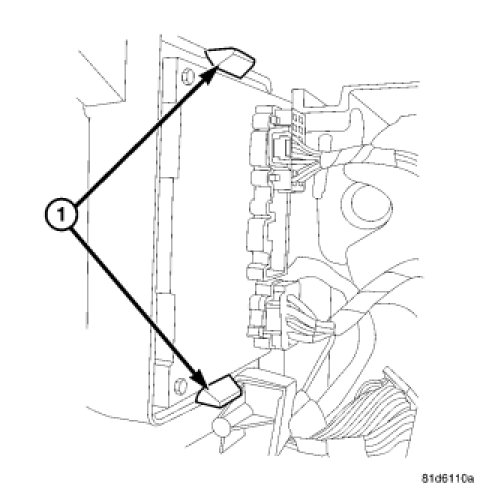

2. Install the FDCM being certain the locking tabs (1) are secure.
3. Raise the drivers side knee bolster.
