System Specifications

Torque Specifications

Timing Chain Guide Bolts 28 Nm (250 in. lbs.)
Timing Chain Tensioner Arm Bolt 28 Nm (250 in. lbs.)
Hydraulic Tensioner Bolts 28 Nm (250 in. lbs.)
Timing Chain Primary Tensioner Bolts 28 Nm (250 in. lbs.)
Timing Drive Idler Sprocket Bolt 34 Nm (25 ft. lbs.)

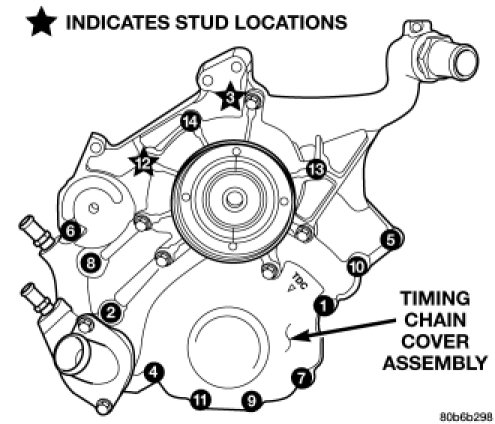

Timing Chain Cover Bolts* 58 Nm (43 ft. lbs.)
*In sequence shown in image
