INSTALLATION
1.
Refer to TIPM cover for ASD relay location.
2.

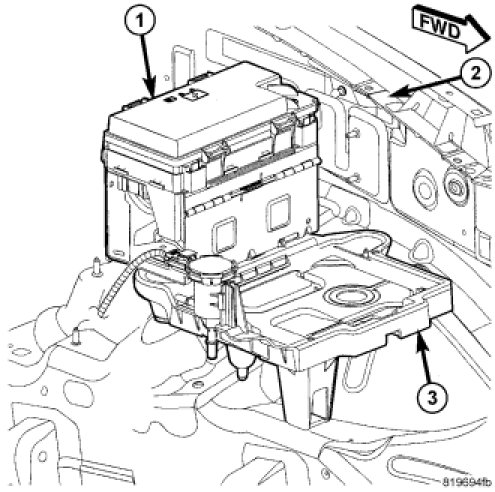

Install relay to TIPM (1).
3.
Install cover to TIPM.
