Powertrain Control Module - Removal

REMOVAL

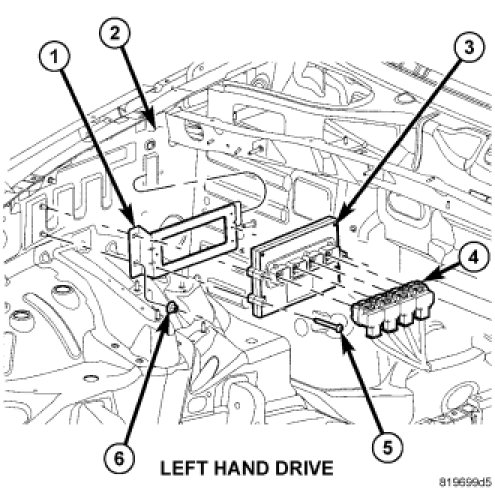

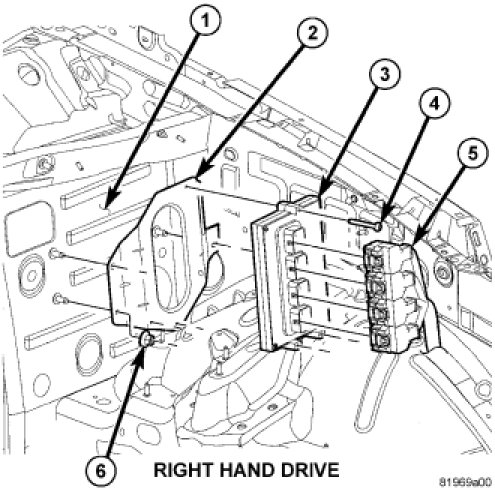

1. The PCM (Powertrain Control Module) (3-Right Hand Drive), or (3-Left Hand Drive) is located in the engine compartment.
2. Disconnect negative battery cable.
3. Disconnect PCM electrical connectors (5-Right Hand Drive), or (4-Left Hand Drive).
4. Remove PCM mounting screws (4-Right Hand Drive), or (5-Left Hand Drive).
5. Remove PCM (3-Right Hand Drive), or (3-Left Hand Drive) from vehicle.
