Home >> Jeep >> 2008 >> Liberty 2WD V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Memory Positioning Systems >> Memory Positioning Switch >> Service and Repair >> Installation

Installation







INSTALLATION

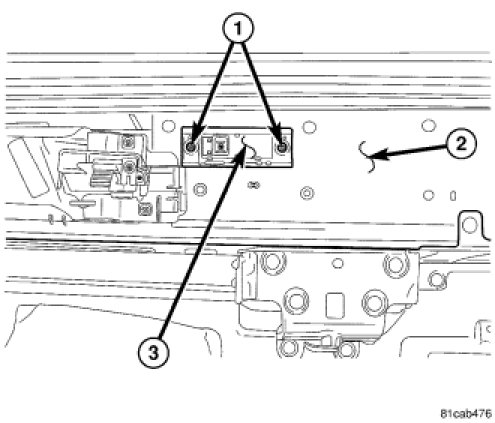

1. Position the memory switch (3) and install and tighten the two screws (1) that secure it to the back of the driver front door trim panel (2).
2. Install the driver front door trim panel, Front Door Trim Panel - Installation.
3. Reconnect the battery negative cable.
