Memory Positioning Switch: Locations

Component ID: 441
Component : SWITCH-MEMORY

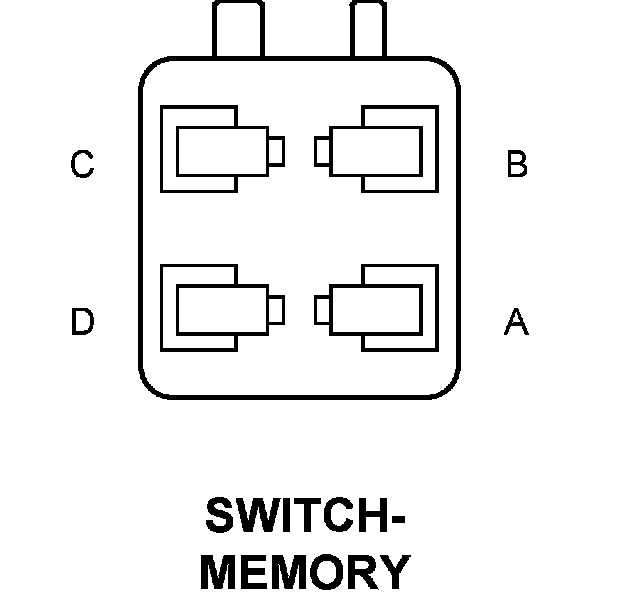

Connector:
Name : SWITCH-MEMORY
Color :
# of pins : 4




Pin Circuit Description
1 - -
2 G920 20VT/YL MEMORY SELECT SWITCH RETURN
3 G200 20VT/BR MEMORY SELECT SWITCH MUX
4 - -

Component Location - 34
