Installation

INSTALLATION





NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.

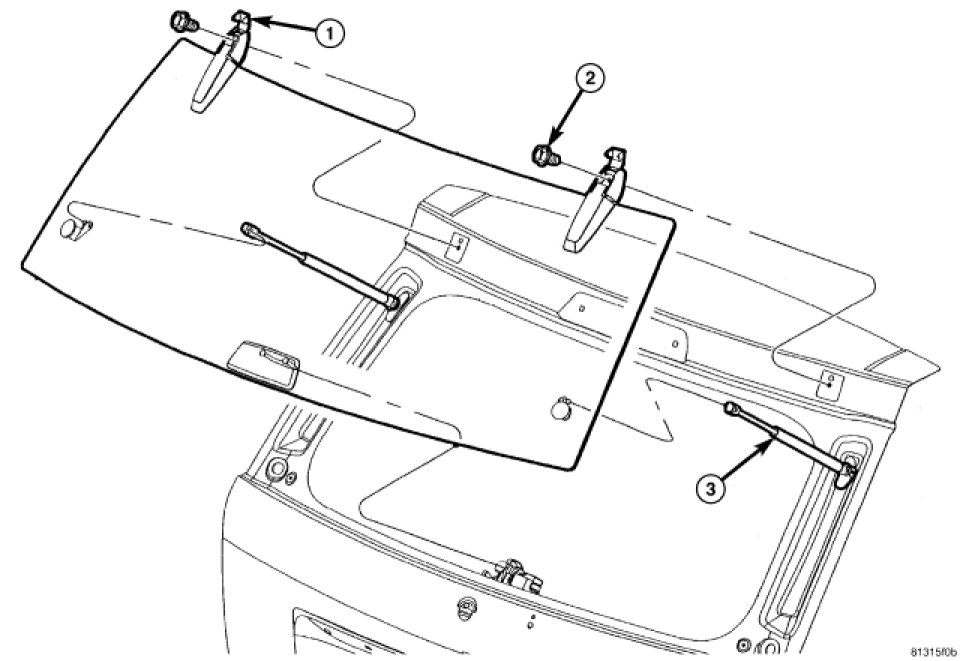

1. Position liftgate glass on vehicle.
2. Install hinge bolts (2). Center liftgate. Tighten hinge bolts to 7 Nm (60 in. lbs.).

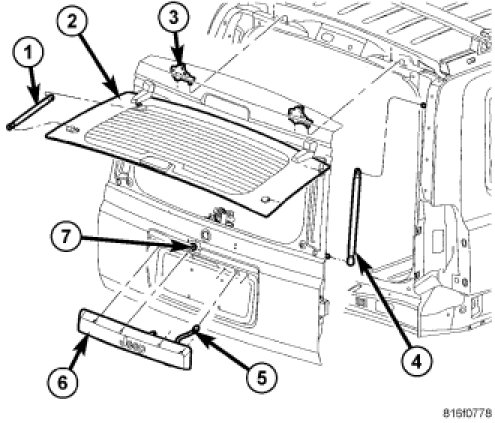

3. Open and support the glass (2).
4. Install support cylinders (1) Installation.

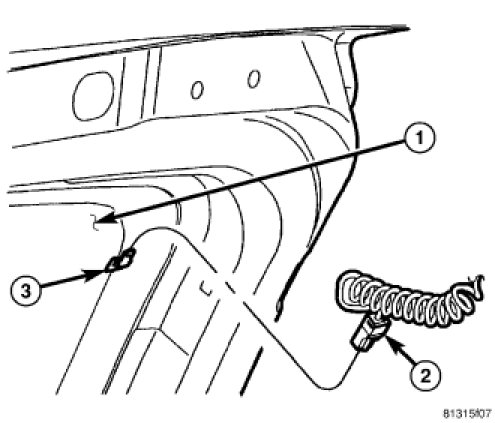

5. Connect heated glass electrical connector (2).
6. Adjust liftgate glass as necessary, .
