Power Distribution Center




Underhood Fuses (Power Distribution Center)

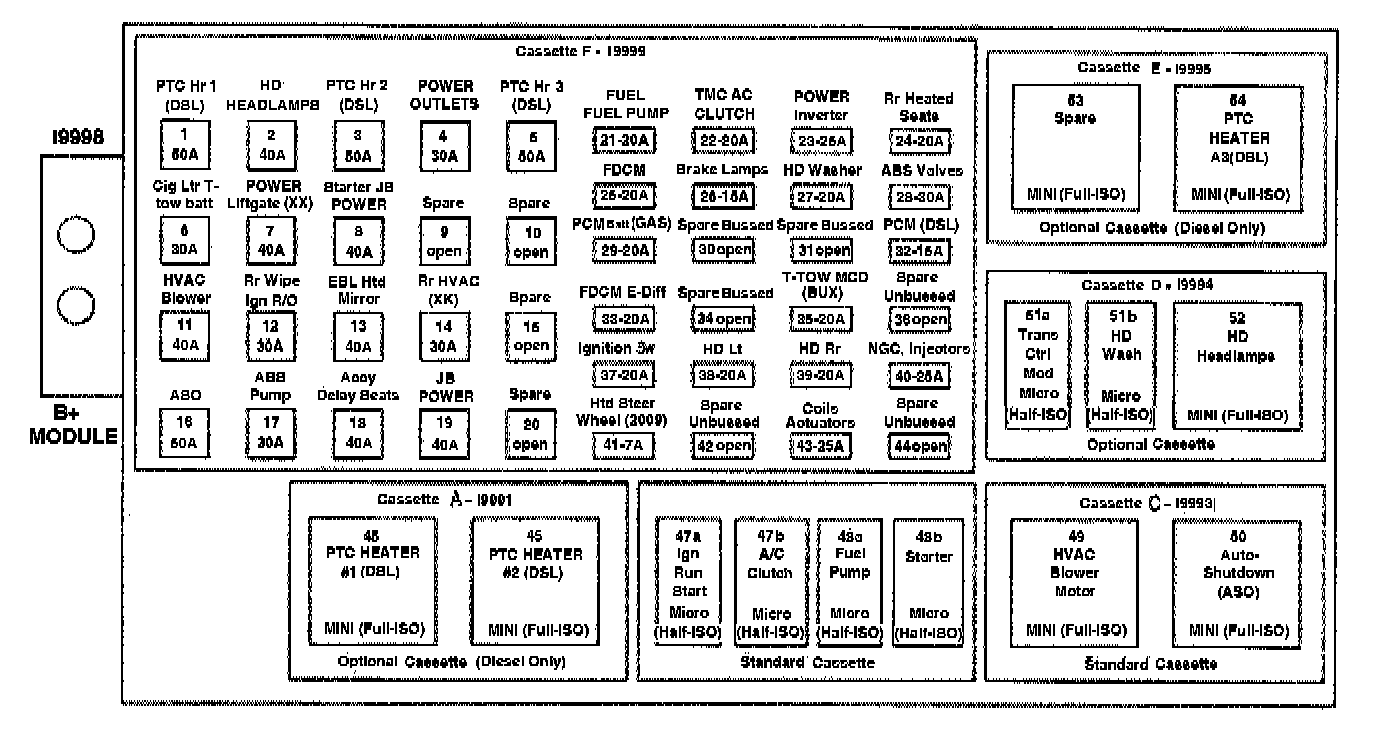

Power Distribution Center - Under Hood:

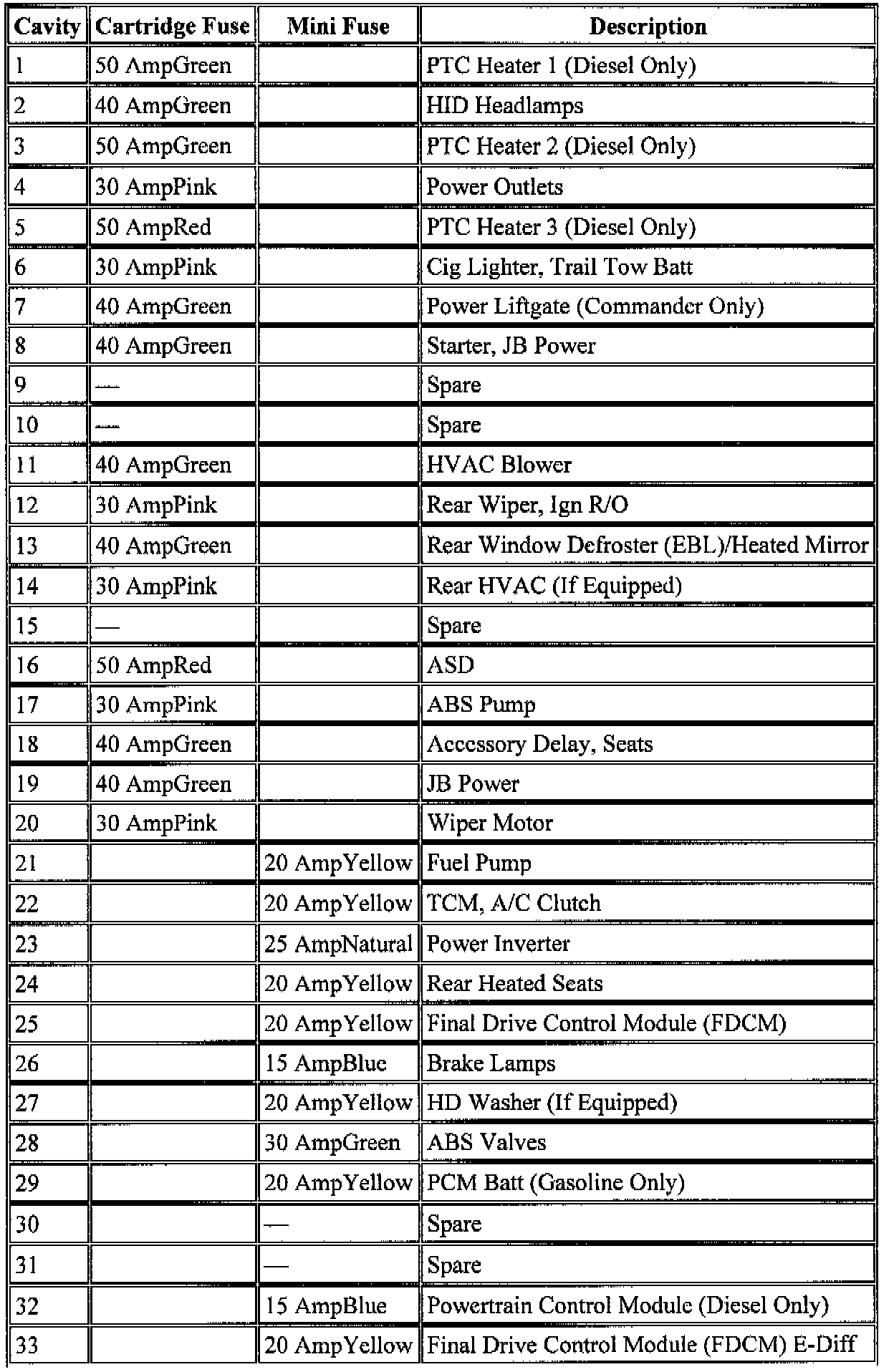

Fuse 1 - 33:

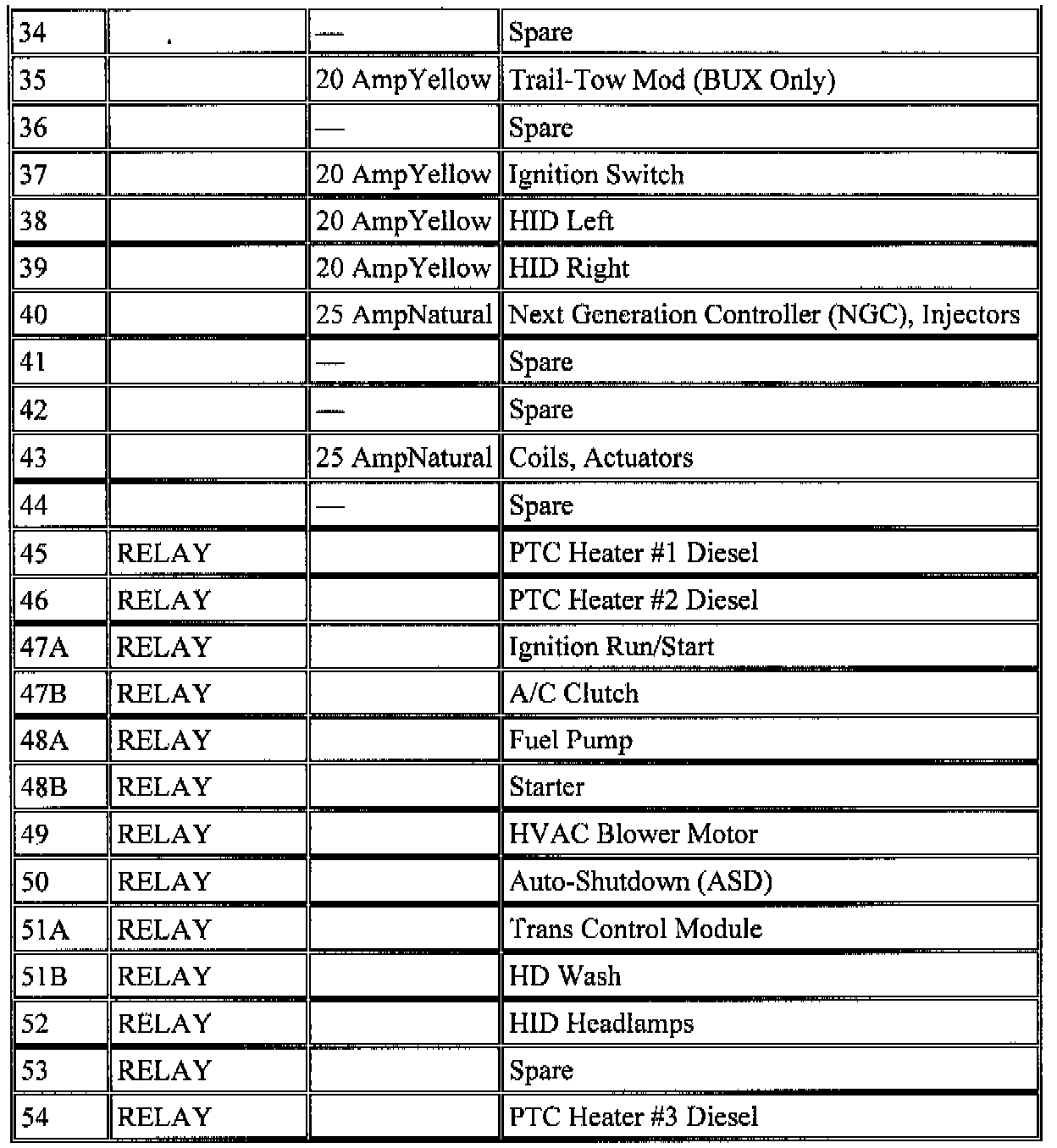

Fuse 34 - 54:
