Installation

INSTALLATION

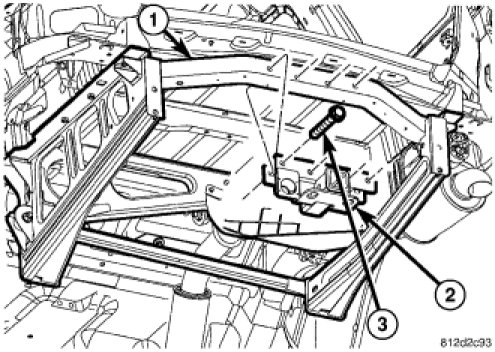

1. Install the hitch (2) onto the rear body cradle (1) and install the bolts (3).
2. Tighten the bolts (3) to 156 Nm (115 ft. lbs.).

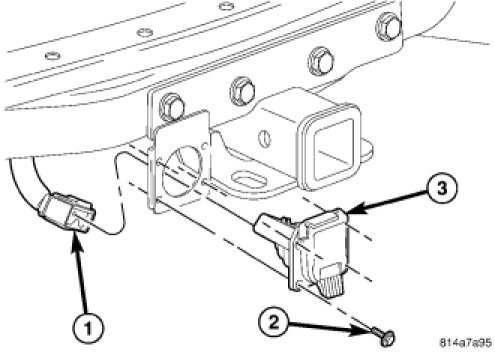

3. Connect the trailer connector wire harness (1).

NOTE: 7-way connector shown, 4 way similar.

4. Install the rear fascia. Rear Fascia - Installation
