Installation






INSTALLATION

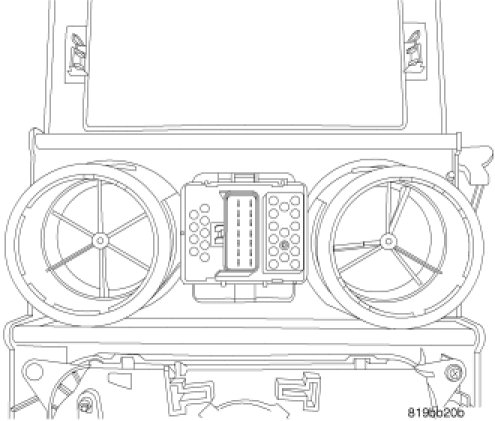

FRONT





1. Connect electrical harness connector to switch.

2. Align switch and press into position.

3. Install the center bezel.

4. Connect battery negative cable.

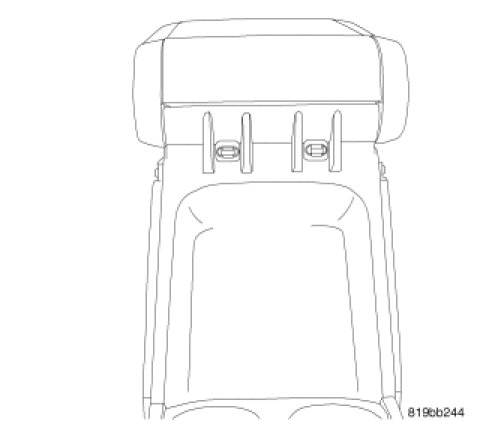

REAR





1. Connect electrical harness connector to switch.

2. Align switch and press into position.

3. Connect battery negative cable.
