Home >> Jeep >> 2007 >> Wrangler V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor >> Motor-Wiper-Rear

Motor-Wiper-Rear

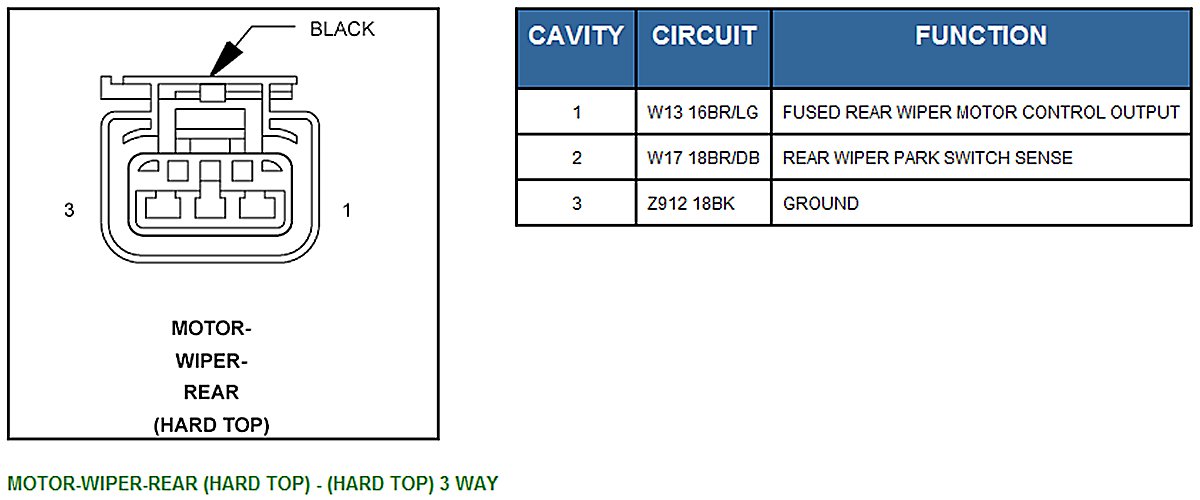

Motor-Wiper-Rear (Hard Top):
