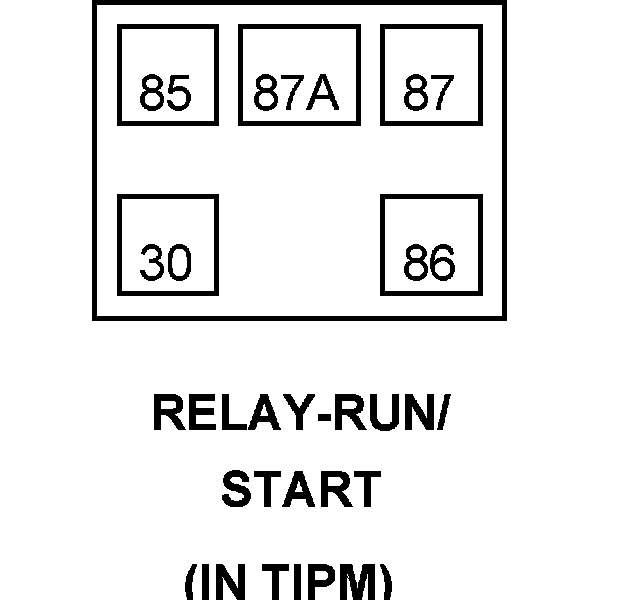

Relay-Run/Start

Component ID: 187
Component : RELAY-RUN/START

Connector:
Name : RELAY-RUN/START
Color :
# of pins : 0




30 B(+) INTERNAL
85 B(+) INTERNAL
86 RUN/START RELAY CONTROL INTERNAL
87 RUN/START RELAY OUTPUT INTERNAL
87A - -
