Lateral Accelerometer

Component ID: 285
Component : SENSOR-DYNAMICS

Connector:

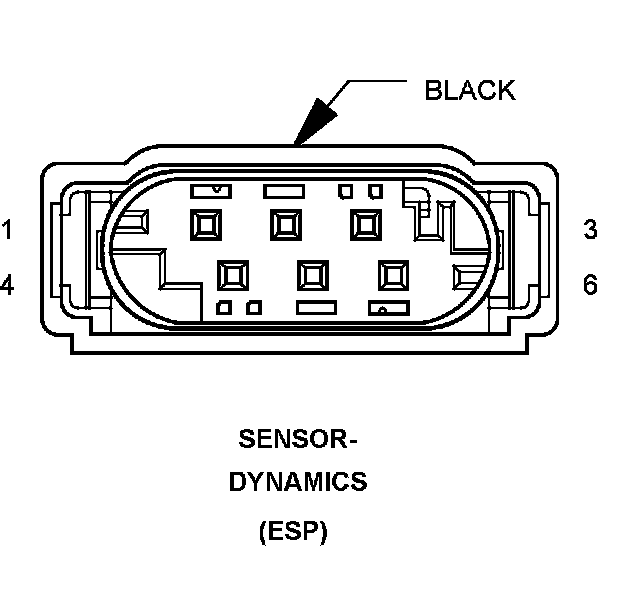

Name : SENSOR-DYNAMICS
Color : BLACK
# of pins : 6
Qualifier : (ESP)




Pin Description Circuit
1 DYNAMICS SENSOR LOW DATA LINK D464 20WT/YL
2 DYNAMICS SENSOR HIGH DATA LINK D465 20WT/DB
3 DYNAMICS SENSOR SUPPLY G4 20VT/LB
4 - -
5 DYNAMICS SENSOR GROUND G94 20VT/DB
6 - -

Component Location - 16
