Sensor-Front Impact-Left

Component ID: 289

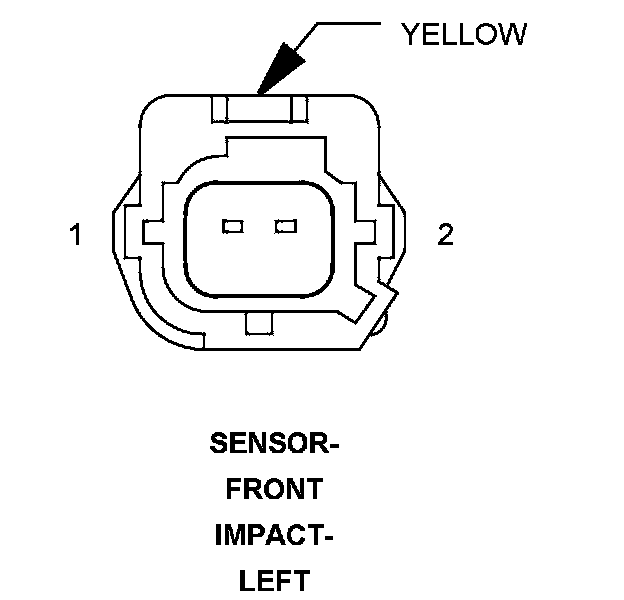

Component : SENSOR-FRONT IMPACT-LEFT

Connector:
Name : SENSOR-FRONT IMPACT-LEFT
Color : YELLOW
# of pins : 2




Pin Description Circuit
1 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
2 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
