Installation

INSTALLATION

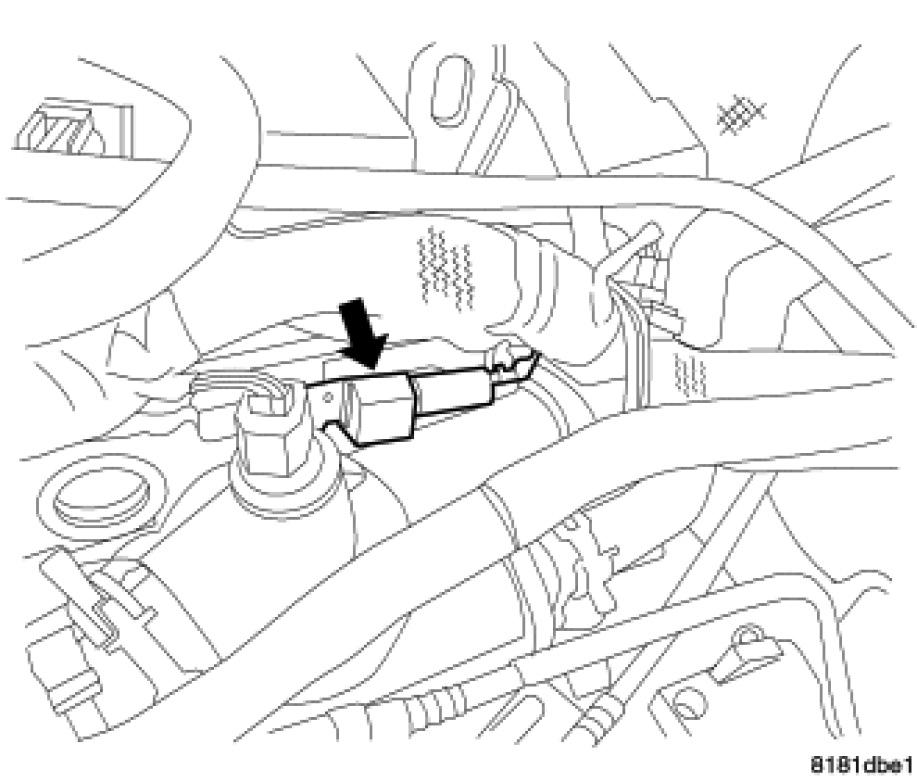

1. Install coil capacitor (with connector facing rearward) and mounting bolt and tighten to 10 Nm (88.5 in. lbs.).

2. Connect the electrical connector.

3. Connect the negative battery cable.
