Installation

INSTALLATION

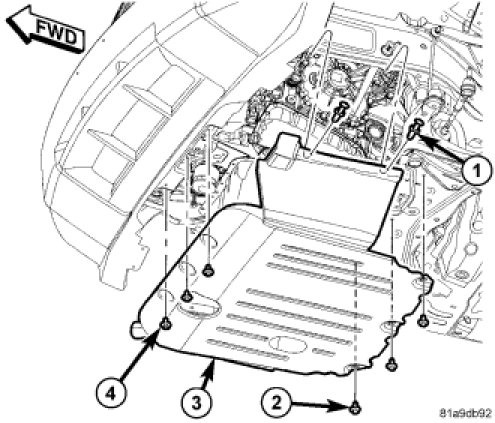

1. Install the belly pan (3) and install the front (4) and rear (2) screws.

2. Install the side push pin fasteners (1).

3. If required, position the wheelhouse splash shield back.
