Home >> Jeep >> 2007 >> Commander 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Cruise Control >> Cruise Control Switch >> Service and Repair >> Installation

Installation






INSTALLATION

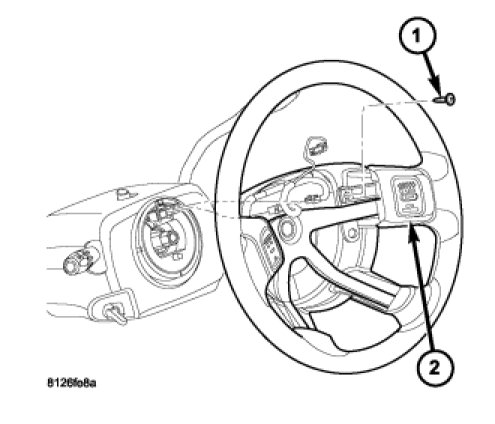

1. Position switch (2) to steering wheel.

2. Install switch mounting screw (1) and tighten.

3. Plug electrical connector into switch.

4. Install airbag module.

5. Connect negative battery cable to battery.
