Engine Control Module

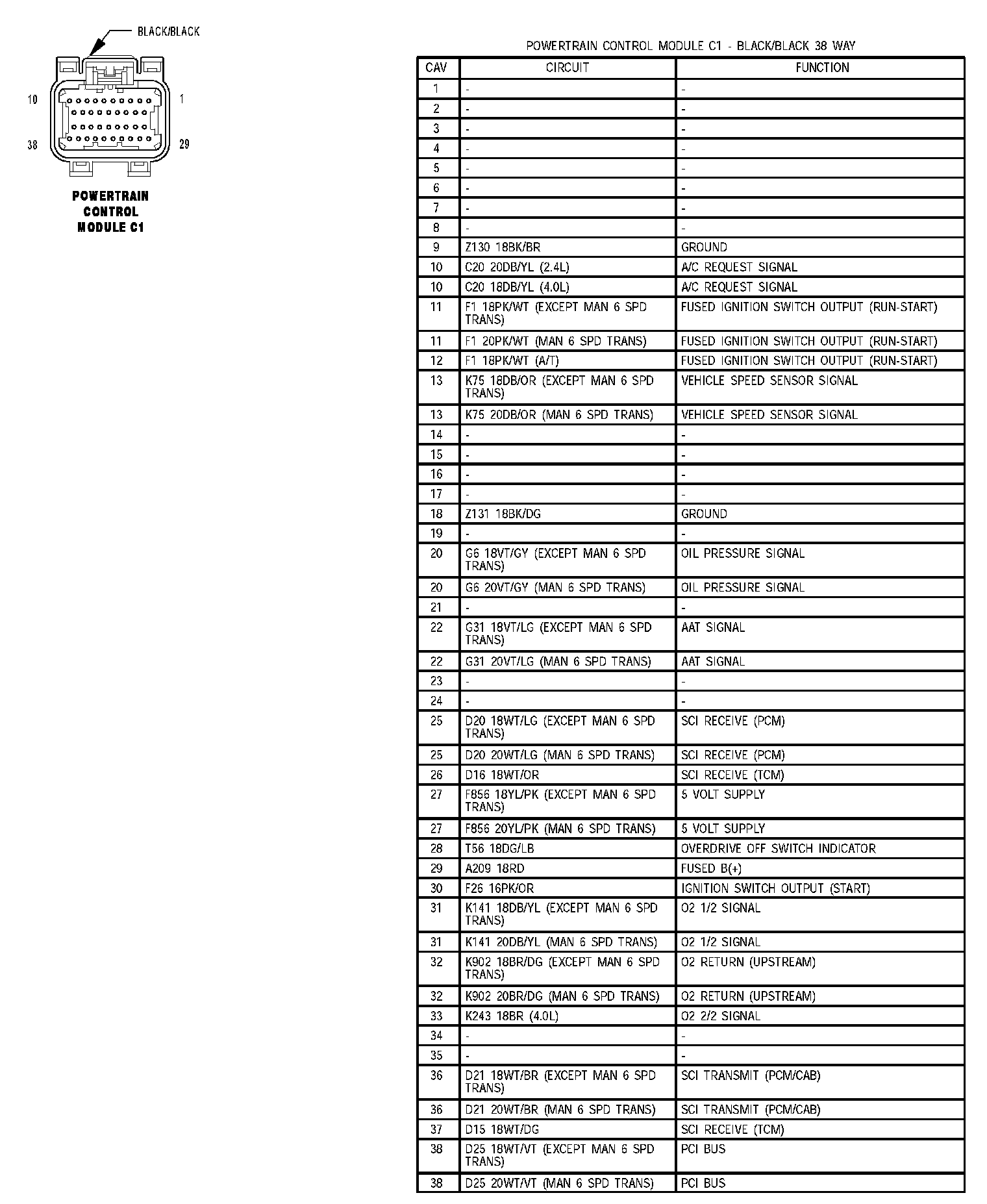

Powertrain Control Module C1:

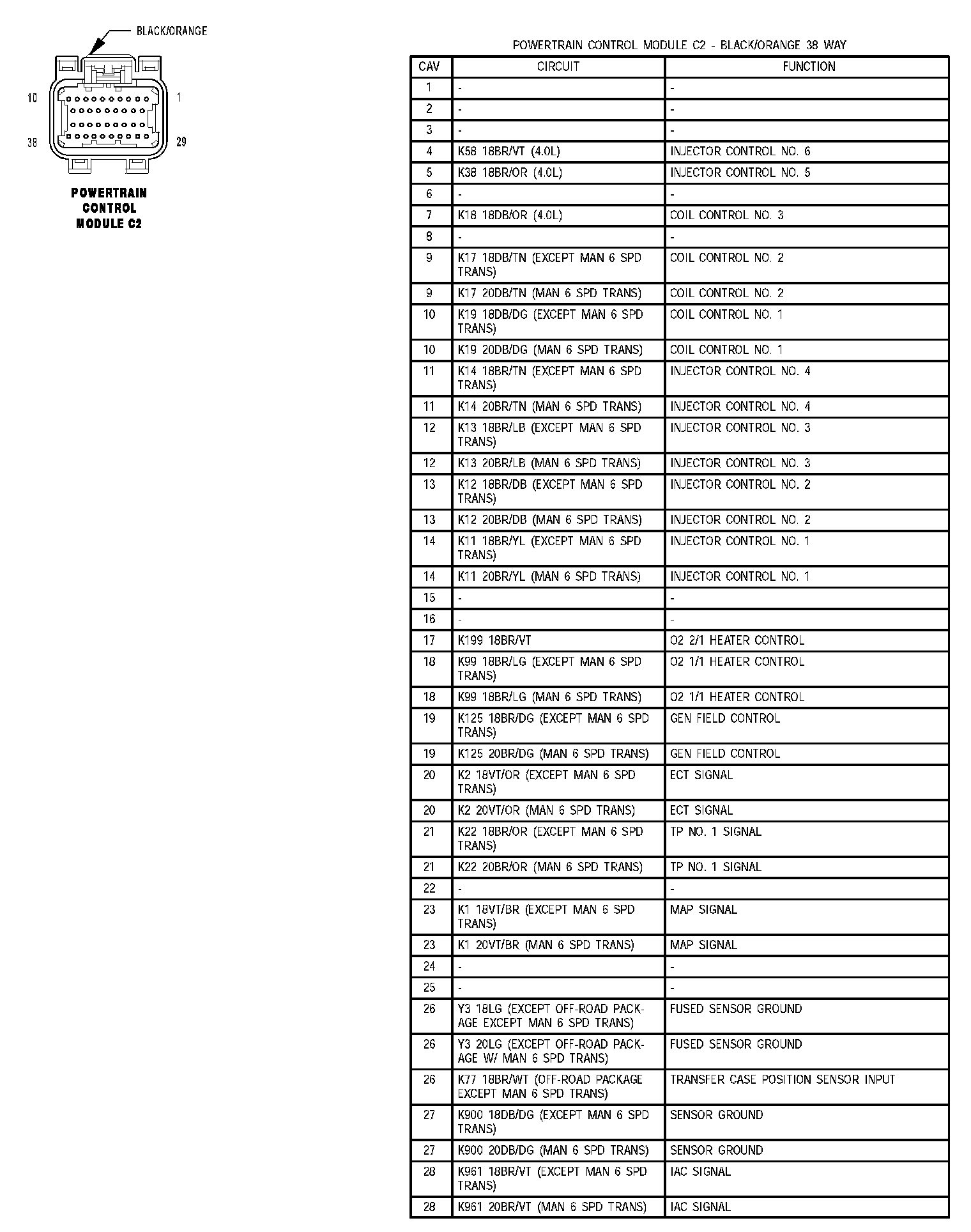

Powertrain Control Module C2 (Part 1 Of 2):

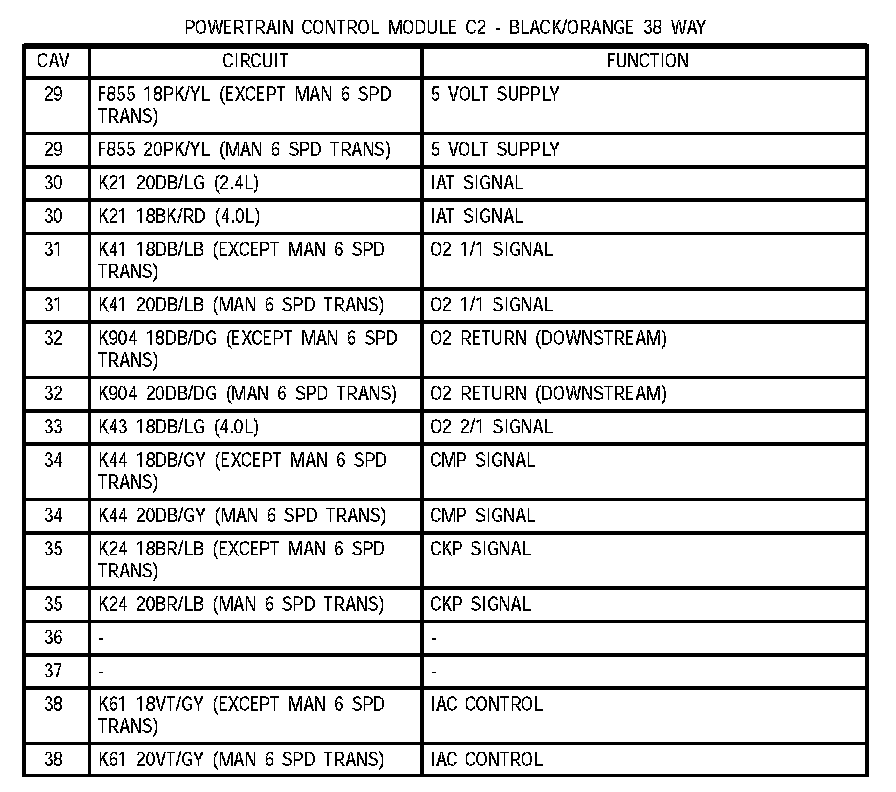

Powertrain Control Module C2 (Part 2 Of 2):

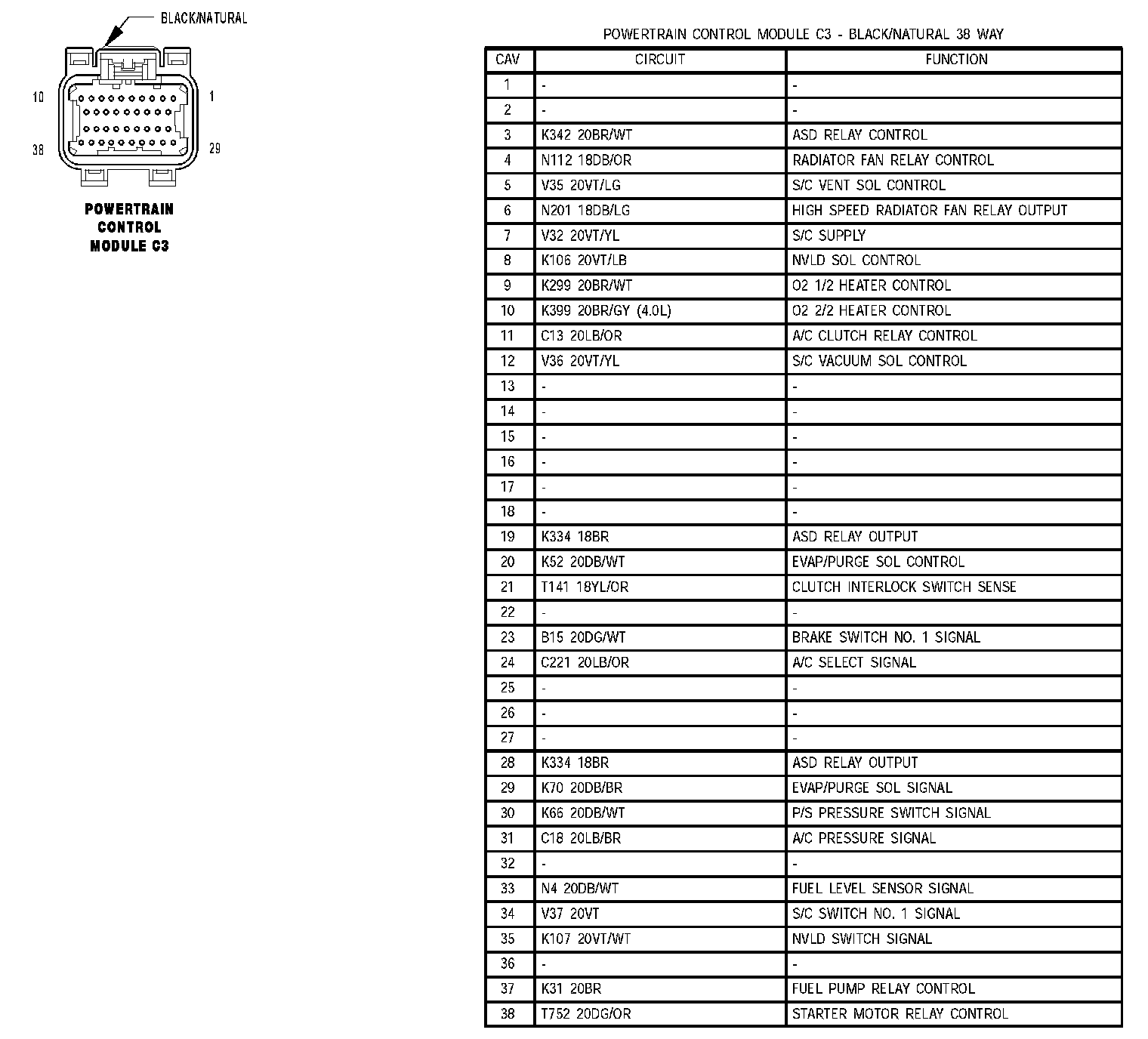

Powertrain Control Module C3:

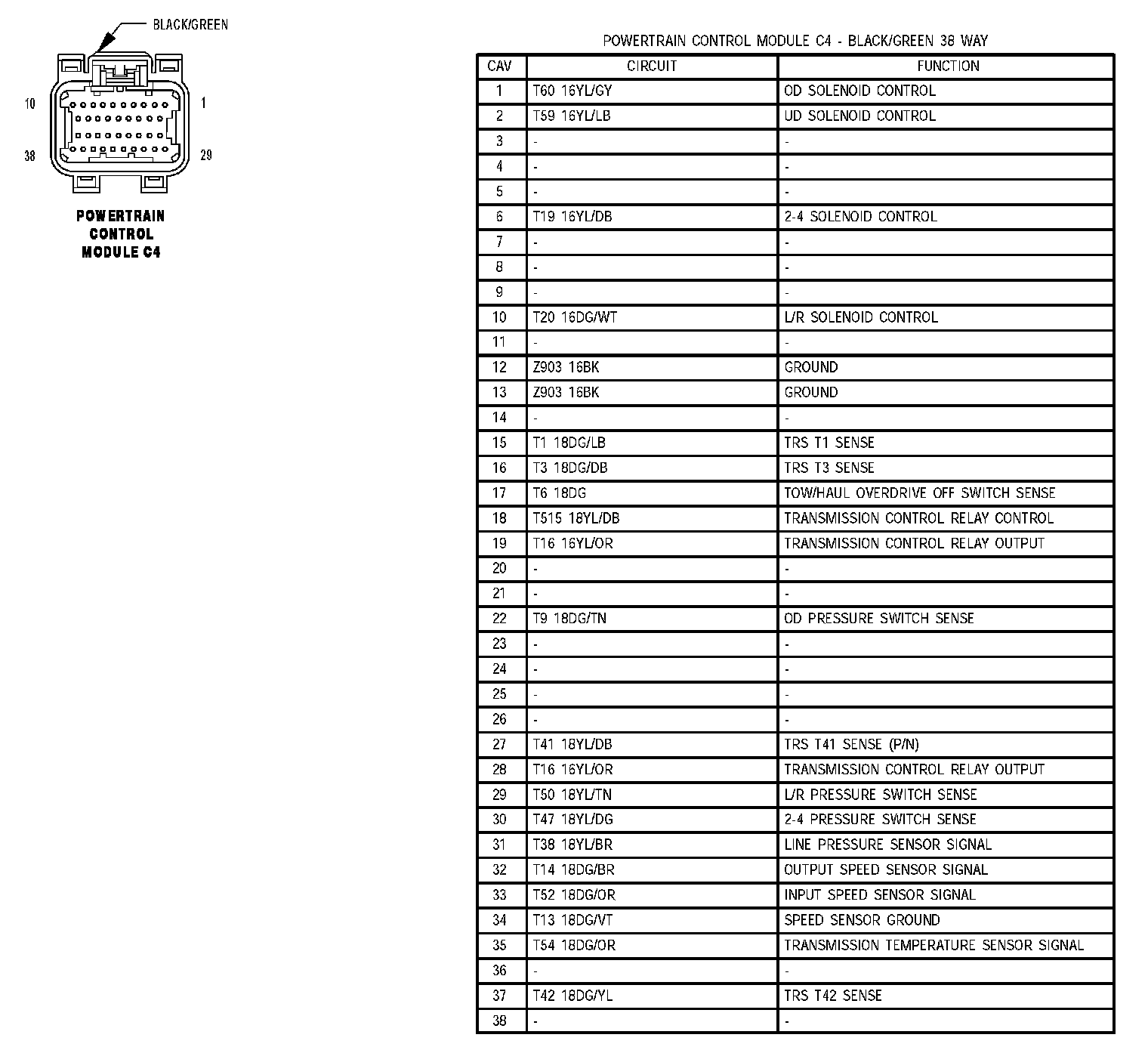

Powertrain Control Module C4:
