Home >> Jeep >> 2006 >> Commander 4WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

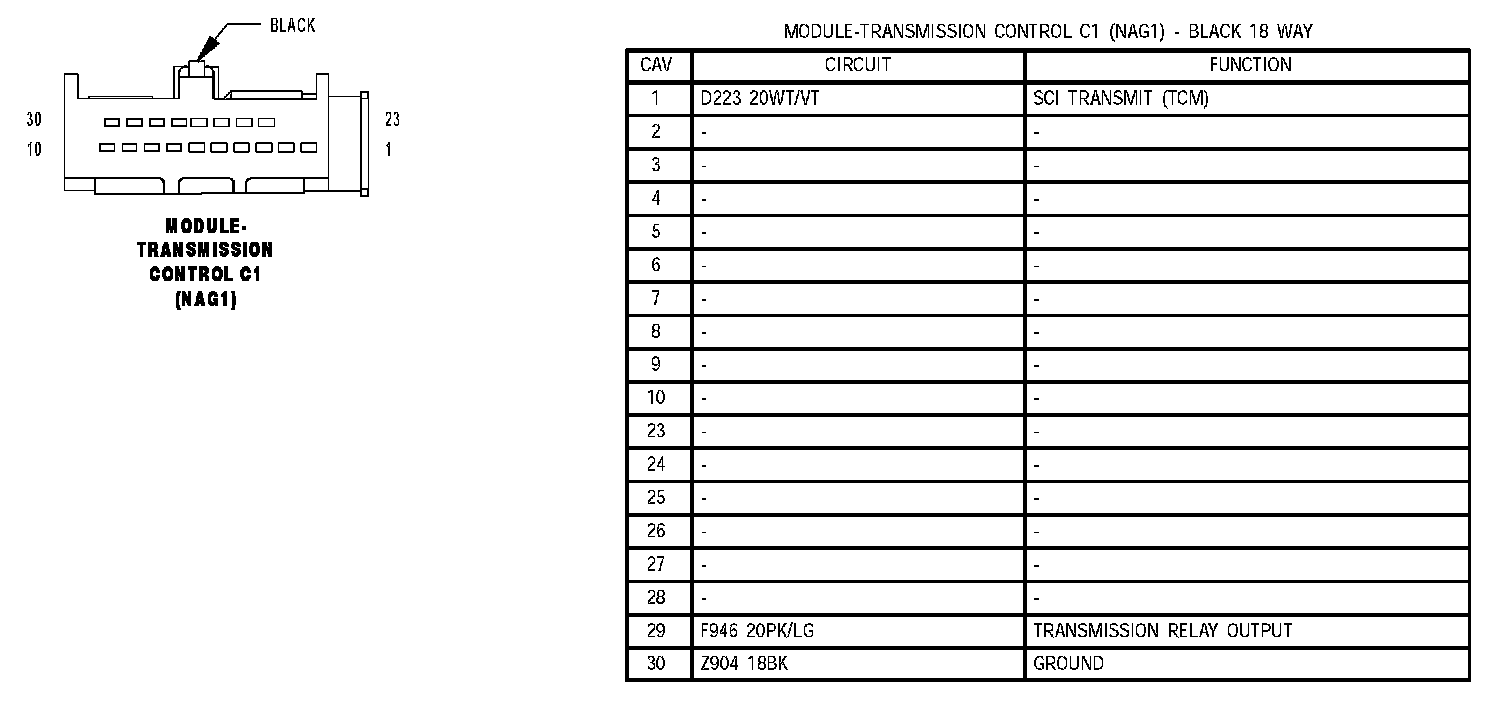

Module Transmission Control C1 (NAG1):

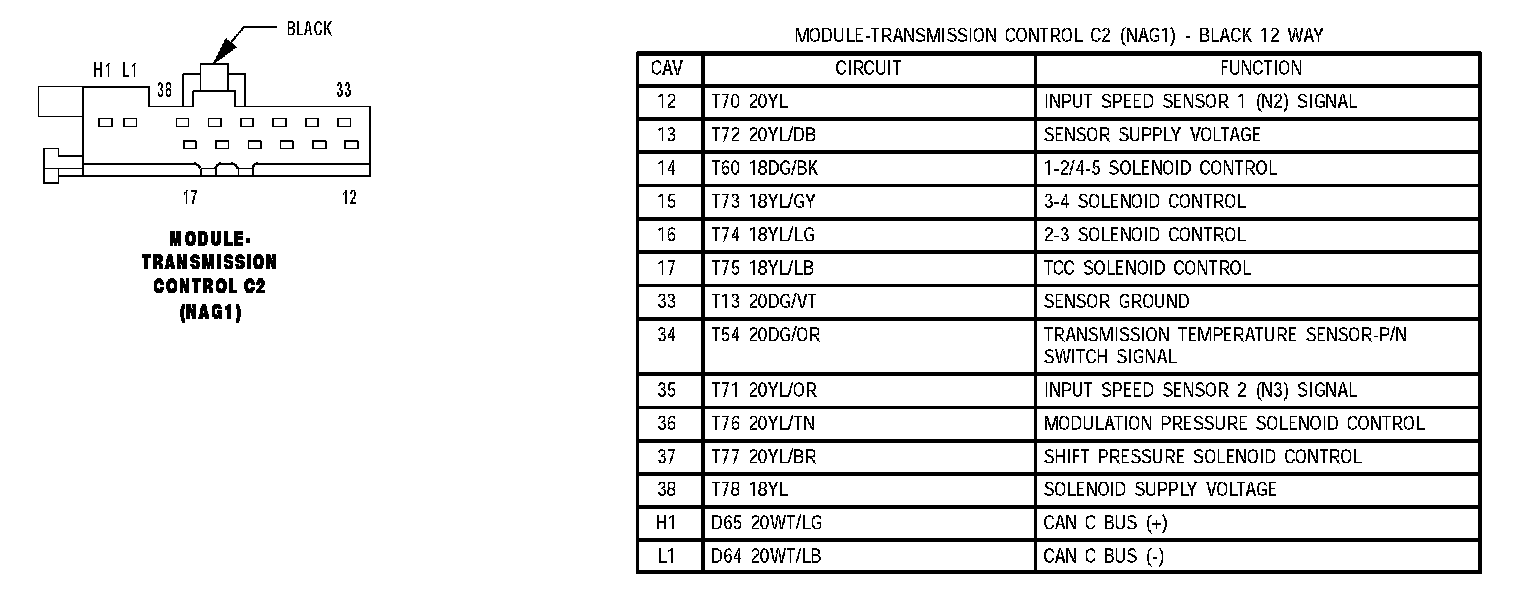

Module Transmission Control C2 (NAG1):
