Control Module, Transfer Case
Control Module, Transfer Case
Module Final Drive Control C1 (45RFE):

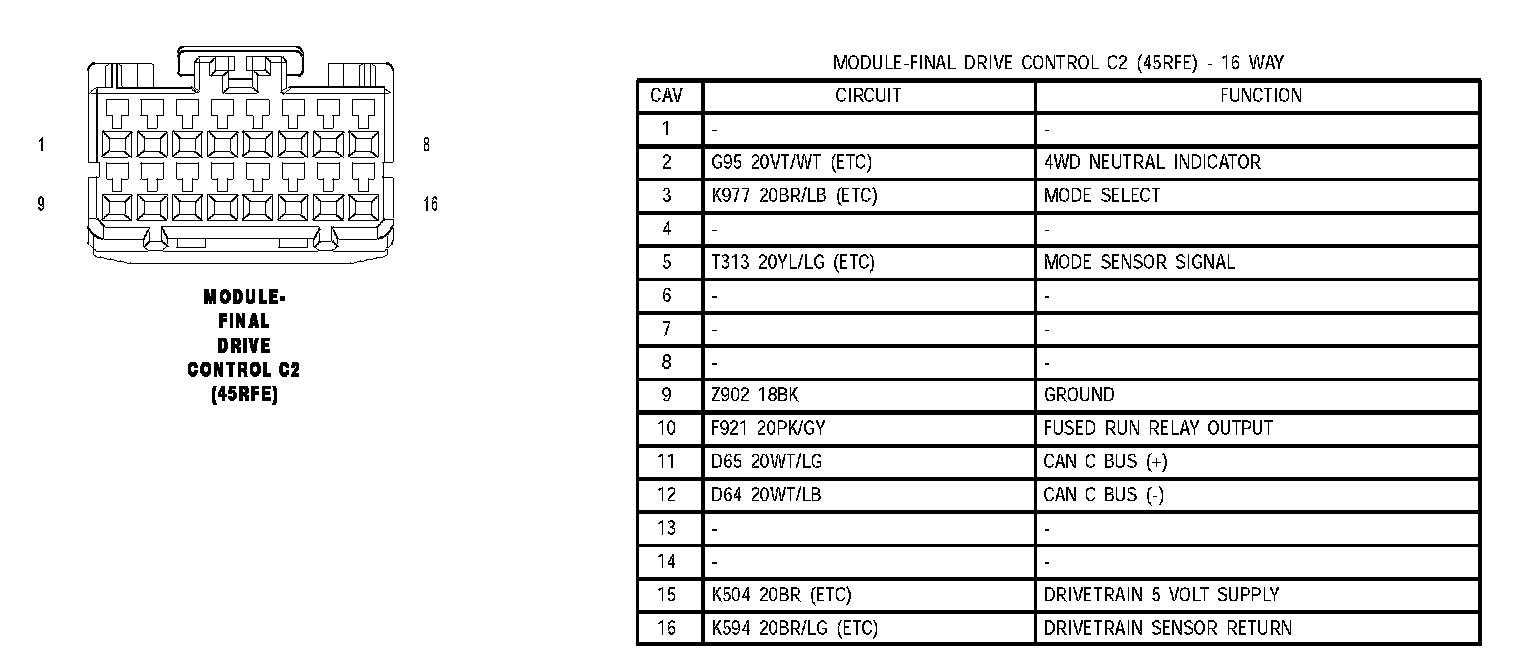

Module Final Drive Control C2 (45RFE):
