Home >> Jeep >> 2006 >> Commander 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

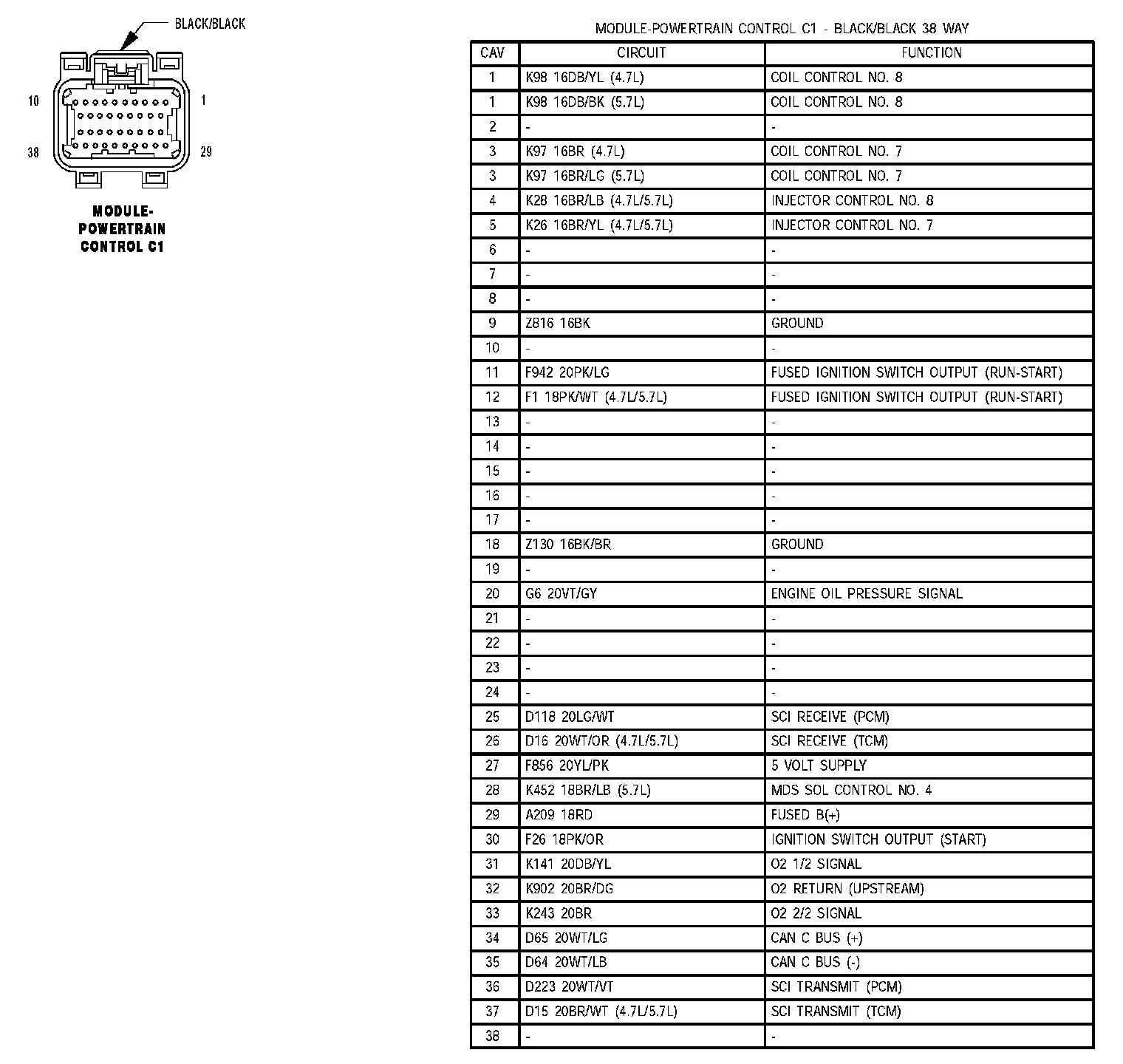

Module Powertrain Control C1:

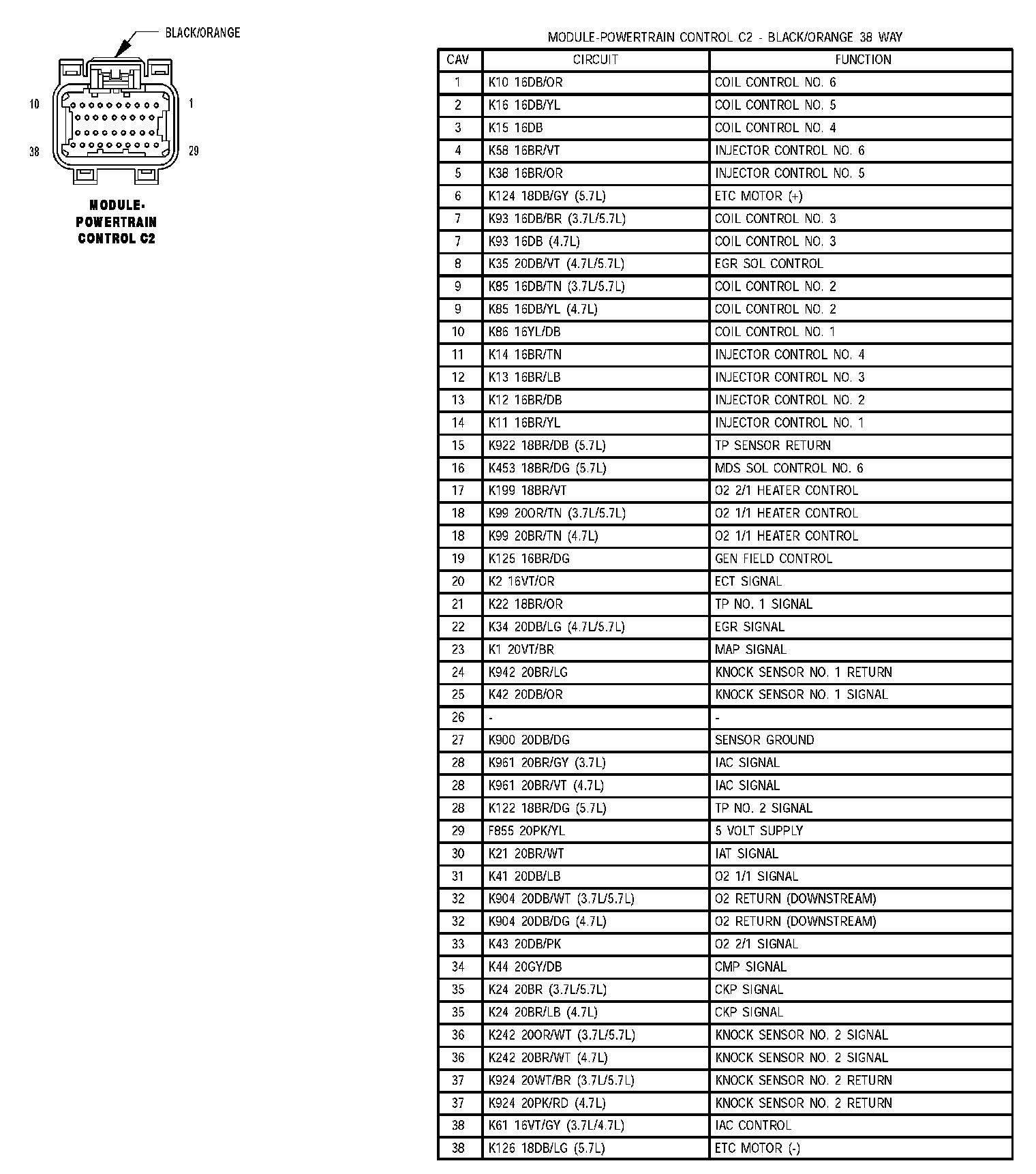

Module Powertrain Control C2:

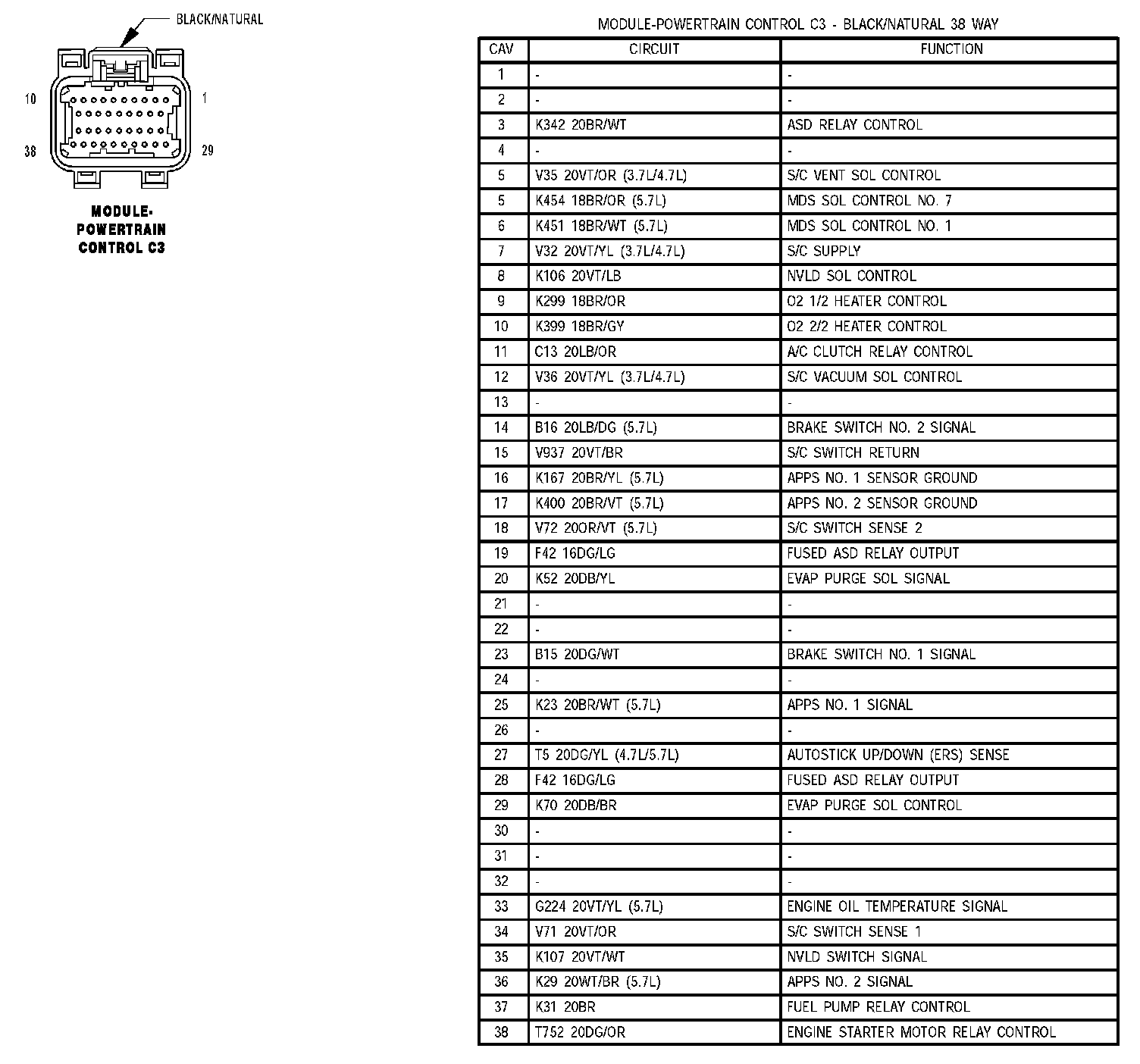

Module Powertrain Control C3:
