Home >> Jeep >> 2006 >> Commander 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

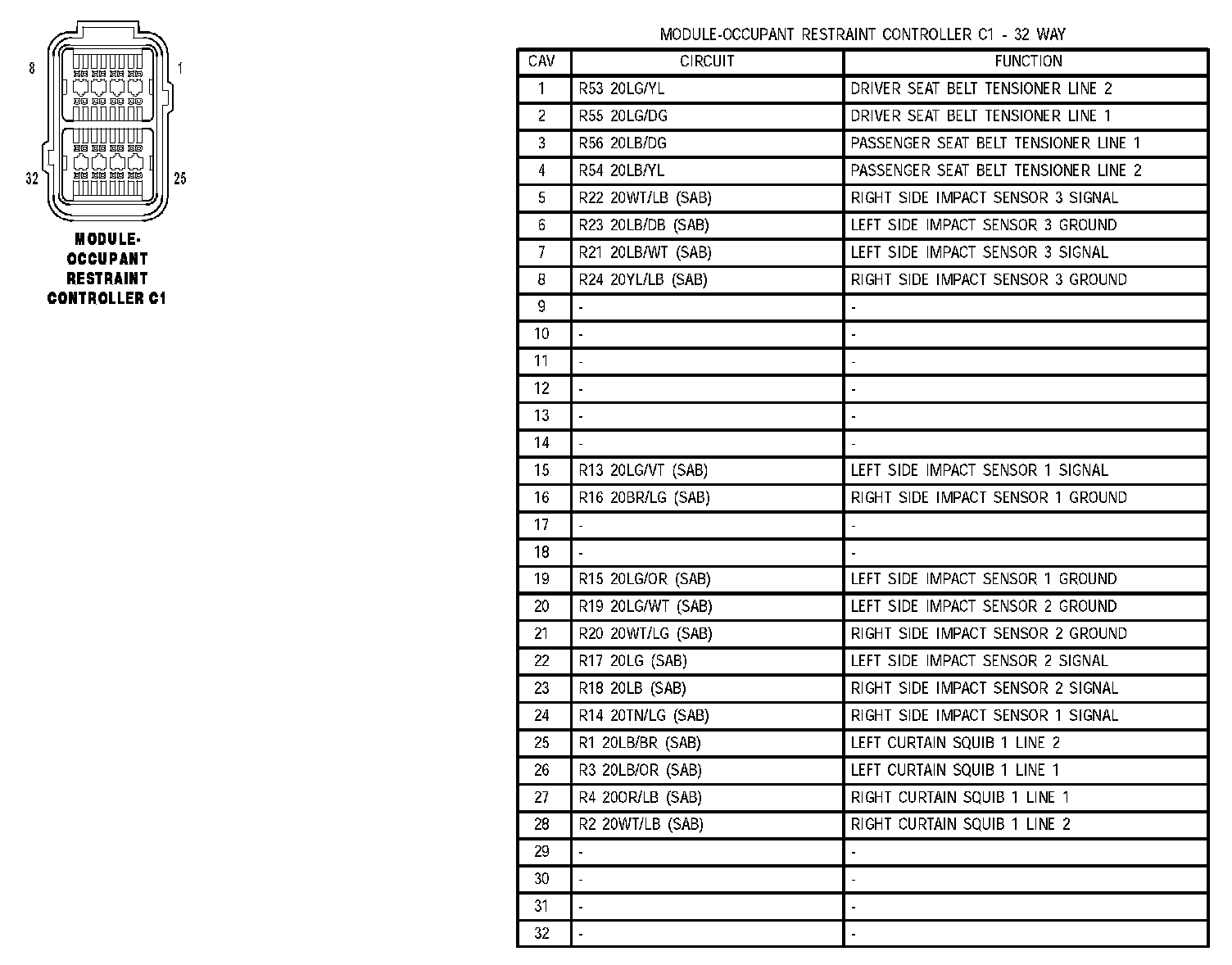

Module Occupant Restraint Controller C1:

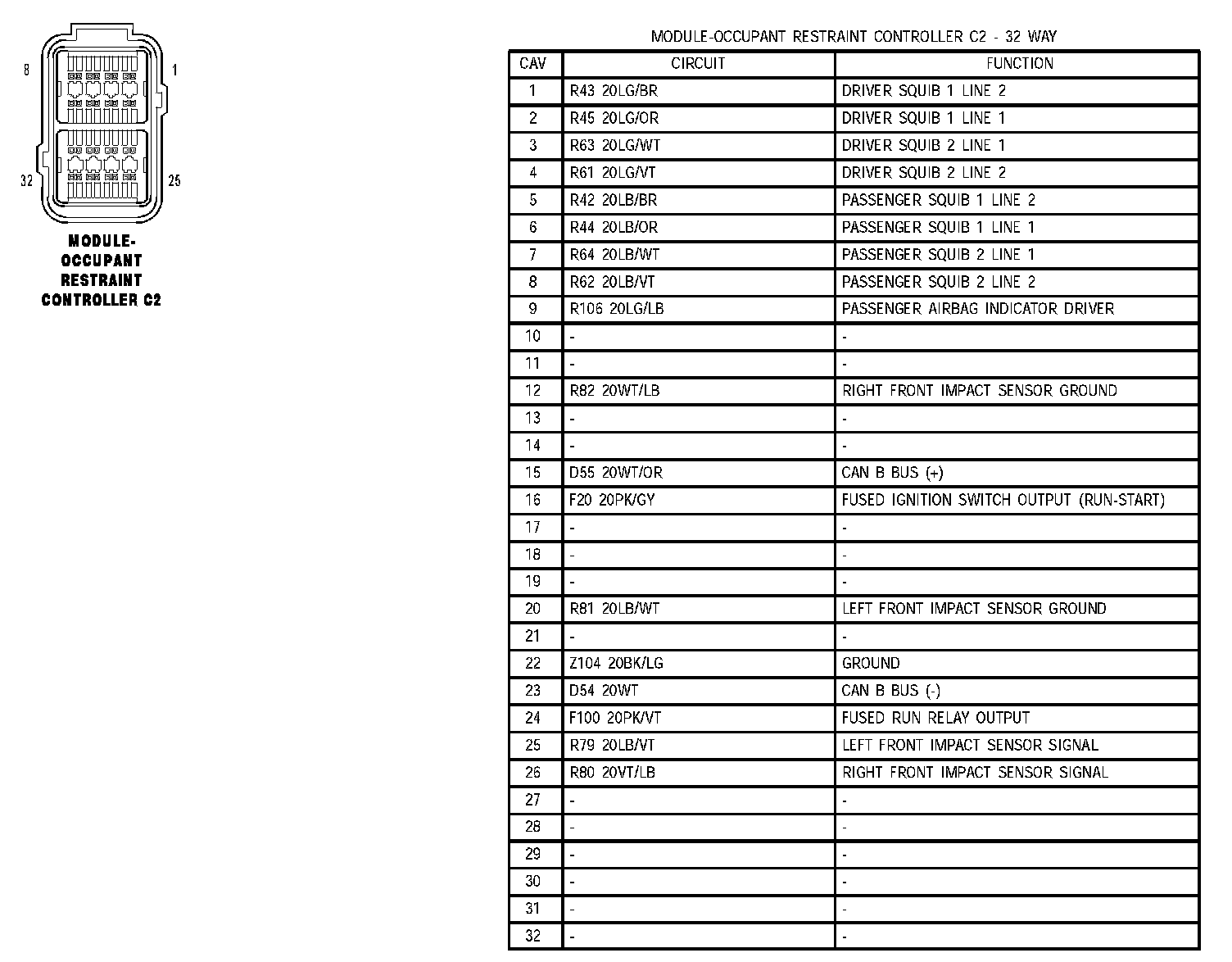

Module Occupant Restraint Controller C2:
