Connector Views

Module Powertrain Control C1:

Module Powertrain Control C2:

Module Powertrain Control C3:

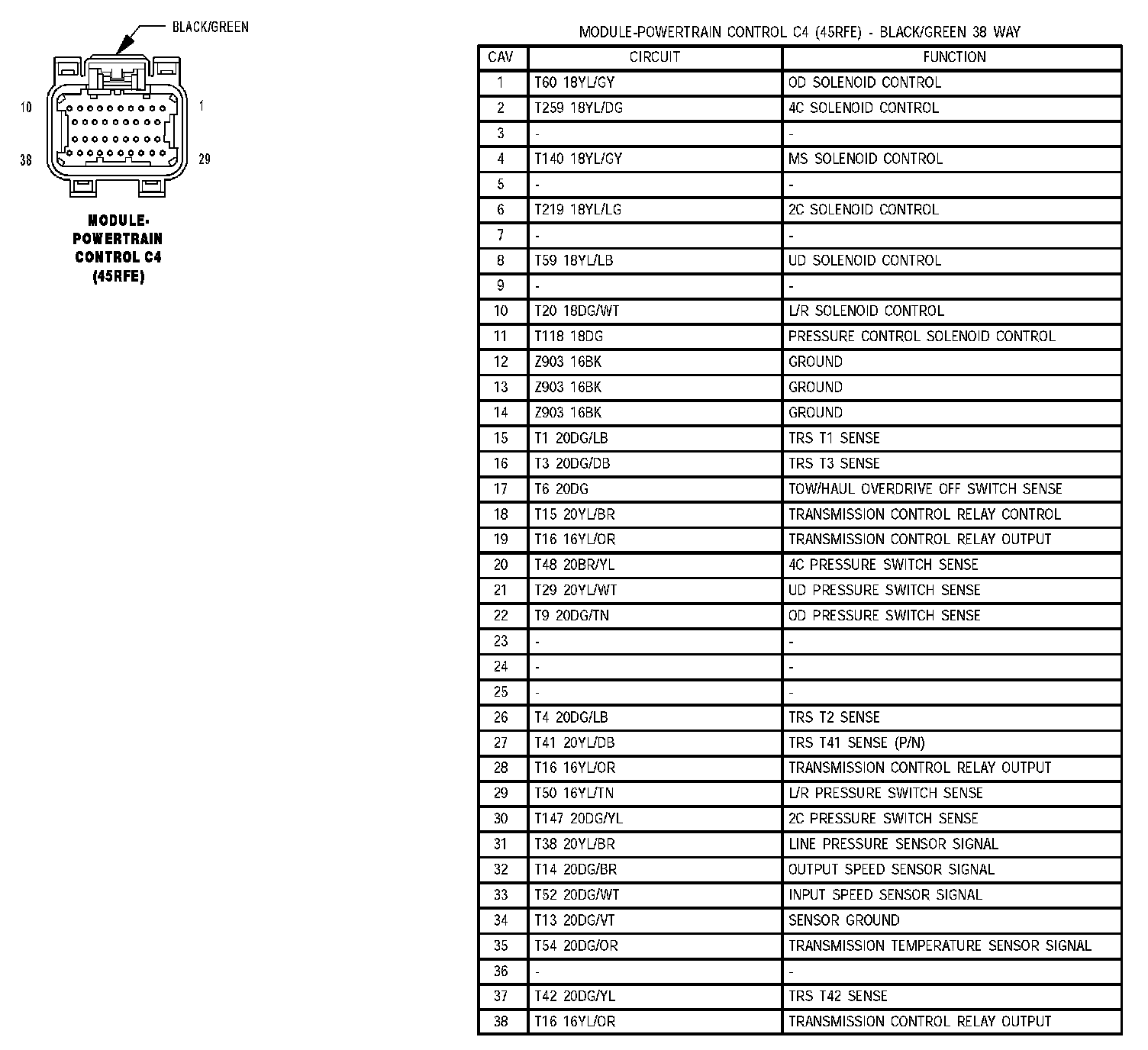

Module Powertrain Control C4 (45RFE):
