Home >> Jeep >> 2006 >> Commander 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Locations

Power Distribution Module: Locations

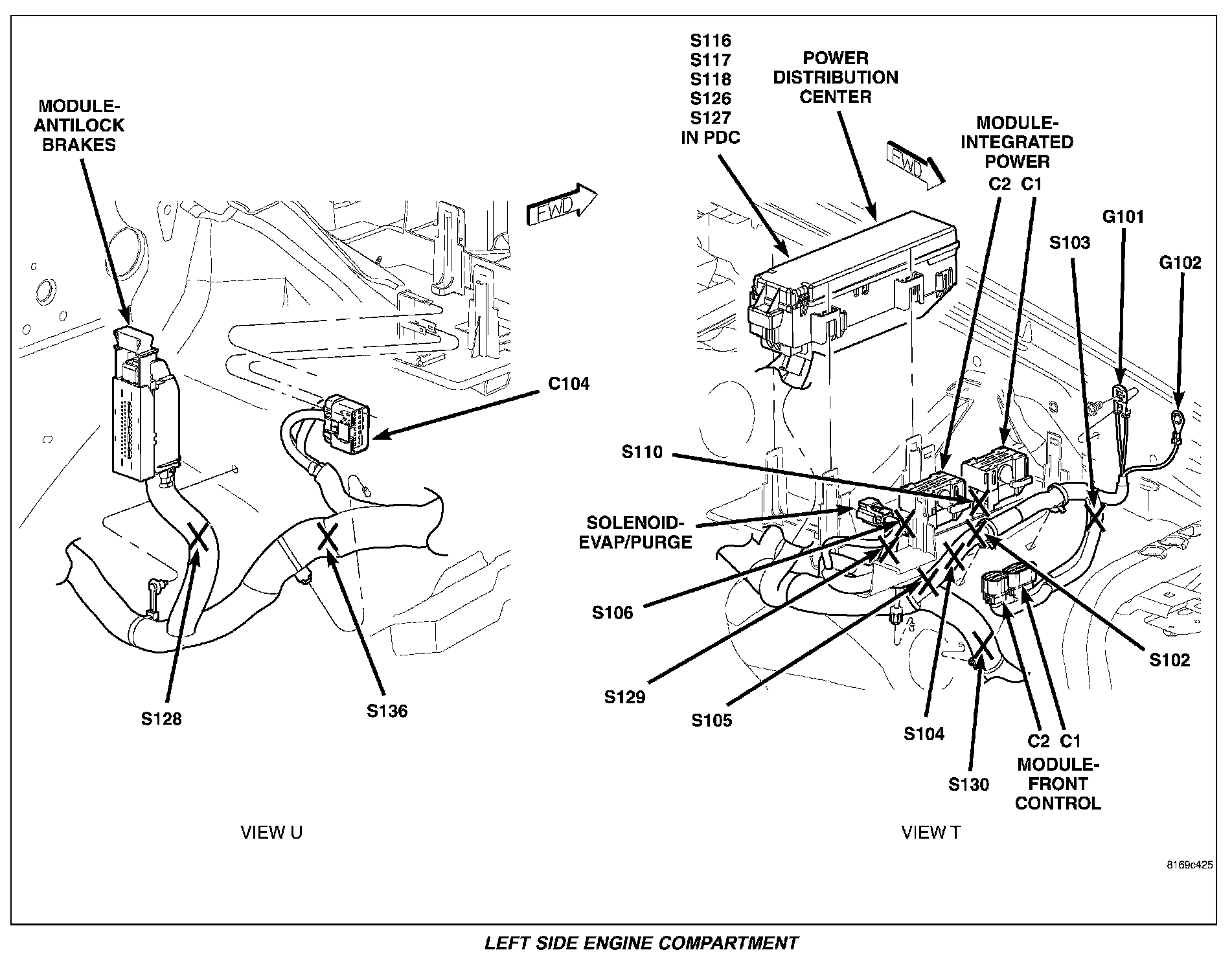

Left Side Engine Compartment:

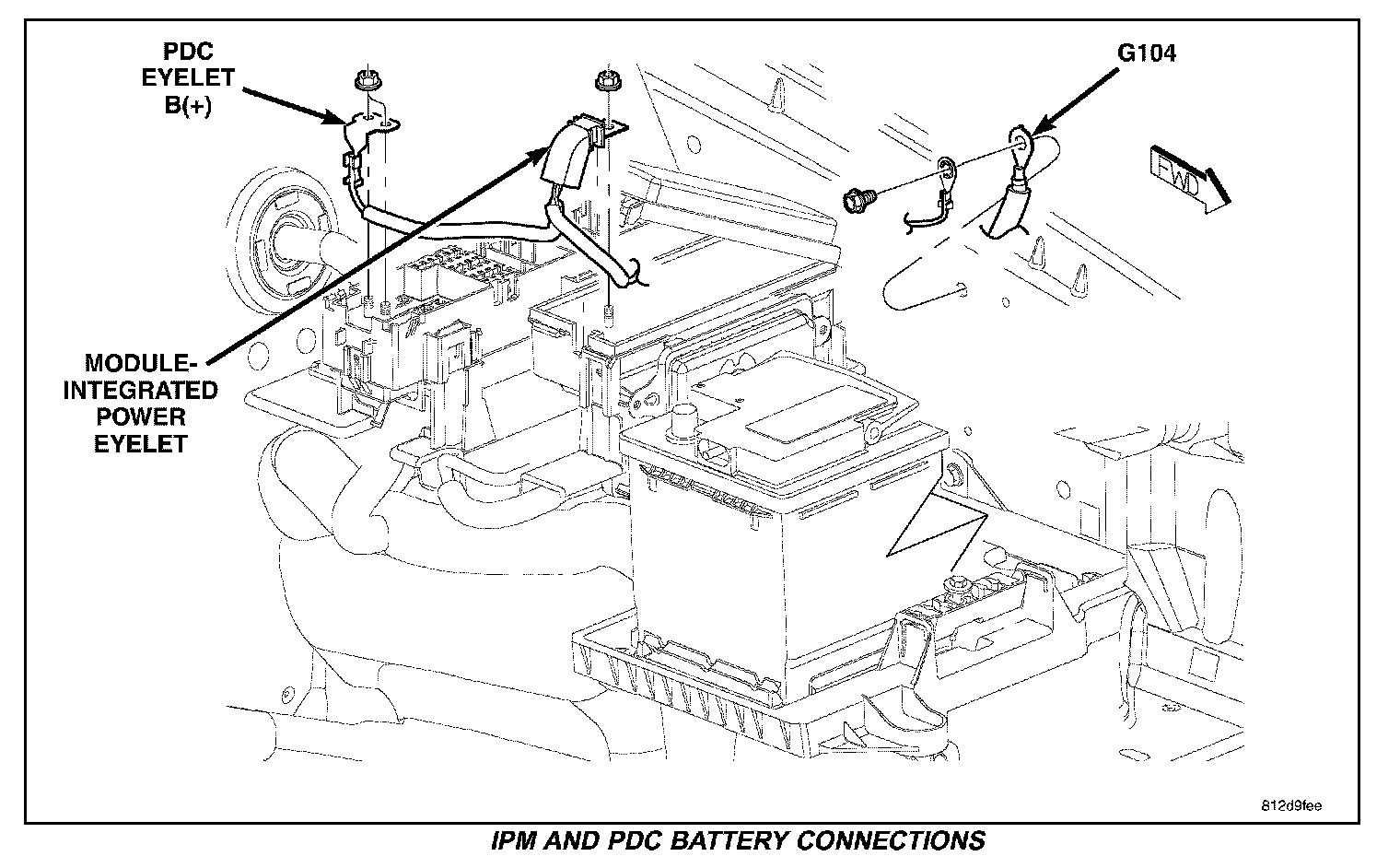

IPM And PDC Battery Connectors:
