Connector Locations

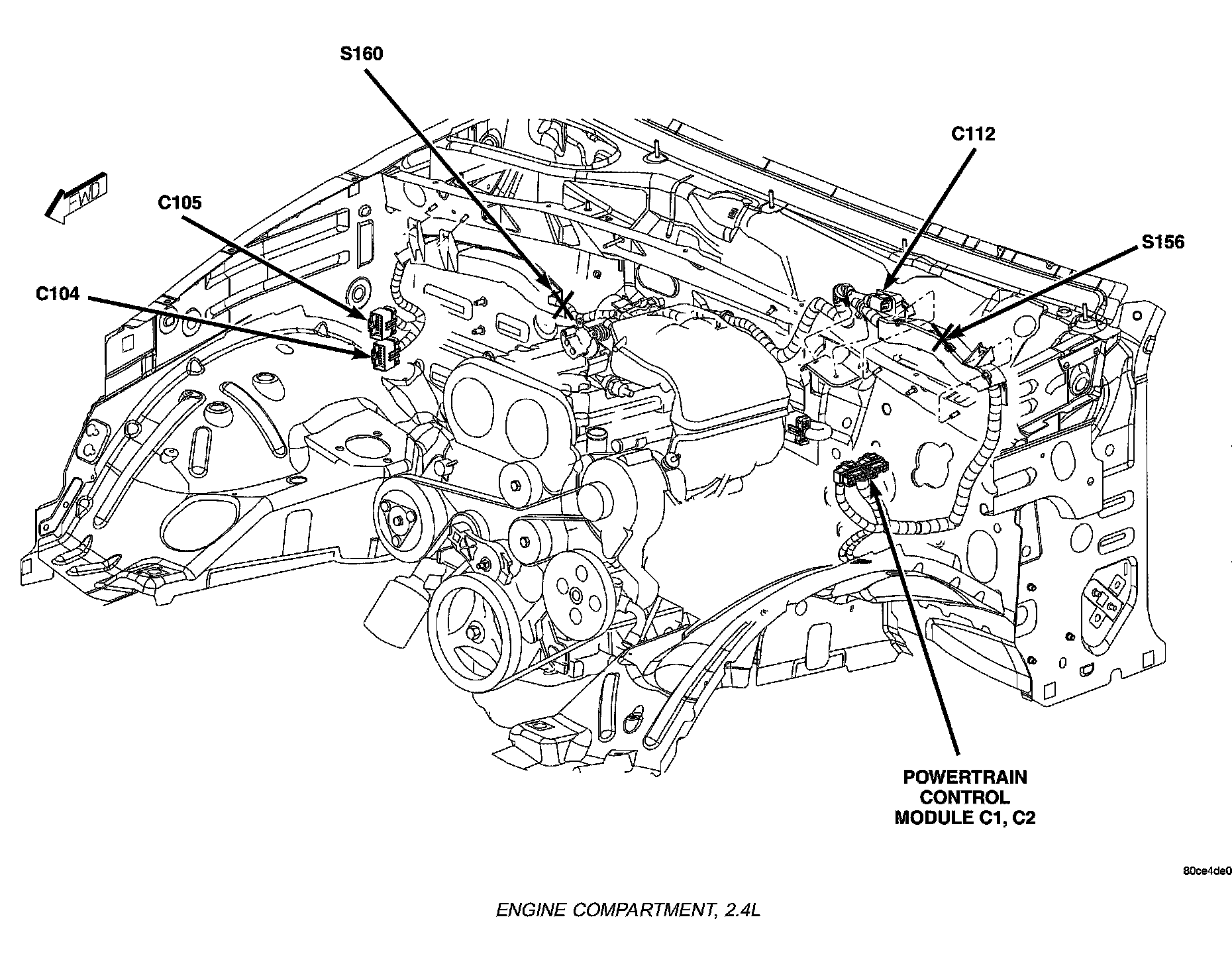

Engine Compartment, 2.4L:

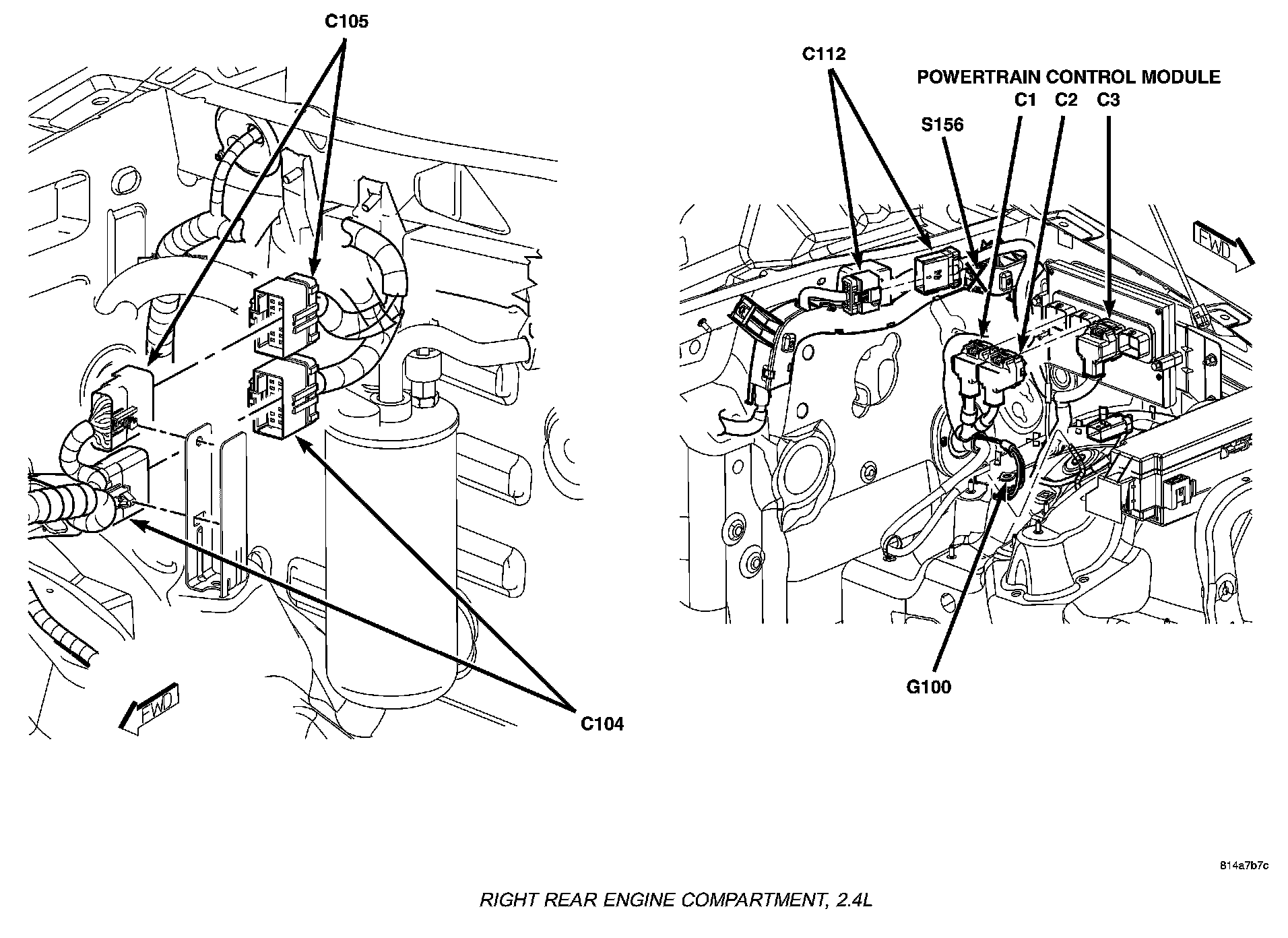

Right Rear Engine Compartment, 2.4L:

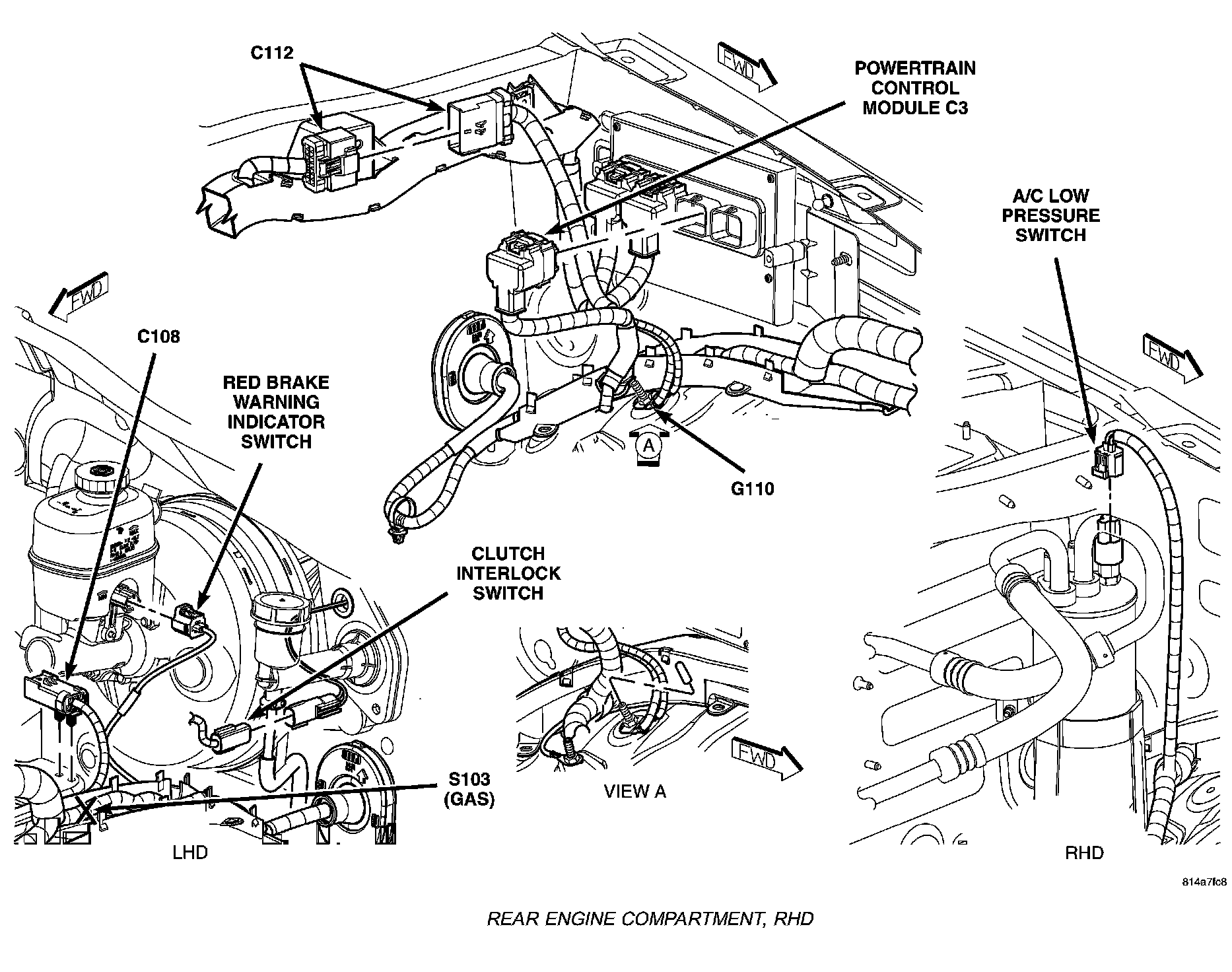

Rear Engine Compartment, RHD:
