Remote Keyless Entry (RKE) Module Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the Junction Block (JB).

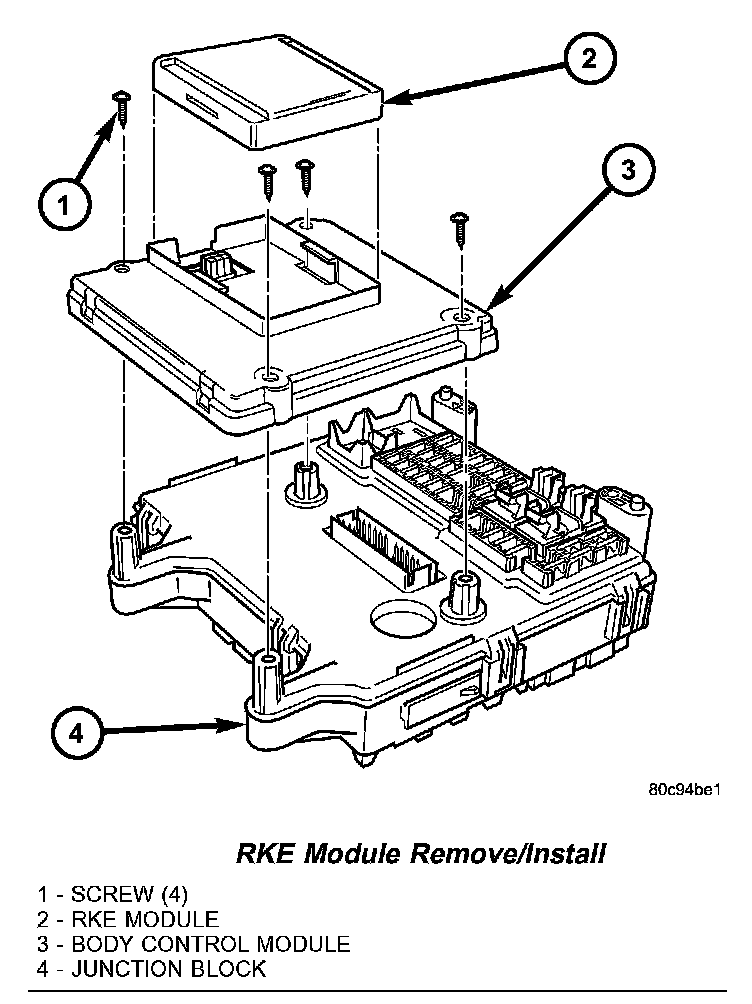

RKE Module Remove/Install:

3. Remove Remote Keyless Entry module from Body Control Module.

INSTALLATION
1. Install Remote Keyless Entry module to Body Control Module.
2. Install Junction Block (JB).
3. Connect the battery negative cable.
