Home >> Jeep >> 2004 >> Wrangler L4-2.4L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

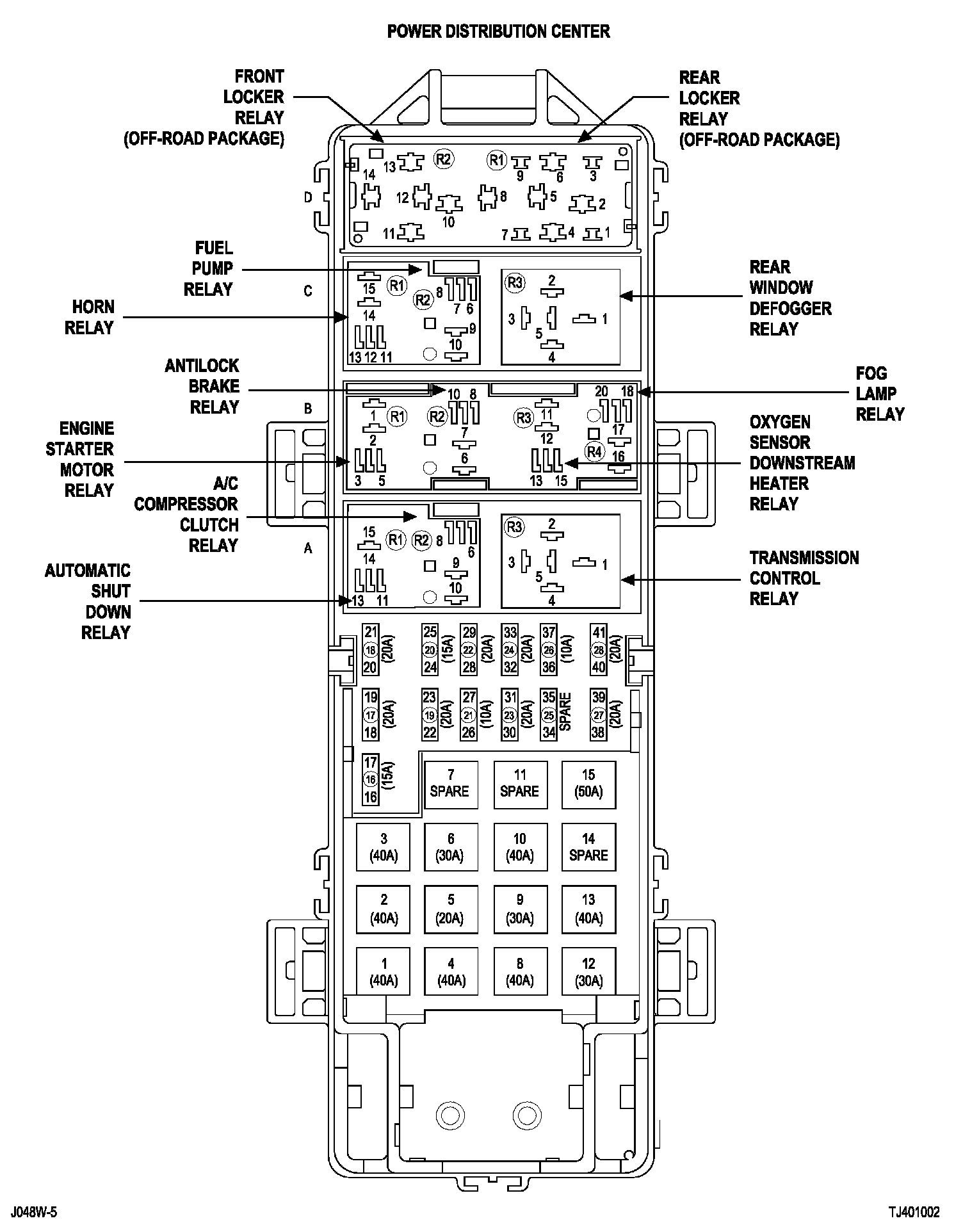

Power Distribution Center:

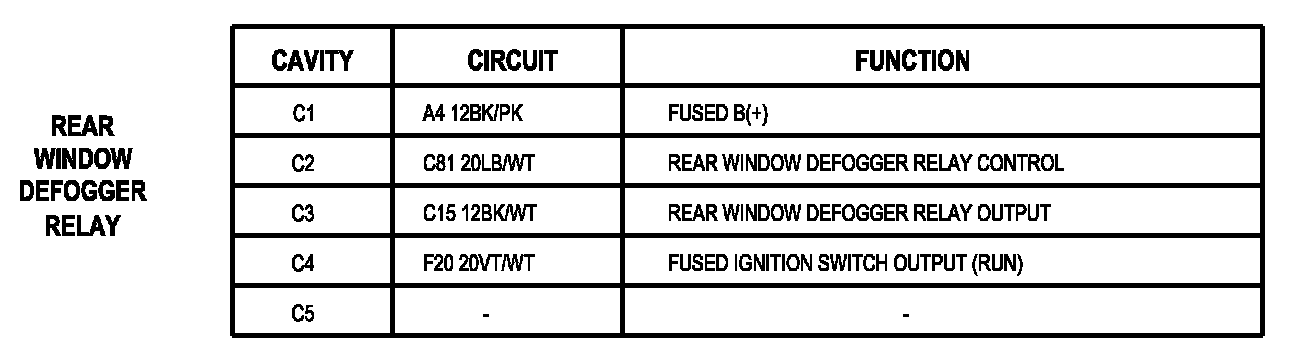

Rear Window Defogger Relay:
