Connector Locations

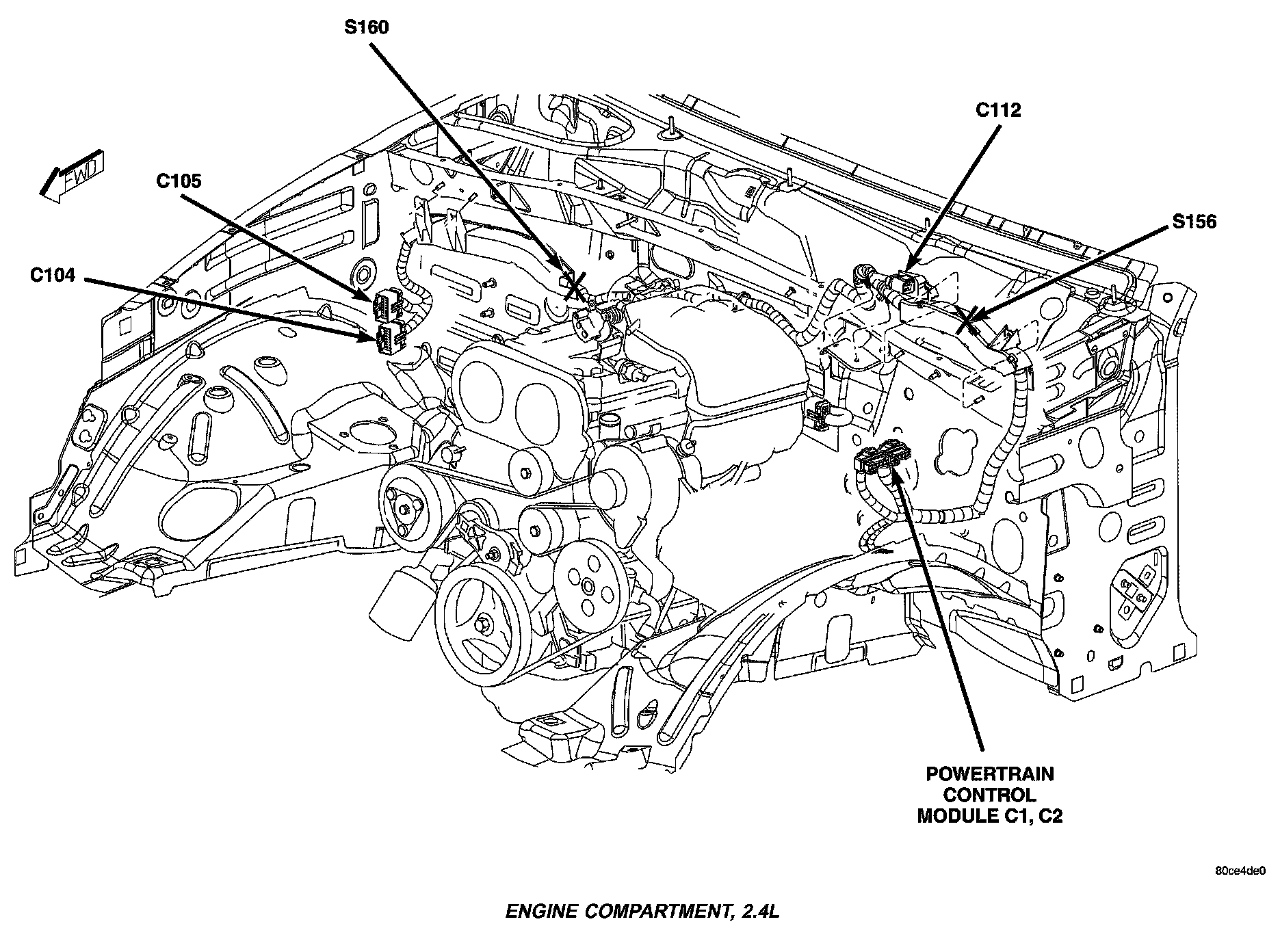

Engine Compartment (2.4L):

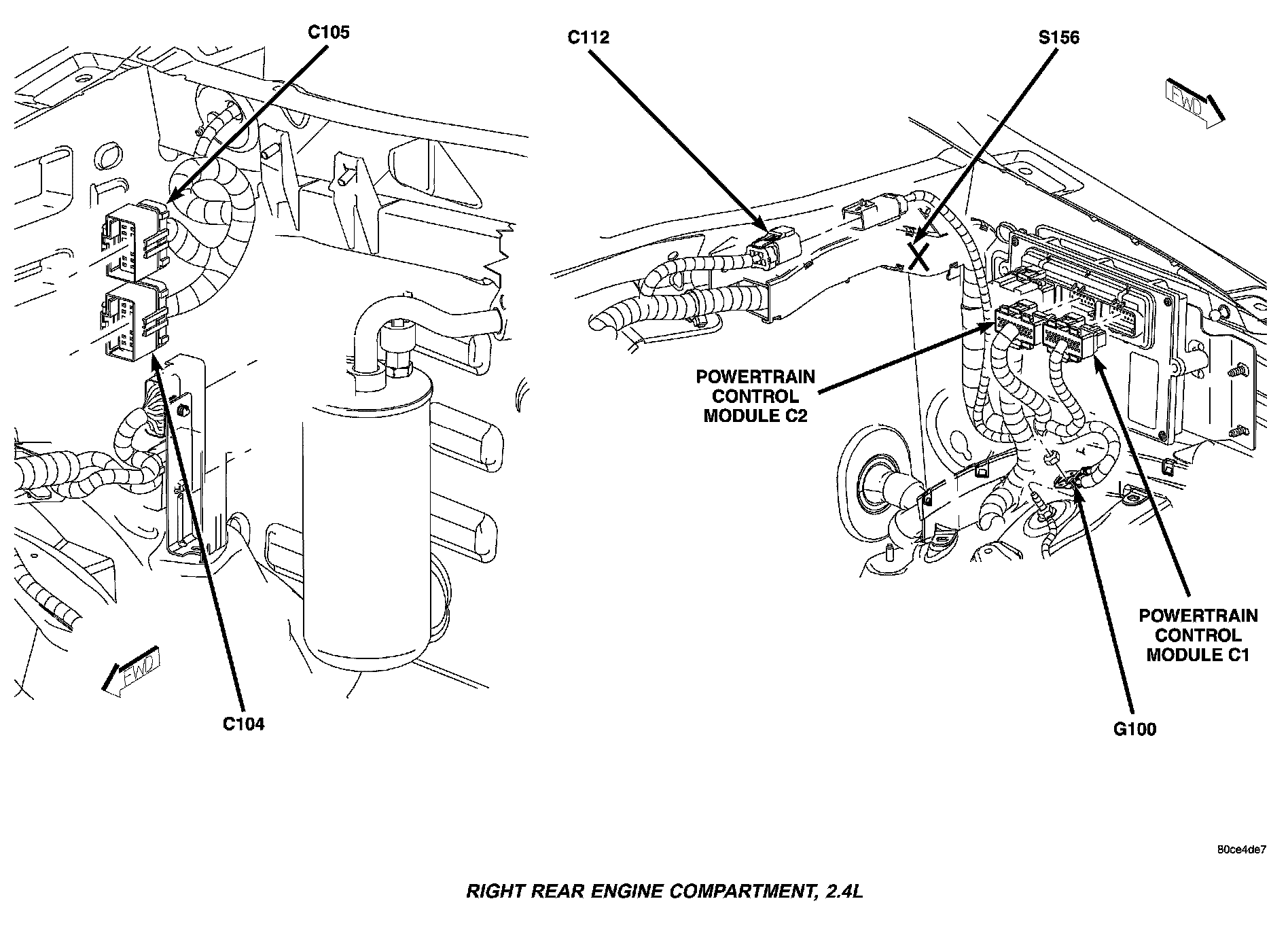

Right Rear Engine Compartment (2.4L):

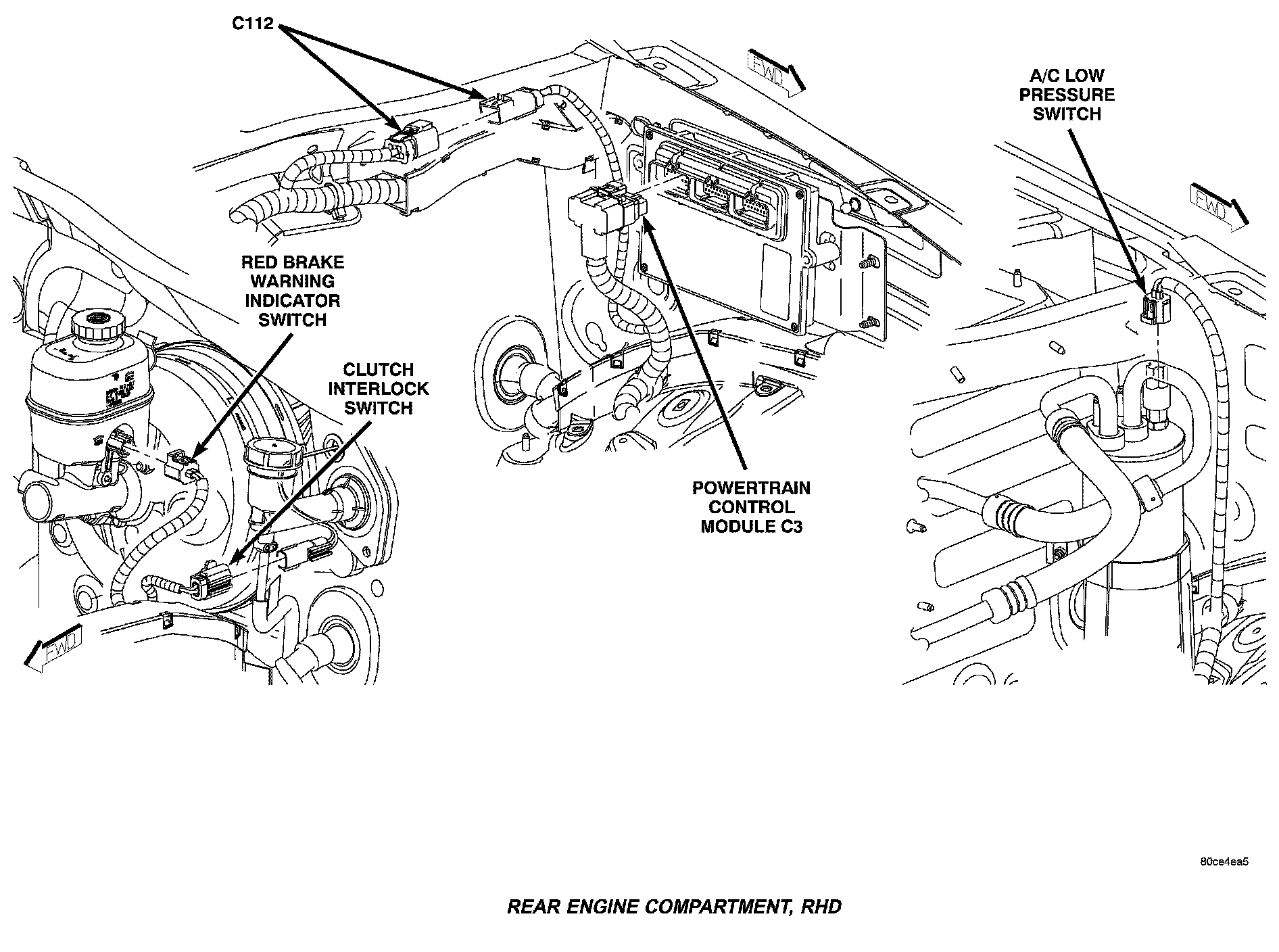

Rear Engine Compartment (RHD):
