Jeep
>>
2004
>>
Liberty 2WD L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Alignment Control Module
Headlamp Alignment Control Module

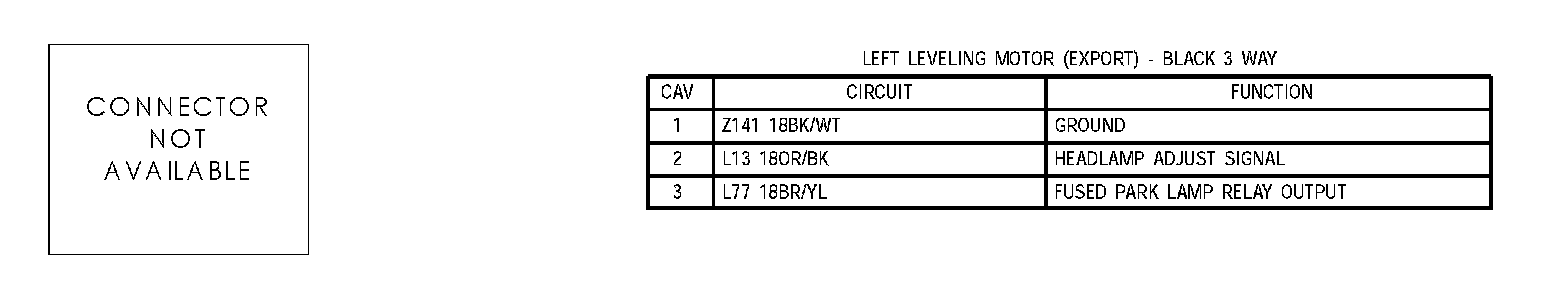

Left Leveling Motor (Export):

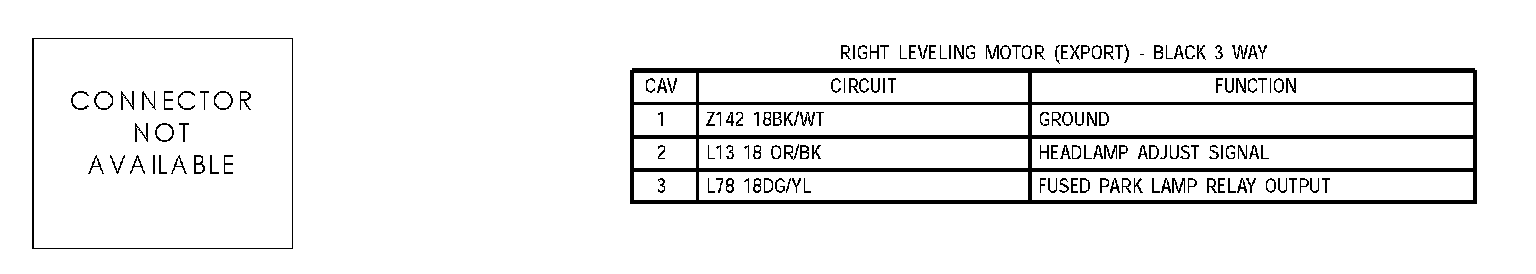

Right Levelling Motor (Export):
