Connector Views
>>
Power Distribution Module
Power Distribution Module

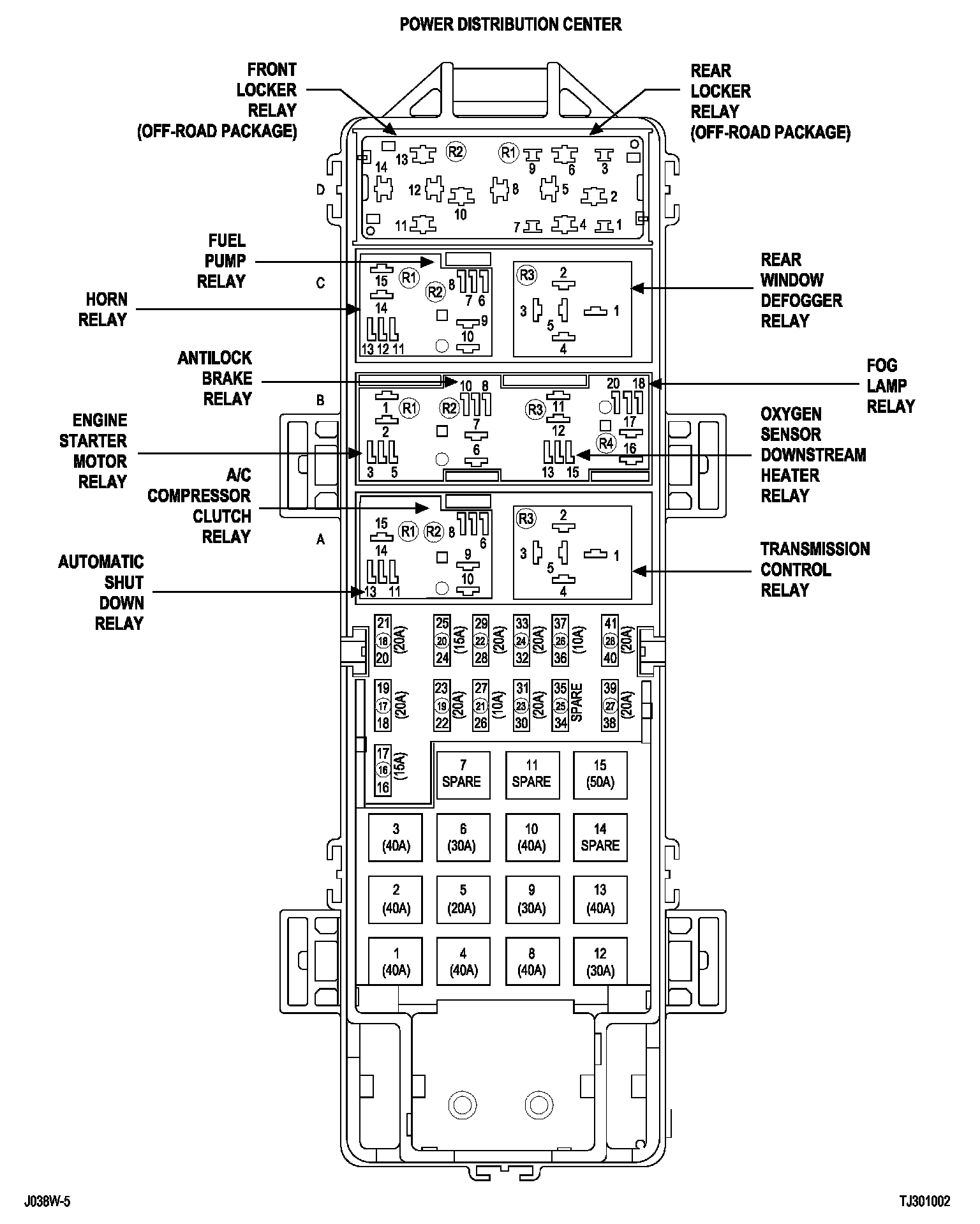

8w-10-2 Power Distribution Center:

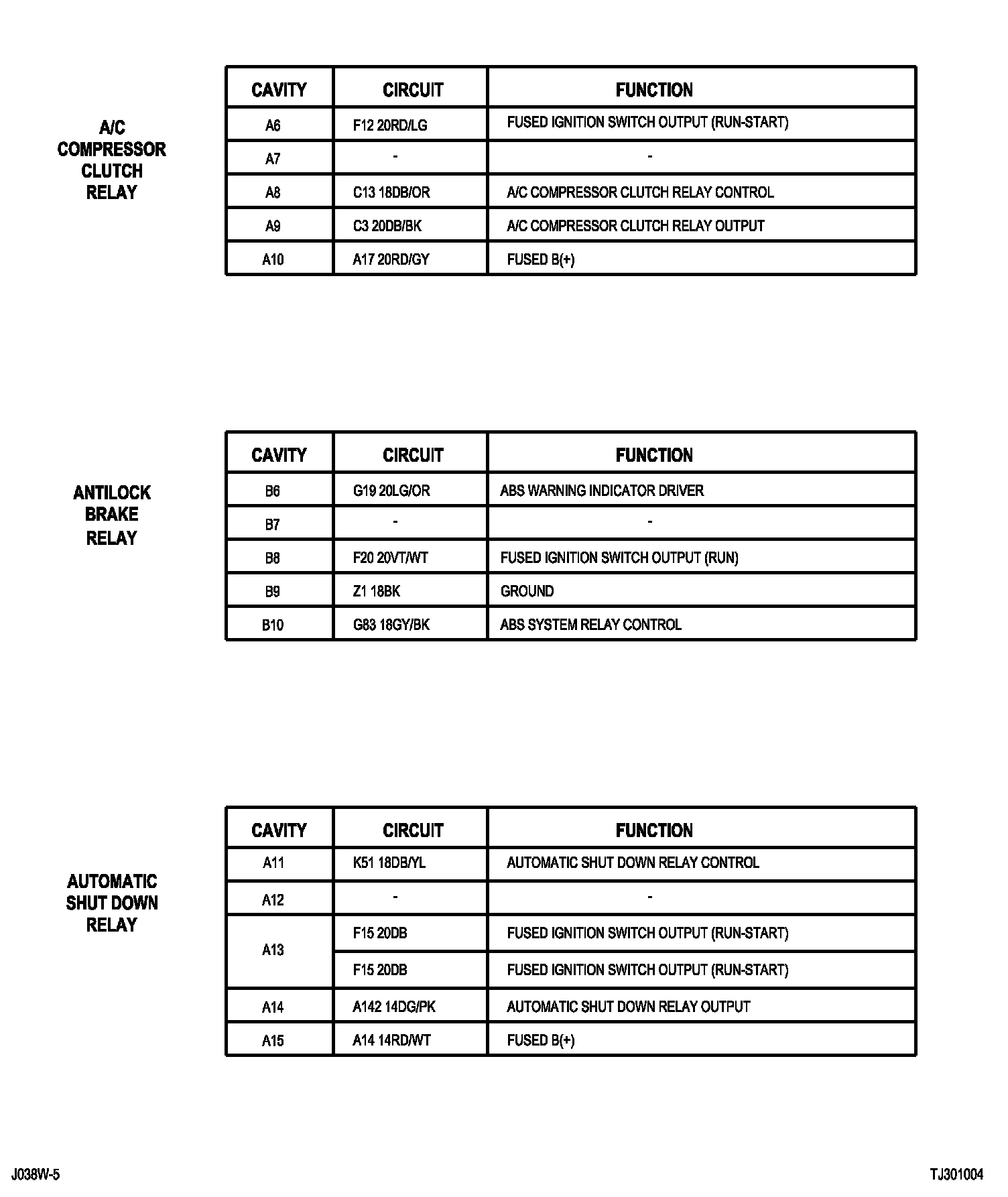

8w-10-4:

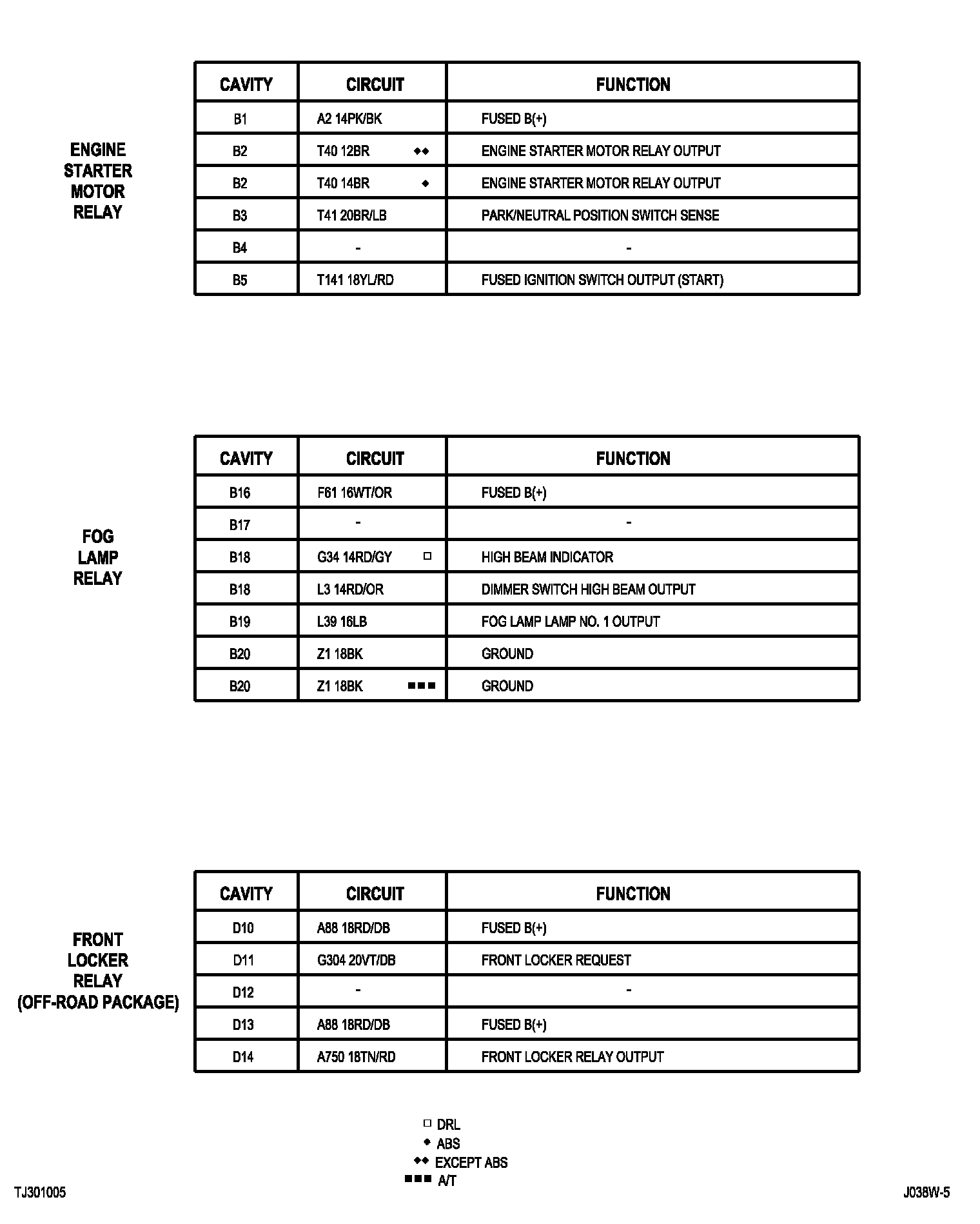

8w-10-5:

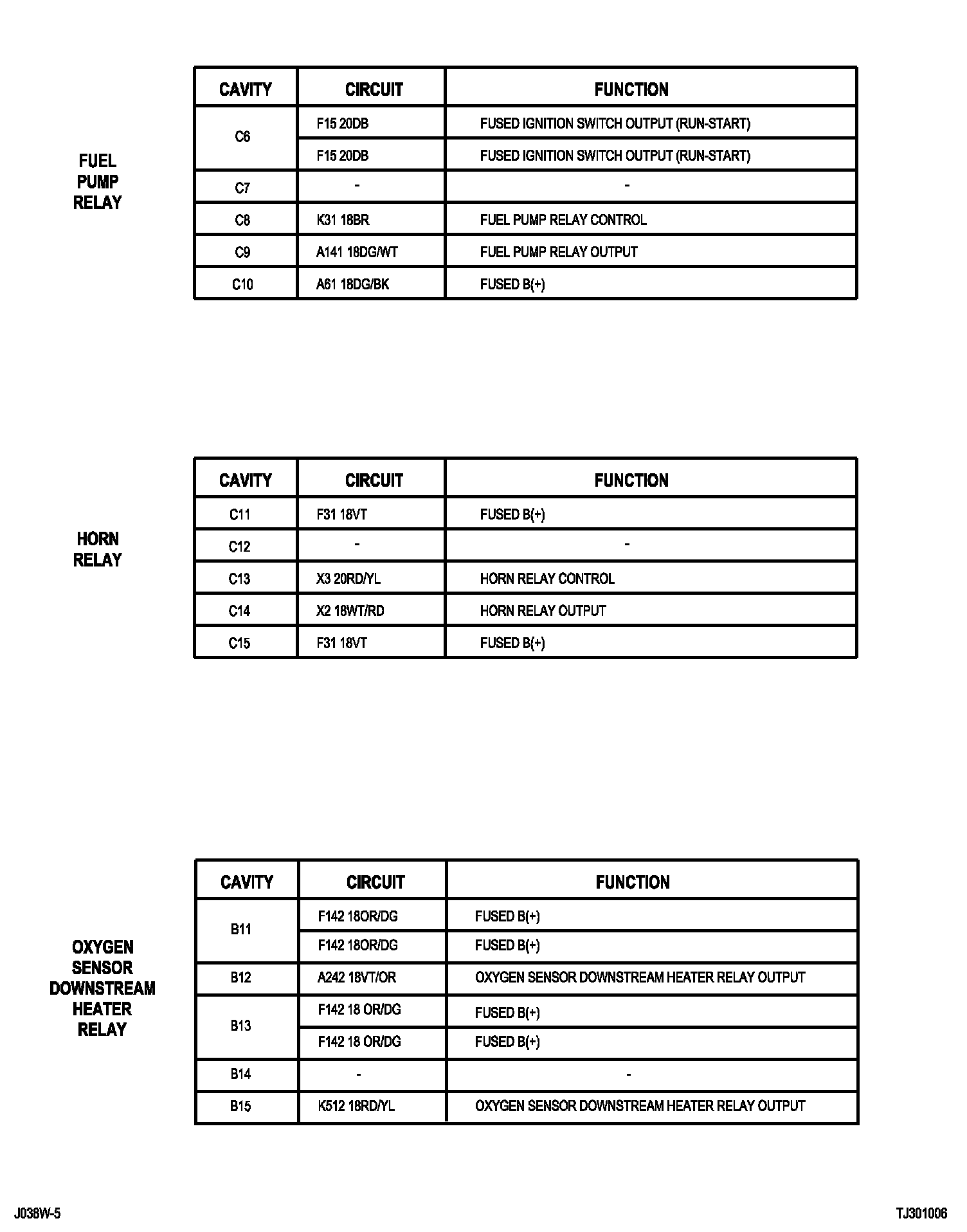

8w-10-6:

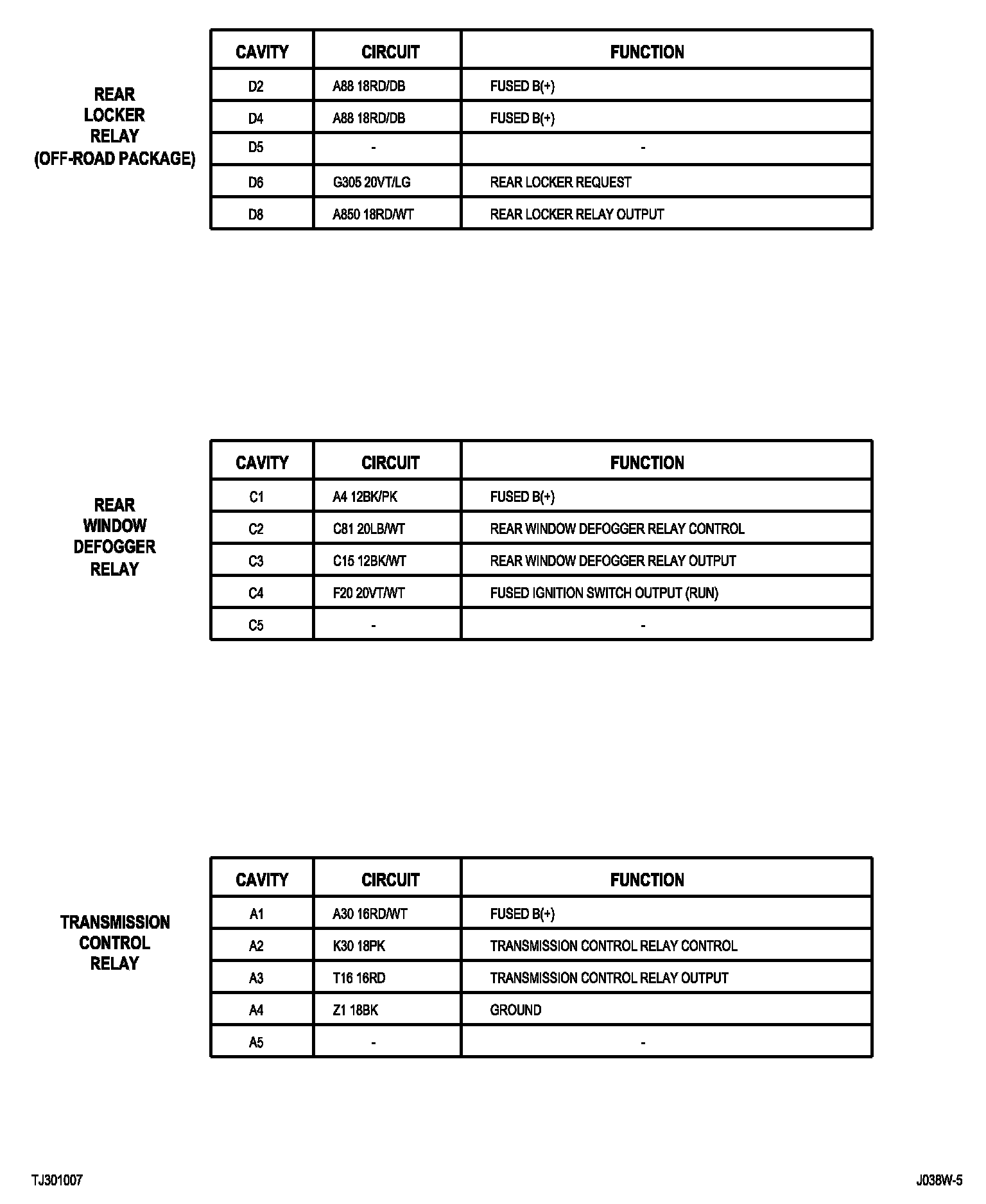

8w-10-7:
