Home >> Jeep >> 2003 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Position Sensor/Switch, Differential Lock

Position Sensor/Switch, Differential Lock

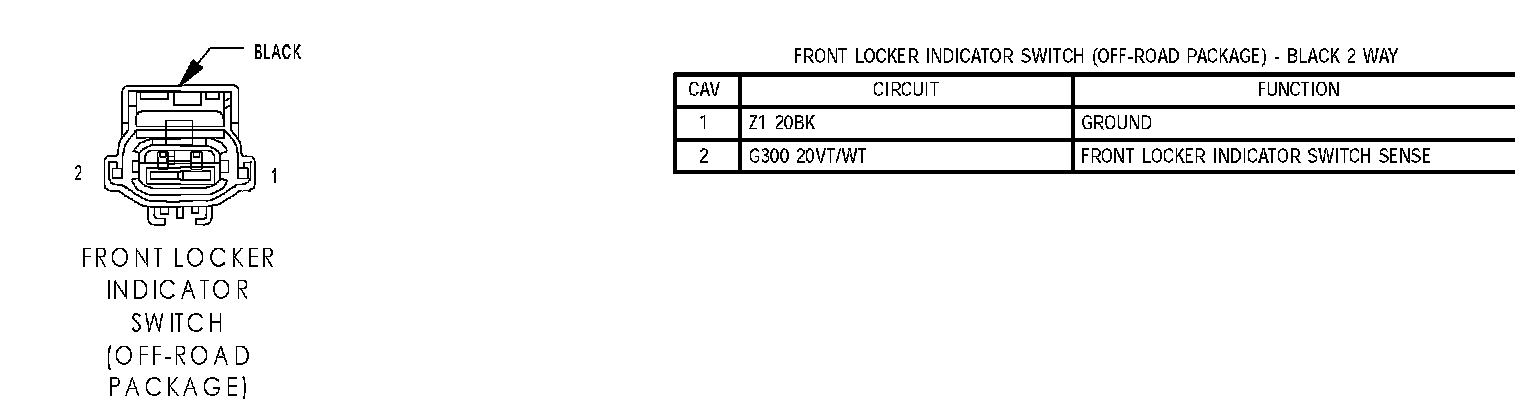

Front Locker Indicator Switch (Off-Road Package):

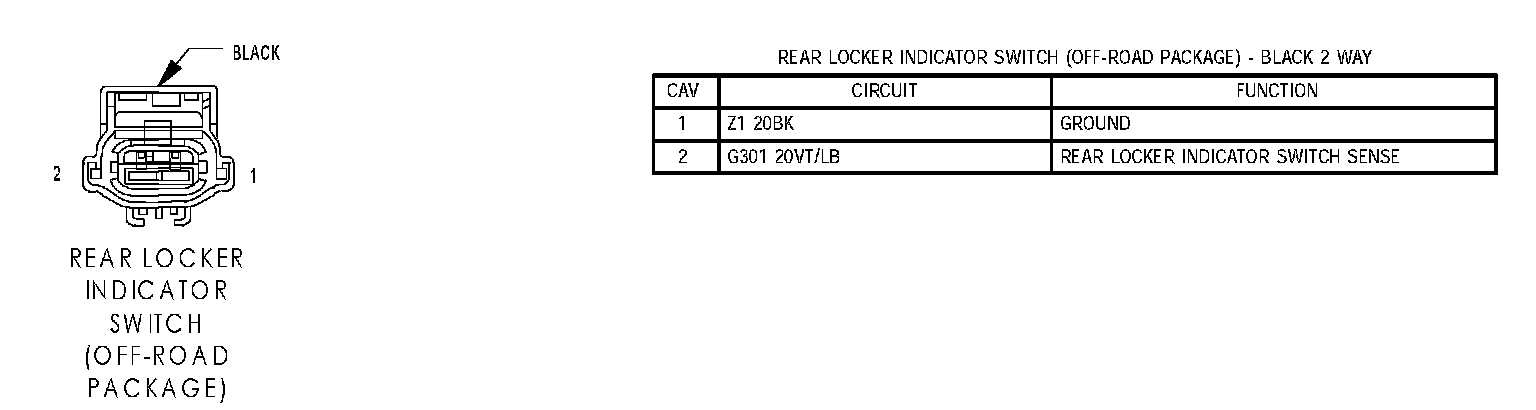

Rear Locker Indicator Switch (Off-Road Package):
