Liberty 4WD L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Transfer Case
>>
System Specifications
System Specifications

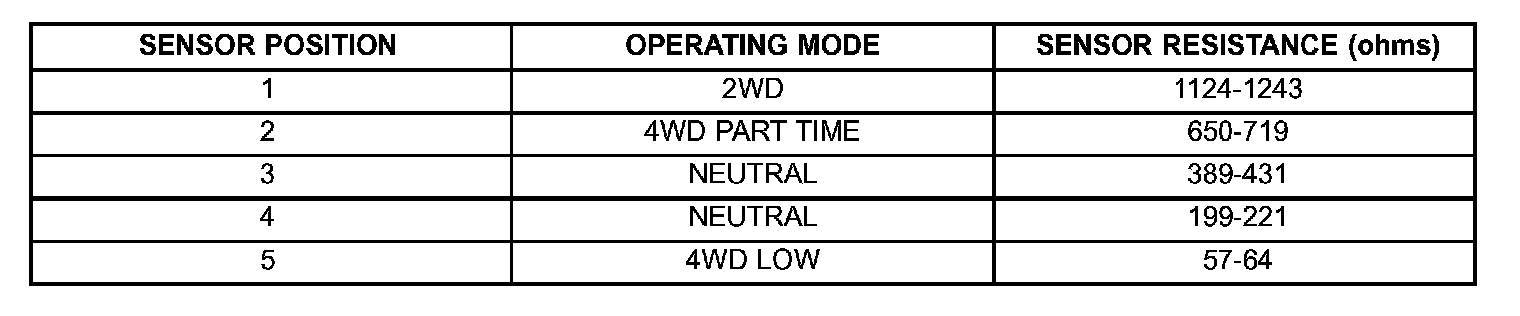

Operating Mode Versus Resistance Table / NV231 Transfer Case Position Sensor:

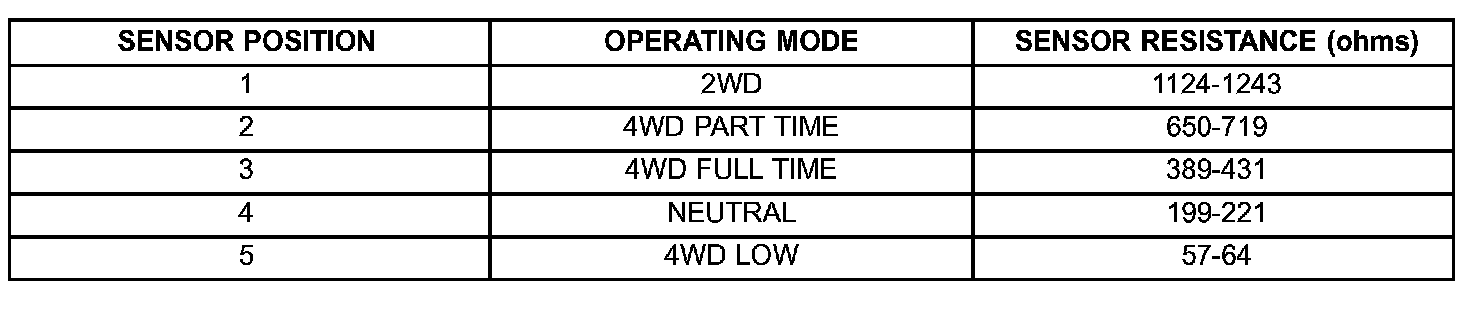

Operating Mode Versus Resistance Table / NV242 Transfer Case Position Sensor:
