Connector Views

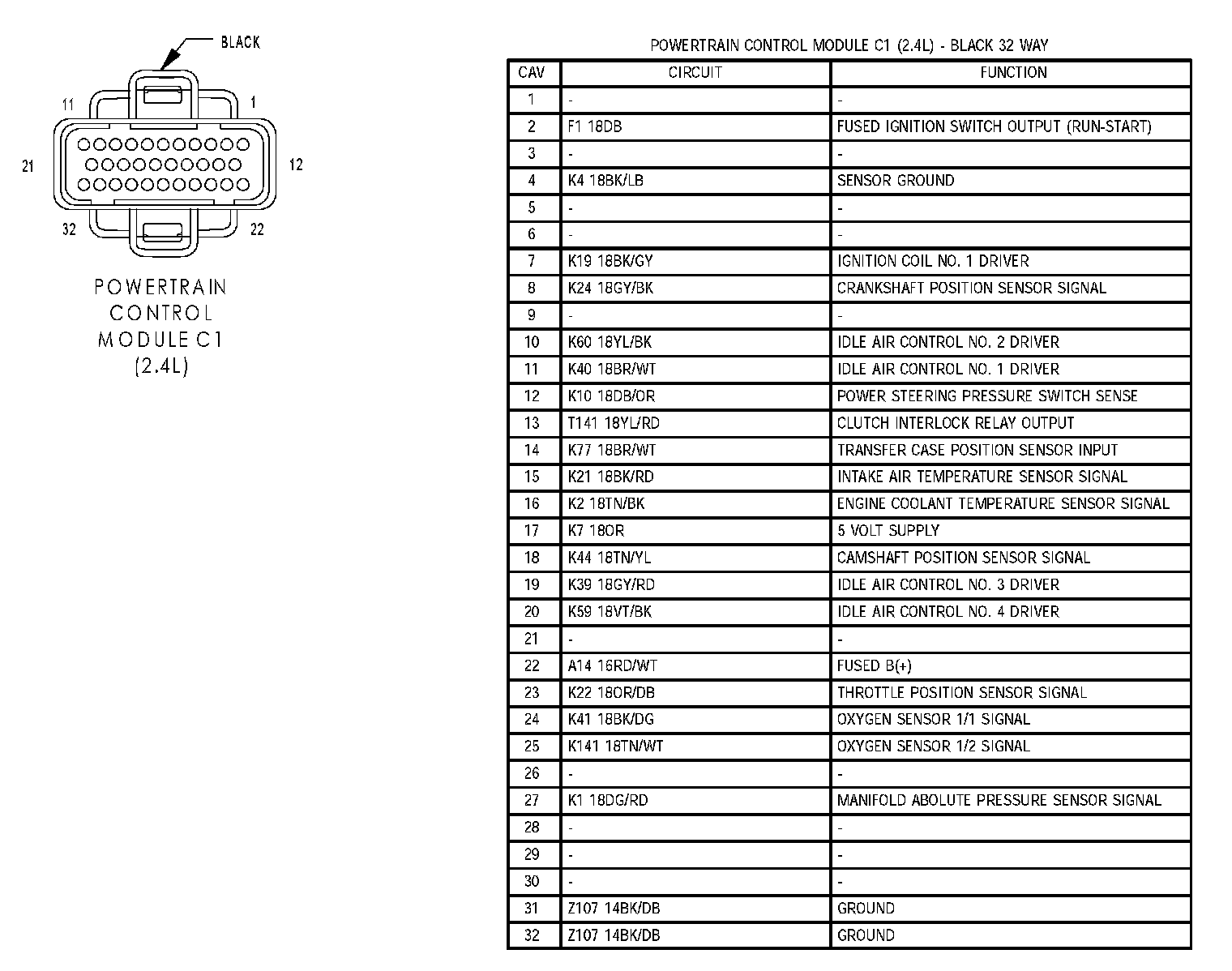

Powertrain Control Module C1 (2.4L):

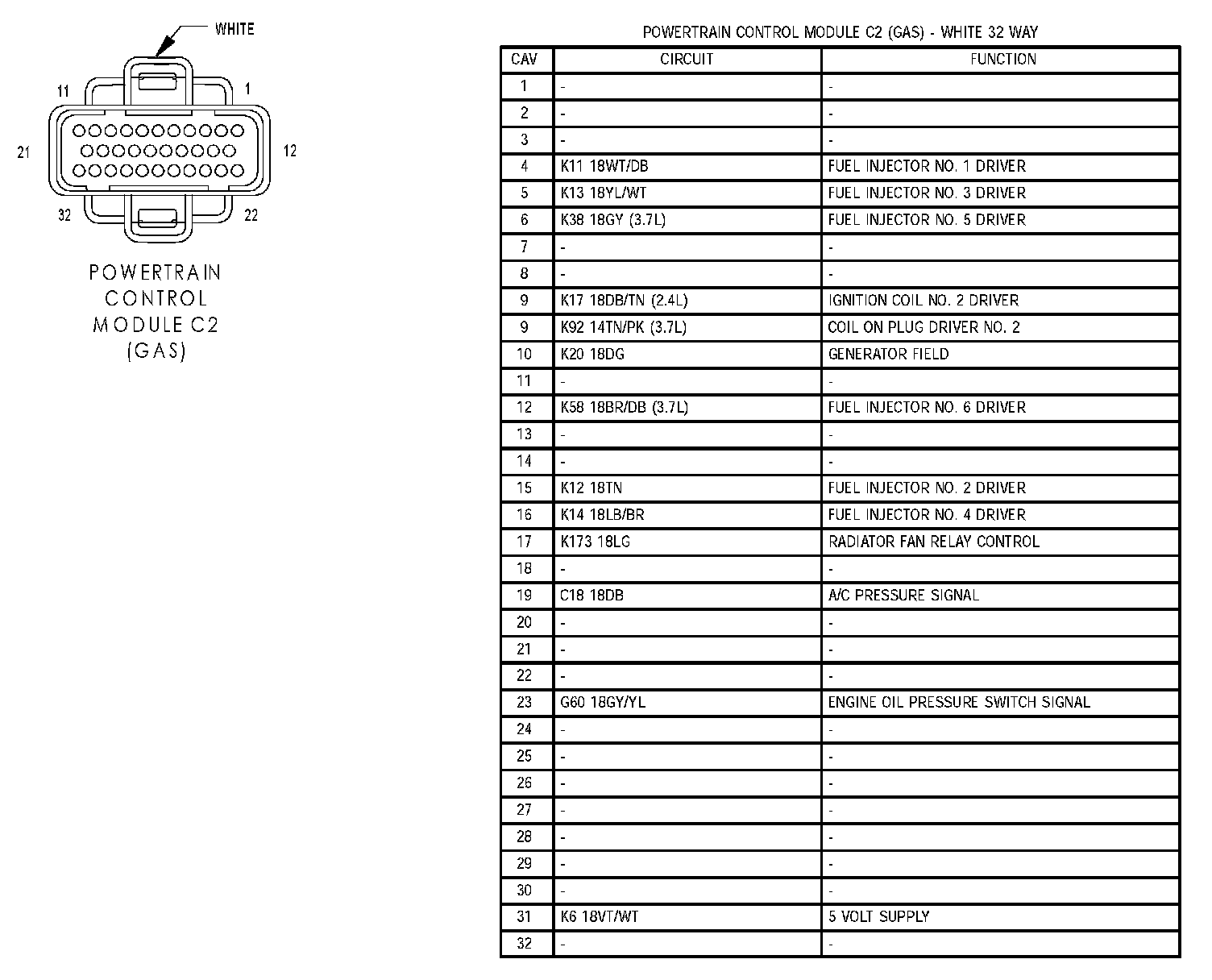

Powertrain Control Module C2:

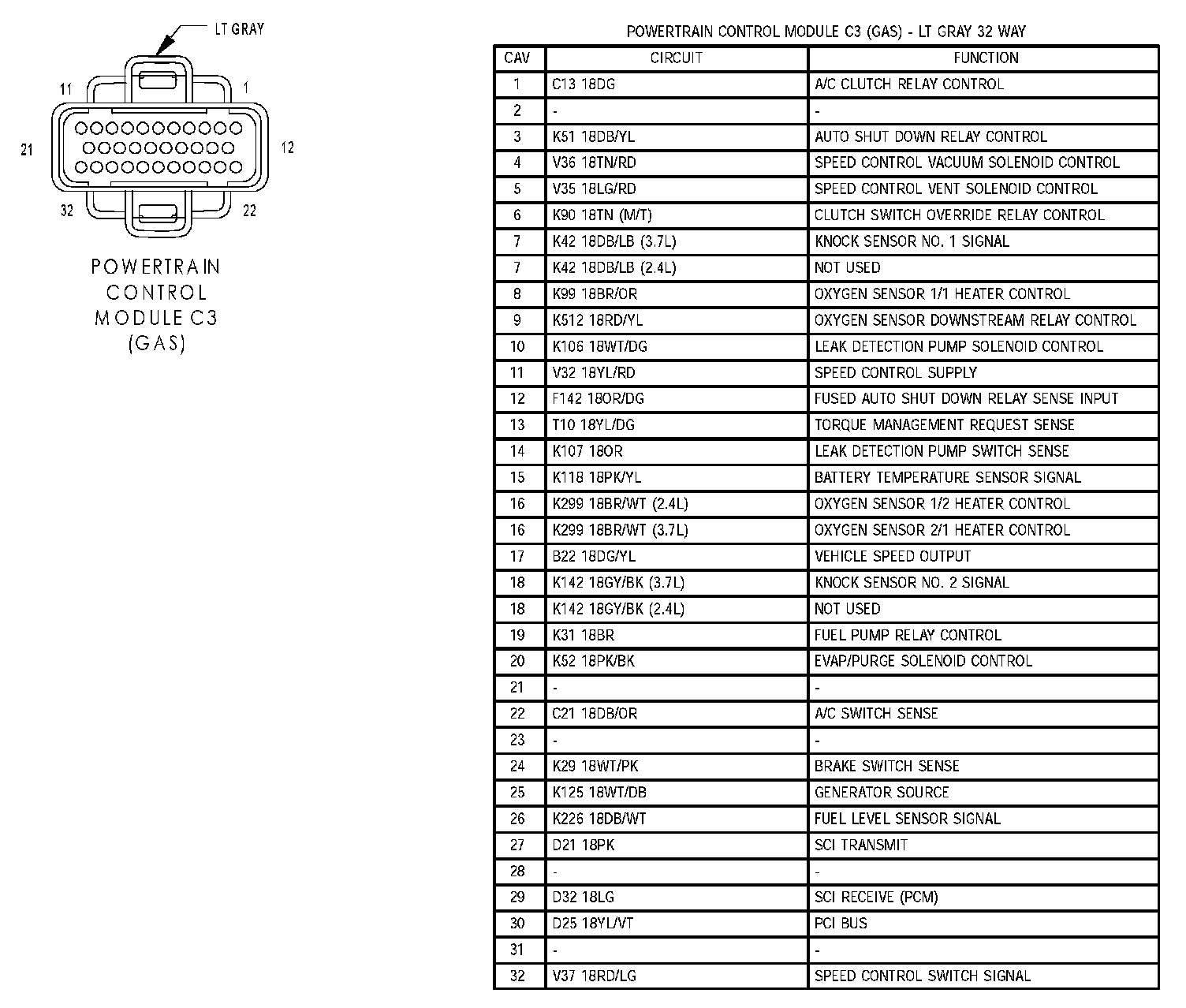

Powertrain Control Module C3:
