Home >> Jeep >> 2003 >> Liberty 2WD L4-2.4L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

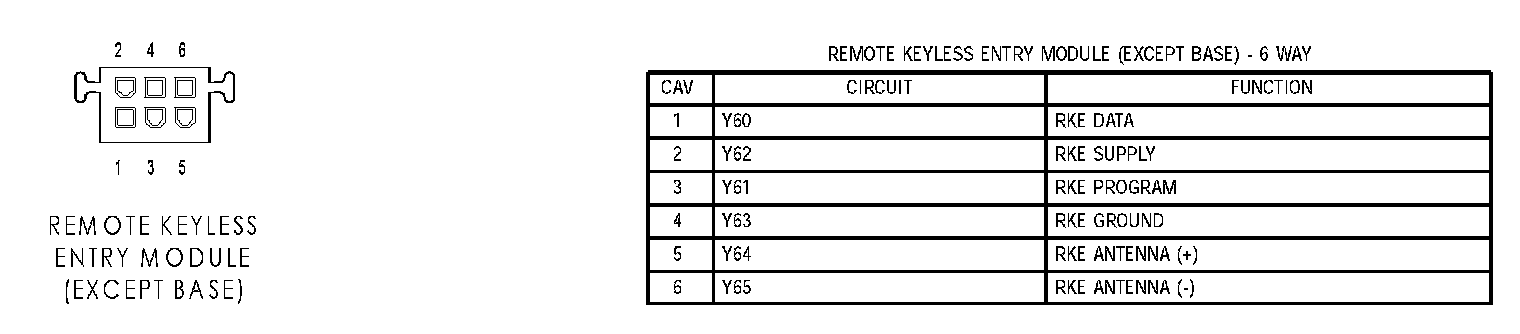

Remote Keyless Entry Module (Except Base):
