Home >> Jeep >> 2003 >> Liberty 2WD L4-2.4L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

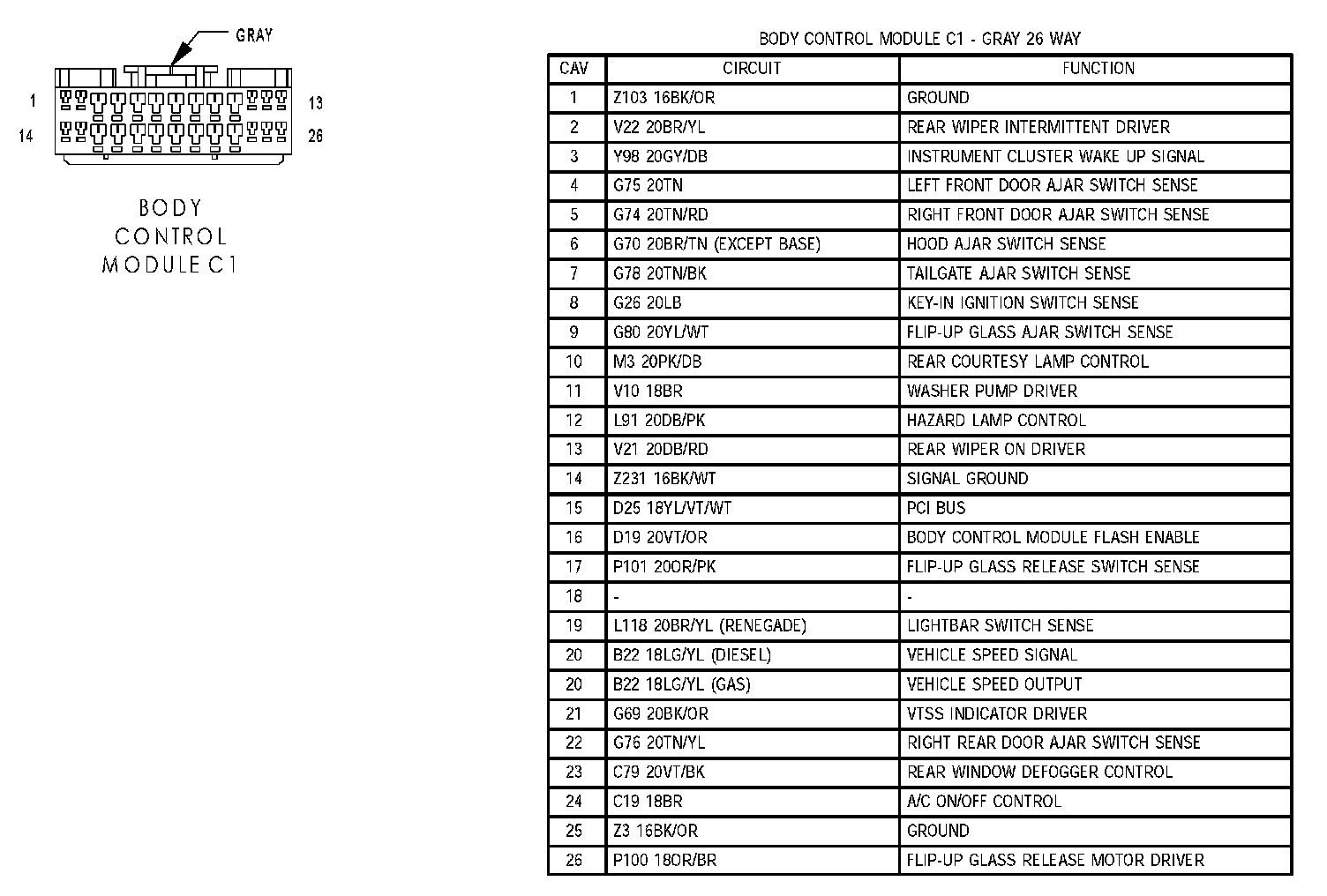

Body Control Module C1:

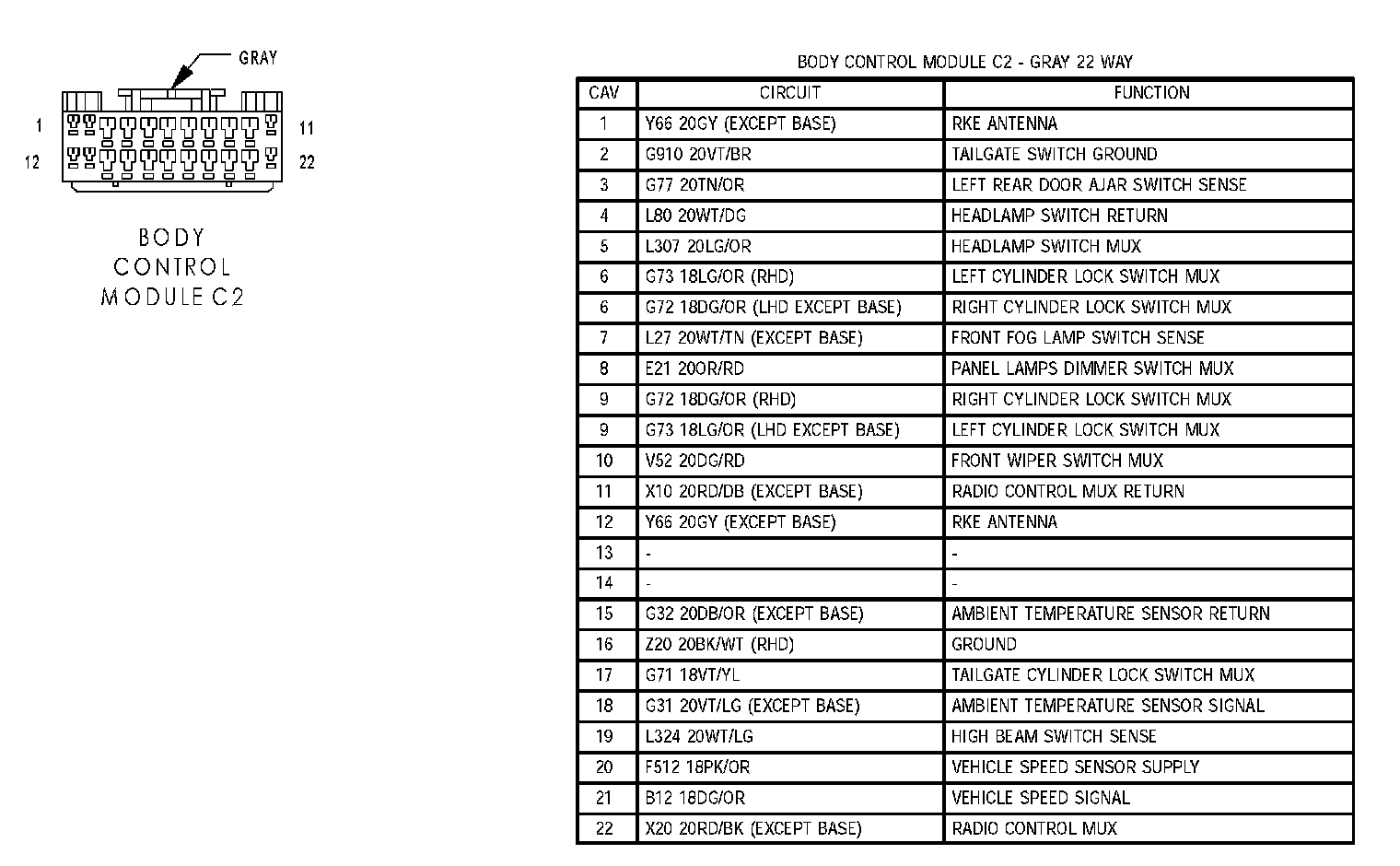

Body Control Module C2:

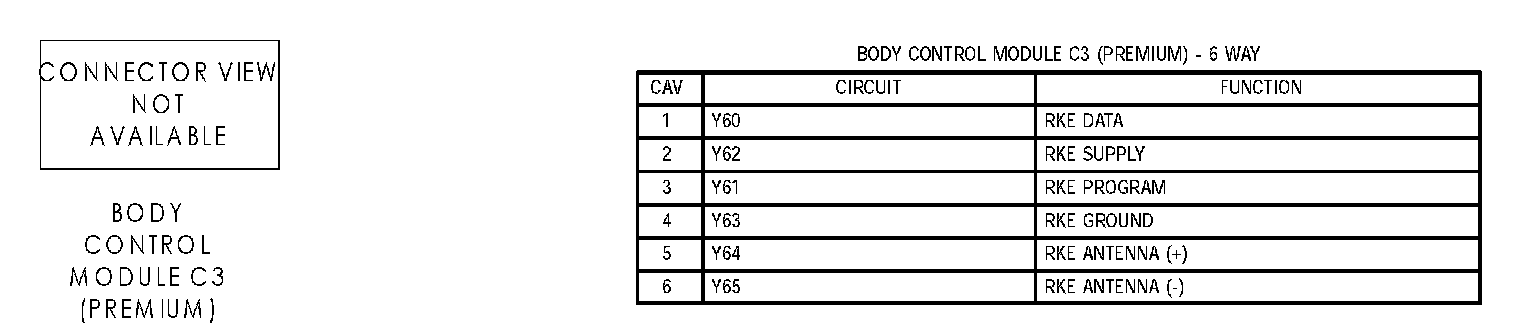

Body Control Module C3 (Premium):
