Home >> Jeep >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Locations

Power Distribution Module: Locations

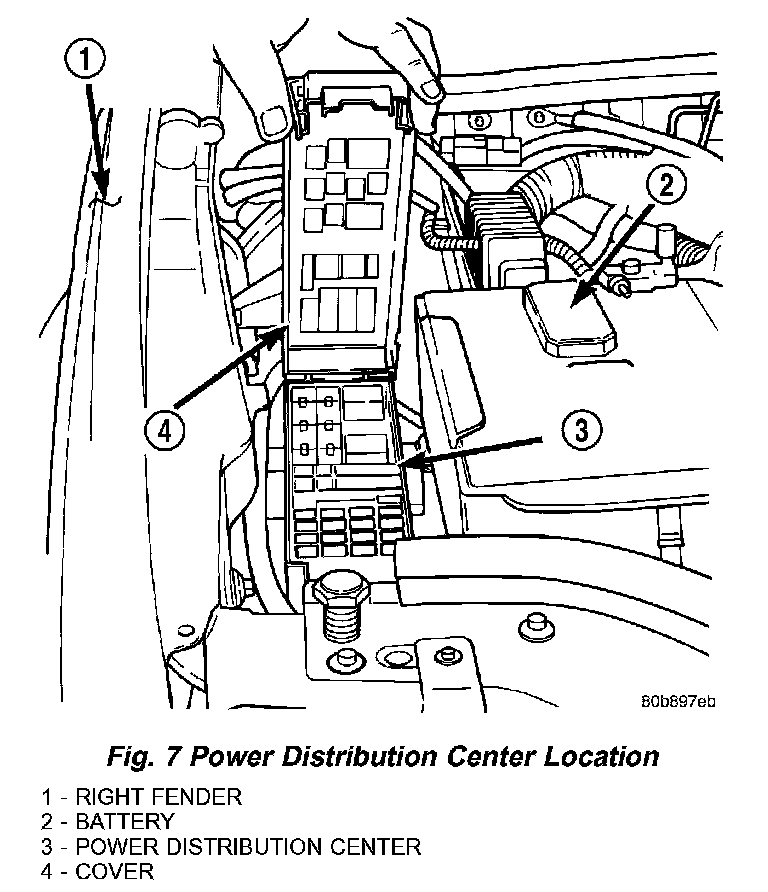

Fig. 7 Power Distribution Center Location:
