Power Seat Control Module
Power Seat Control Module

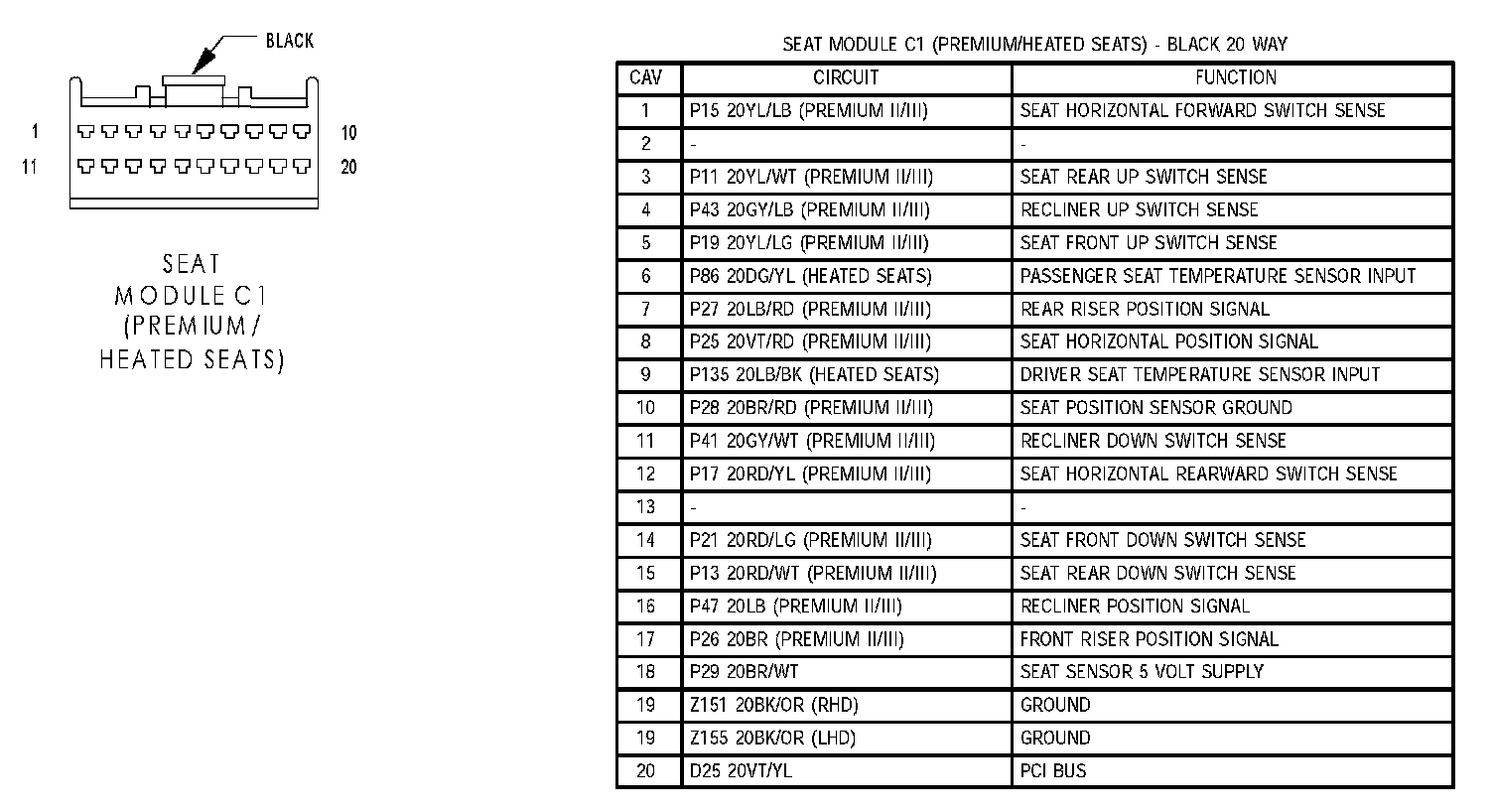

Seat Module C1 (Premium/Heated Seats):
Seat Module C2 (Premium/Heated Seats):
