Power Distribution Module
Power Distribution Module

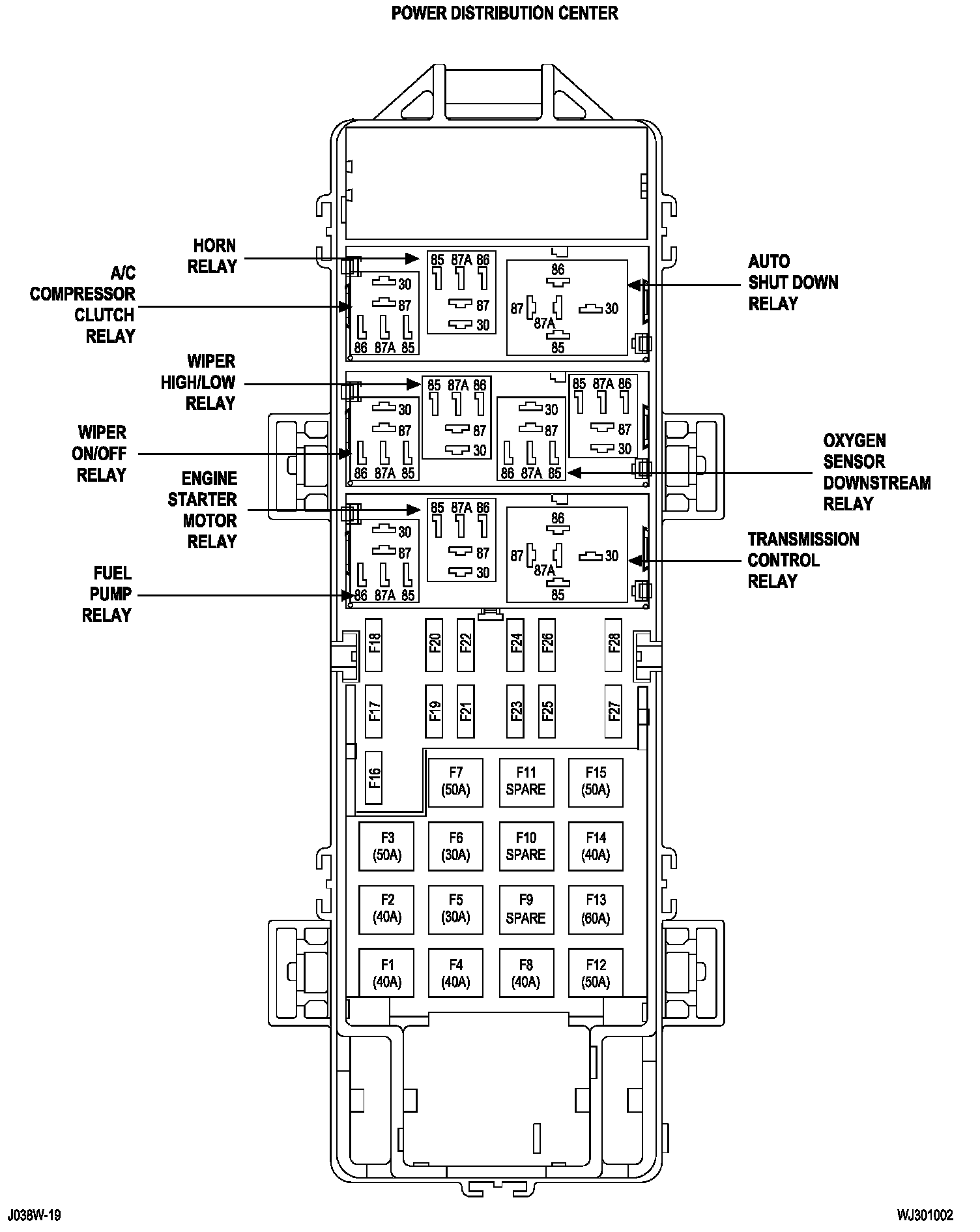

8w-10-2 Power Distribution Center:

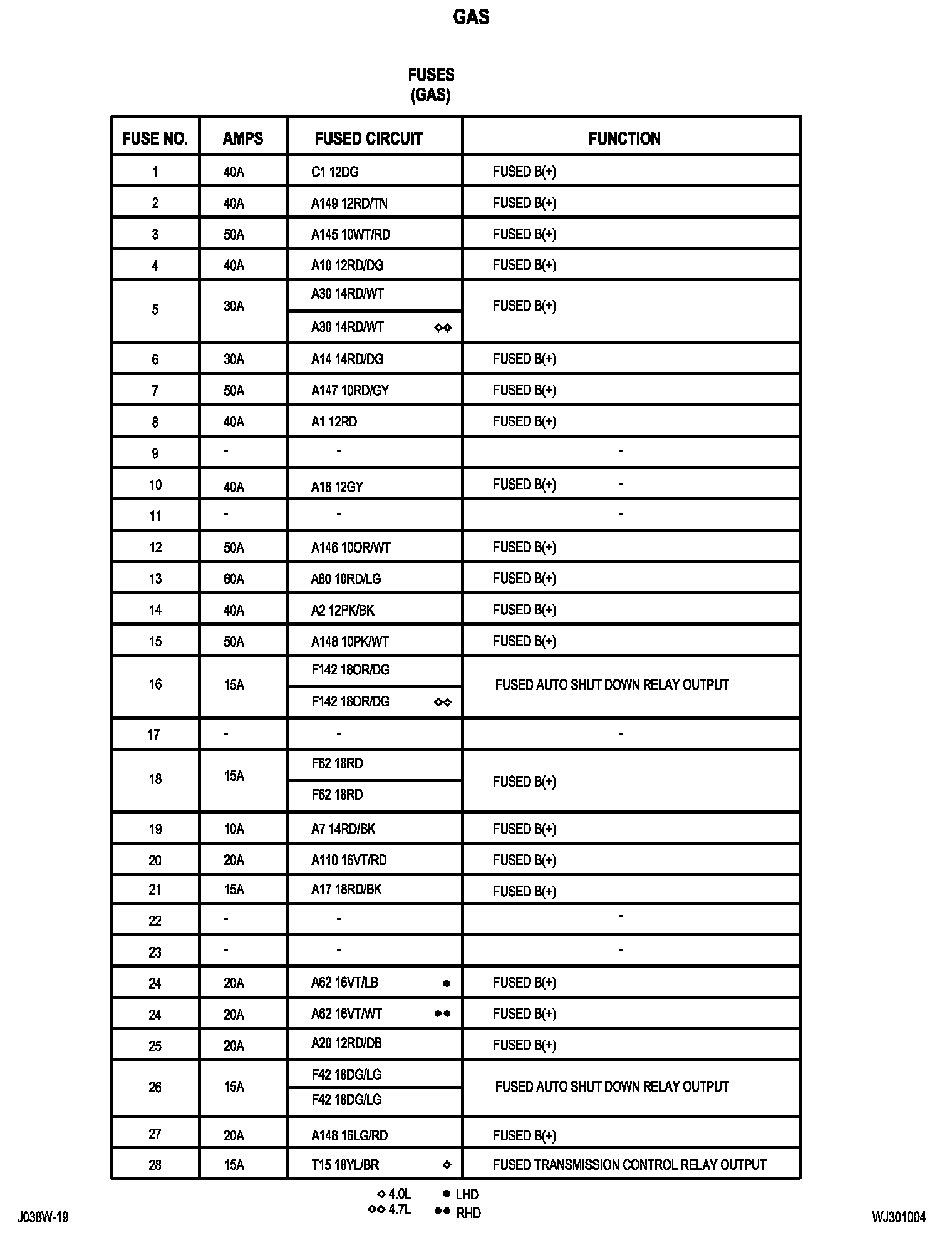

8w-10-4 Fuses (PDC):

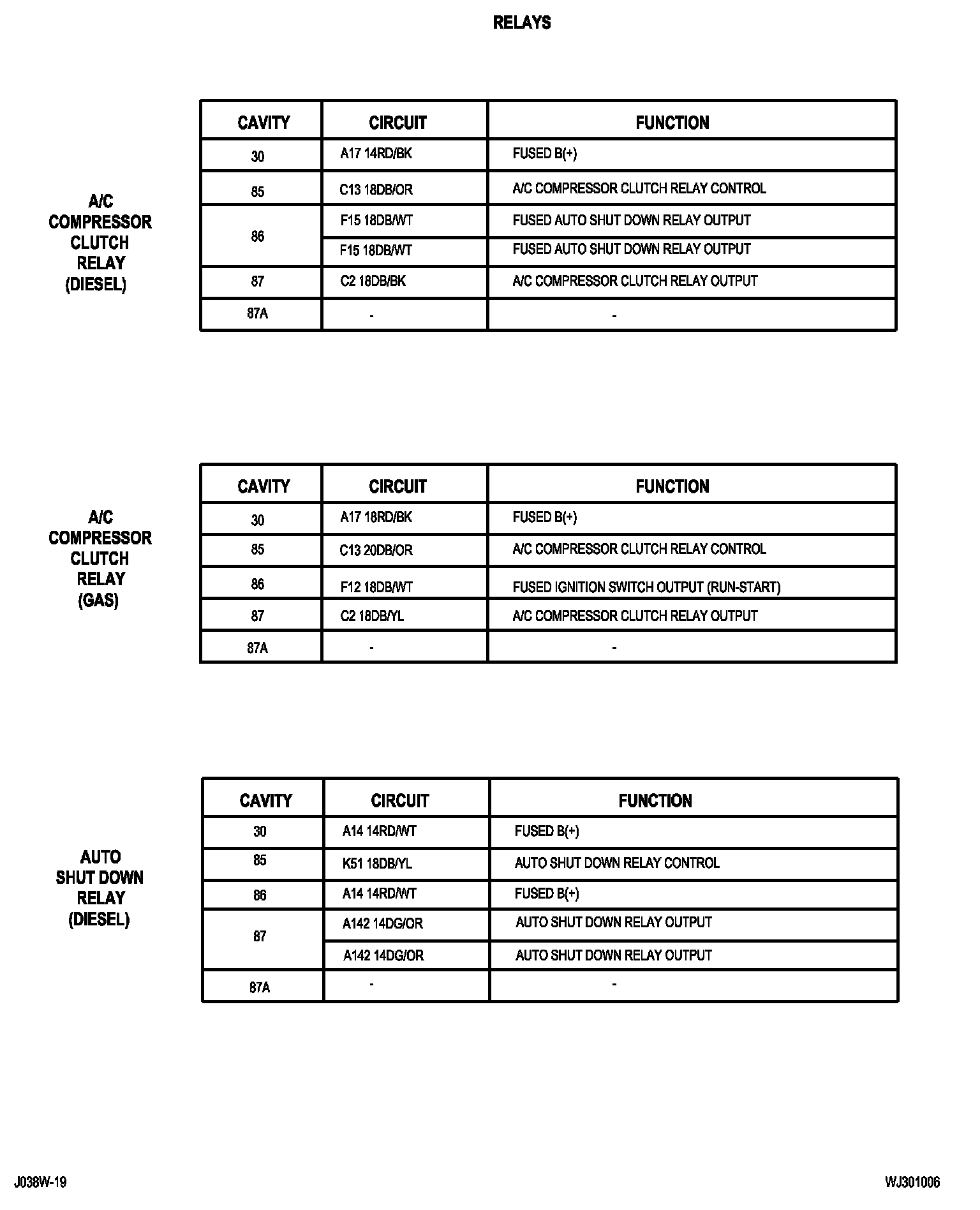

8w-10-6:

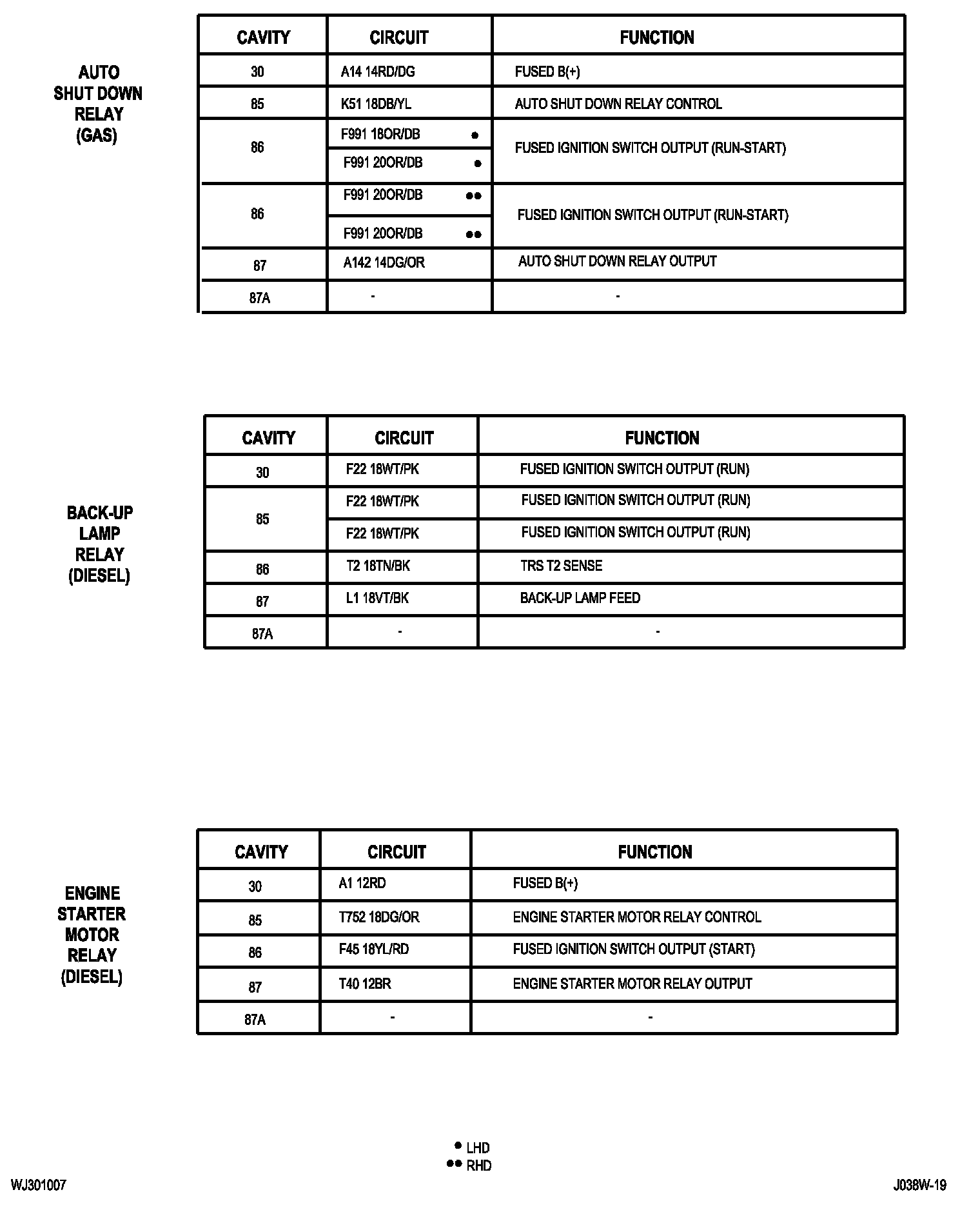

8w-10-7:

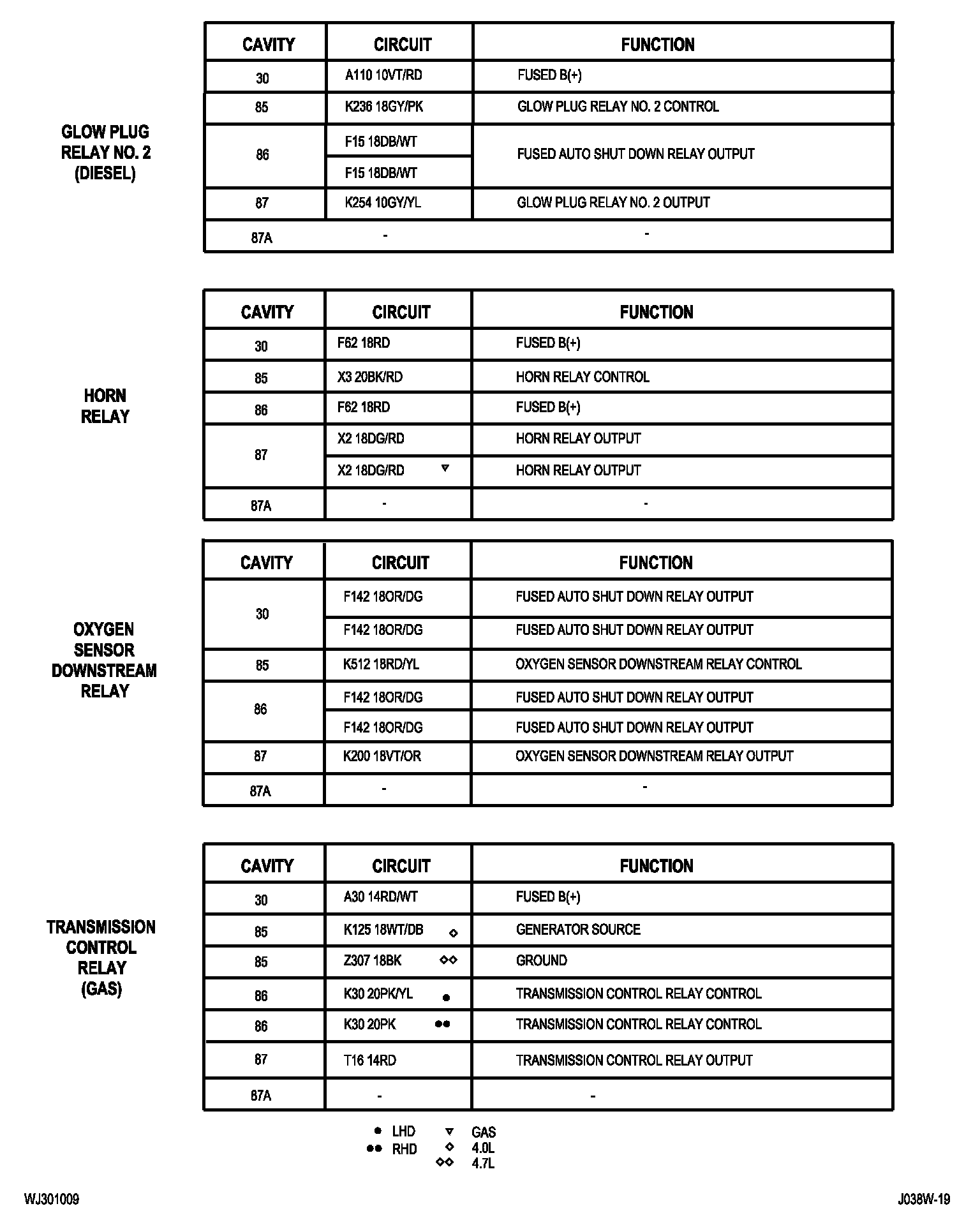

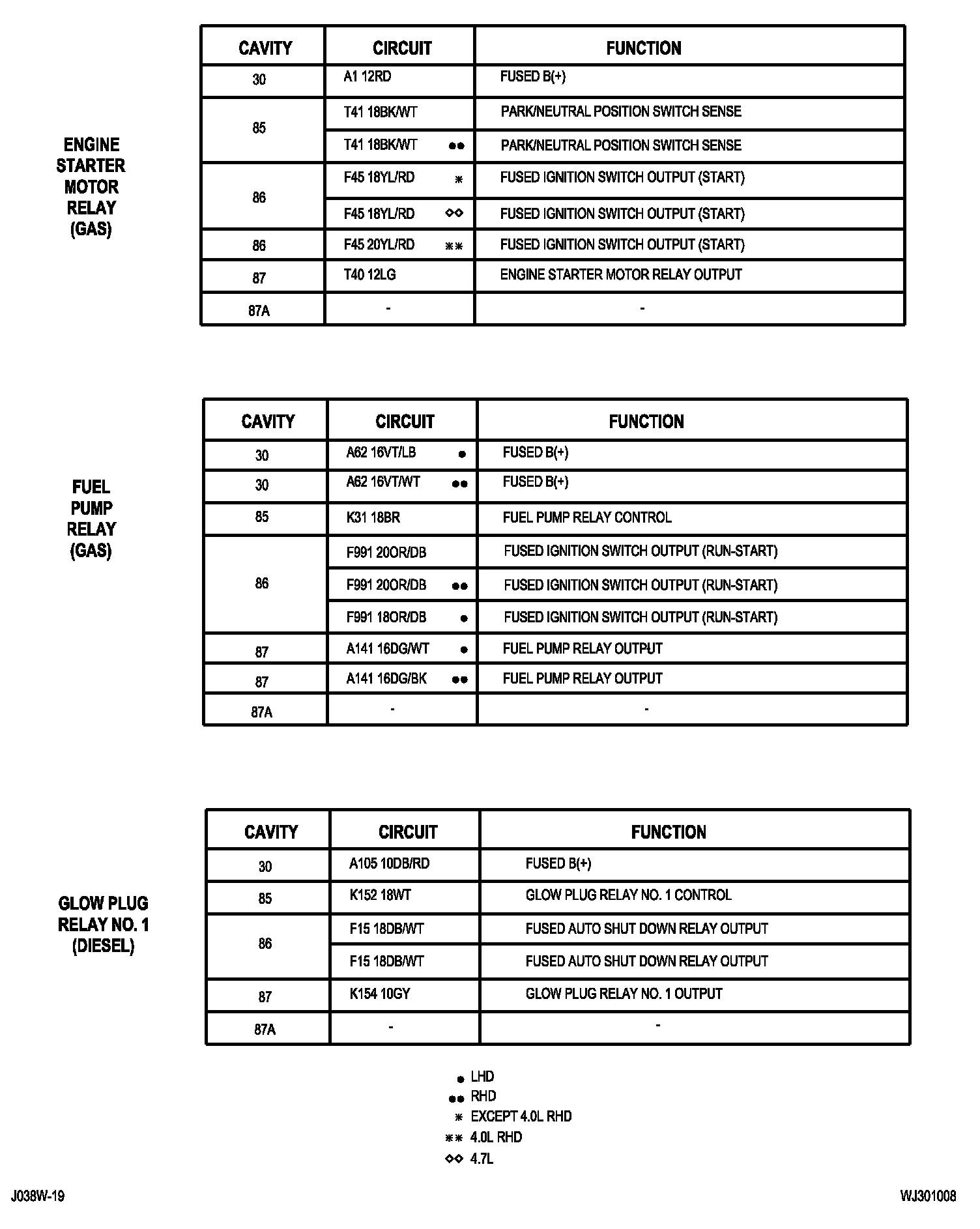

8w-10-8:

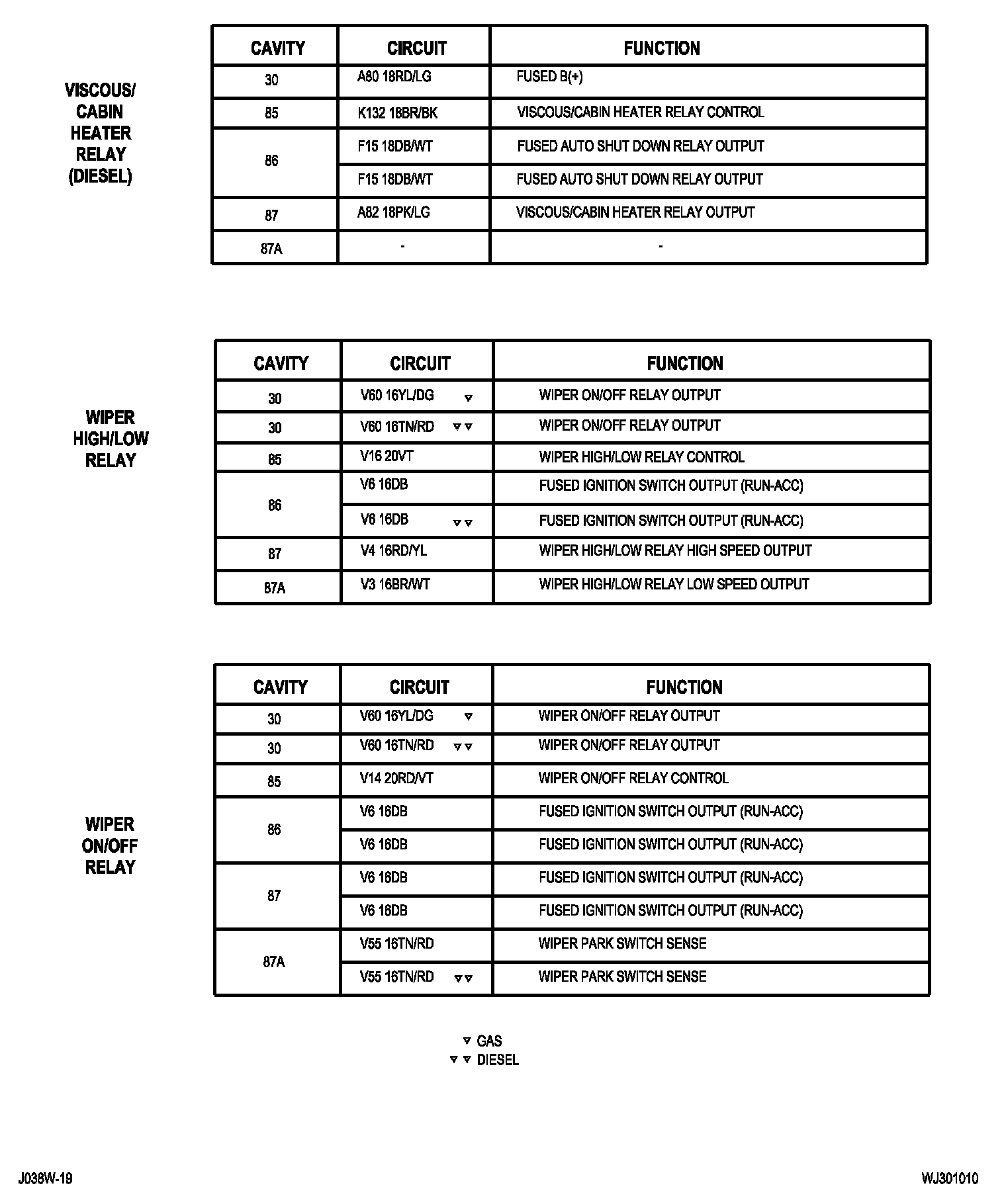

8w-10-9:
8w-10-10:
