Ignition Cable: Service and Repair

SPARK PLUG CABLE

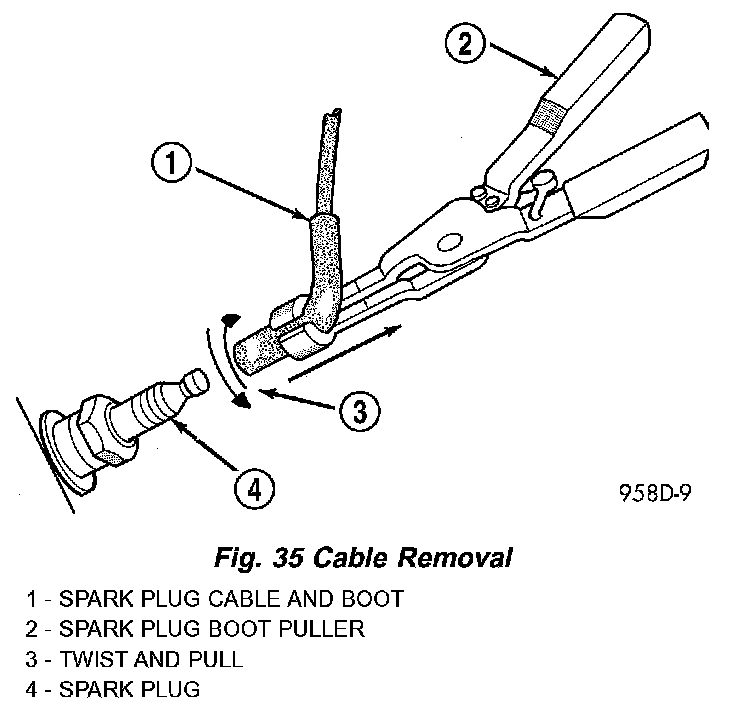

Fig.35 Cable Removal:

REMOVAL

CAUTION: When disconnecting a high voltage cable from a spark plug or from the distributor cap, twist the rubber boot slightly (112 turn) to break it loose.

1. Grasp the boot (not the cable) and pull it off with a steady, even force.

INSTALLATION
1. Push the cable firmly onto the sparkplug.
