Main Relay (Computer/Fuel System): Locations

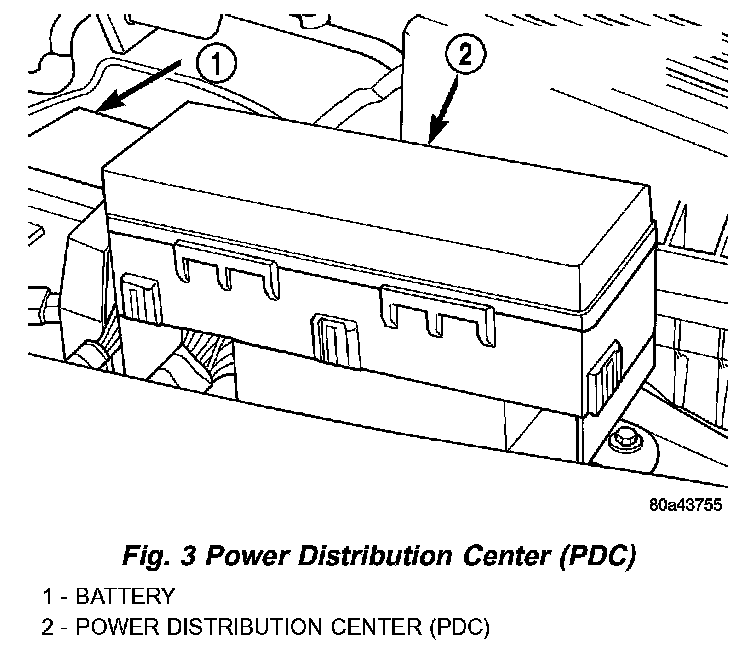

Fig.3 Power Distribution Center (PDC):

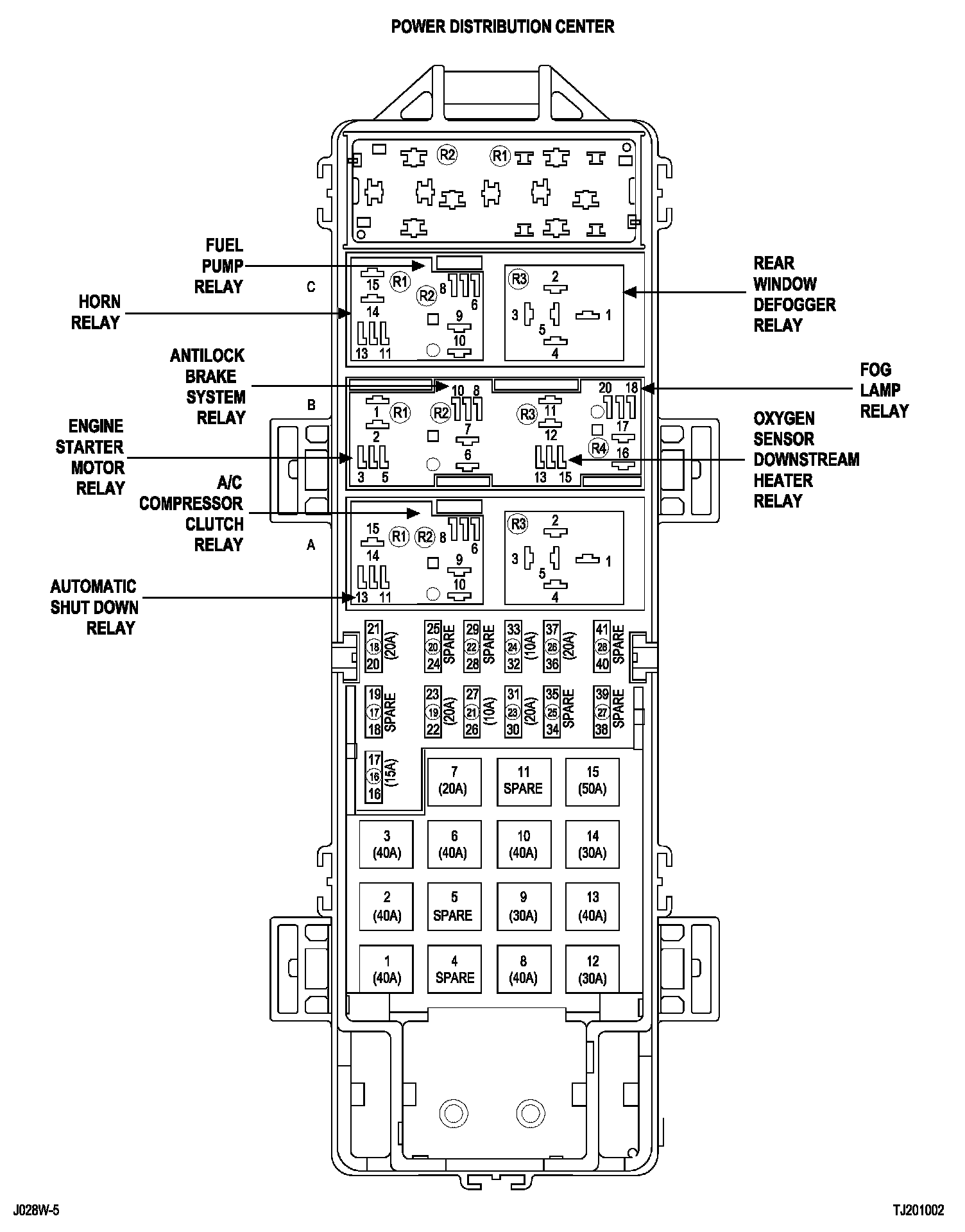

Power Distribution Center:
The ASD relay is located in the Power Distribution Center
(PDC)
.
