Control Module HVAC: Diagrams

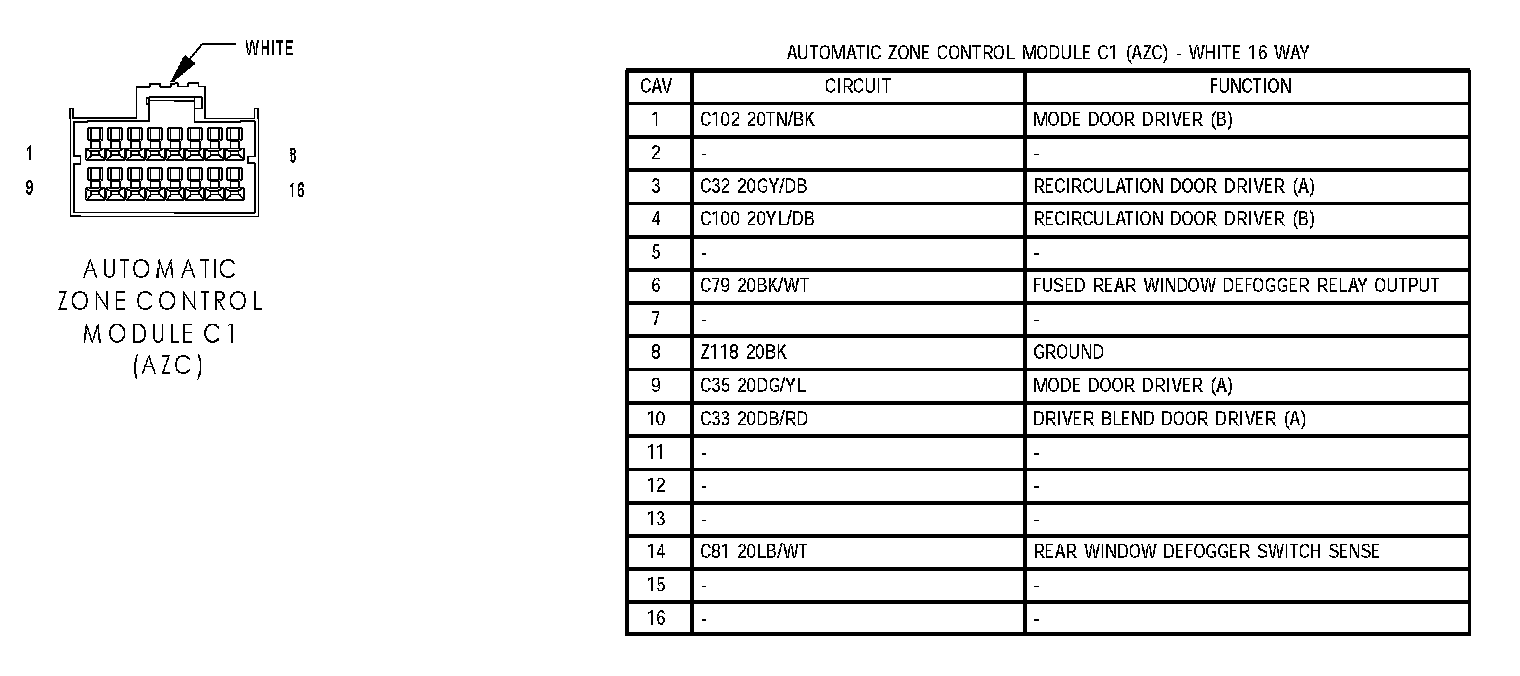

Automatic Zone Control Module C1 (AZC):

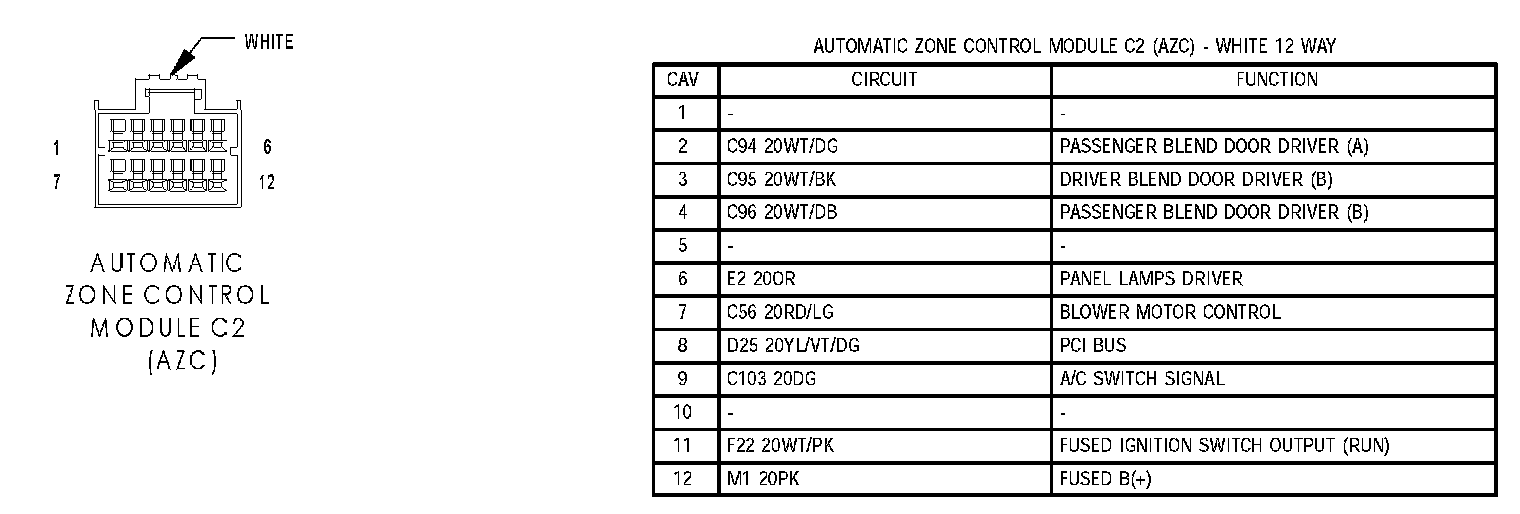

Automatic Zone Control Module C2 (AZC):

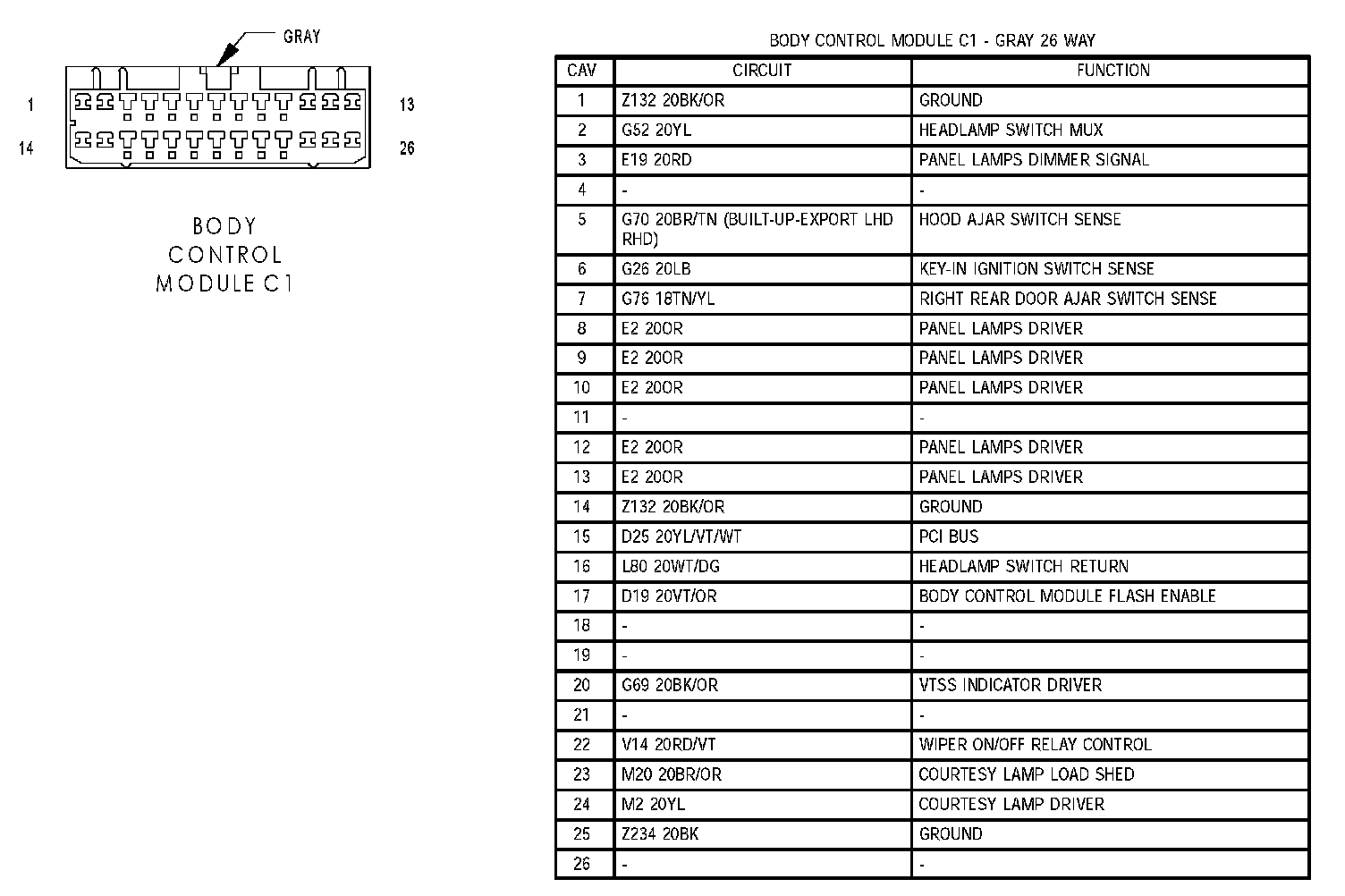

Body Control Module C1:

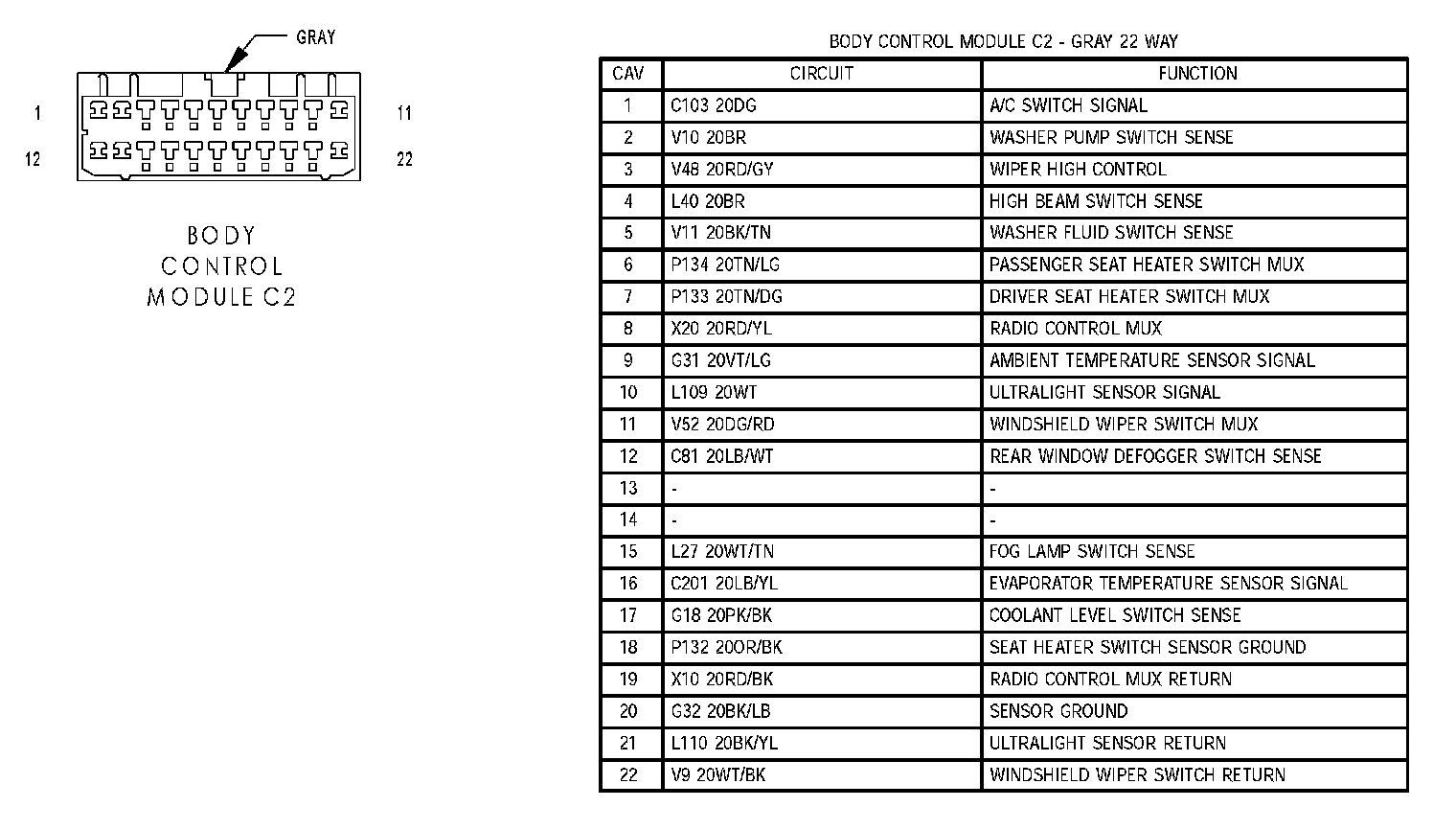

Body Control Module C2:
