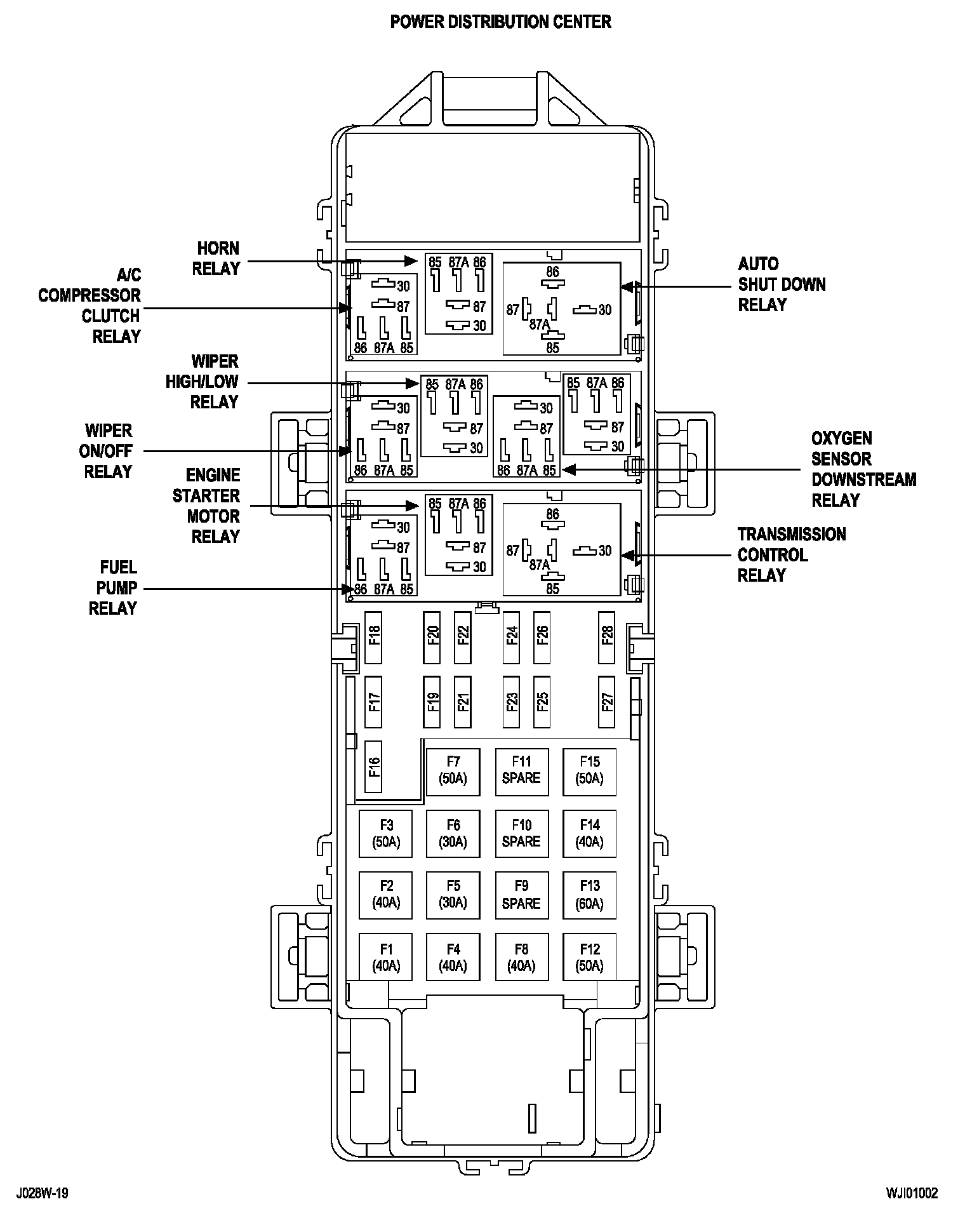

Power Distribution Module
Power Distribution Module
8w-10-2:
8w-10-4:
8w-10-6:
8w-10-7:
8w-10-8:
8w-10-9:
8w-10-10:
