Home >> Jeep >> 2002 >> Grand Cherokee 2WD Laredo V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

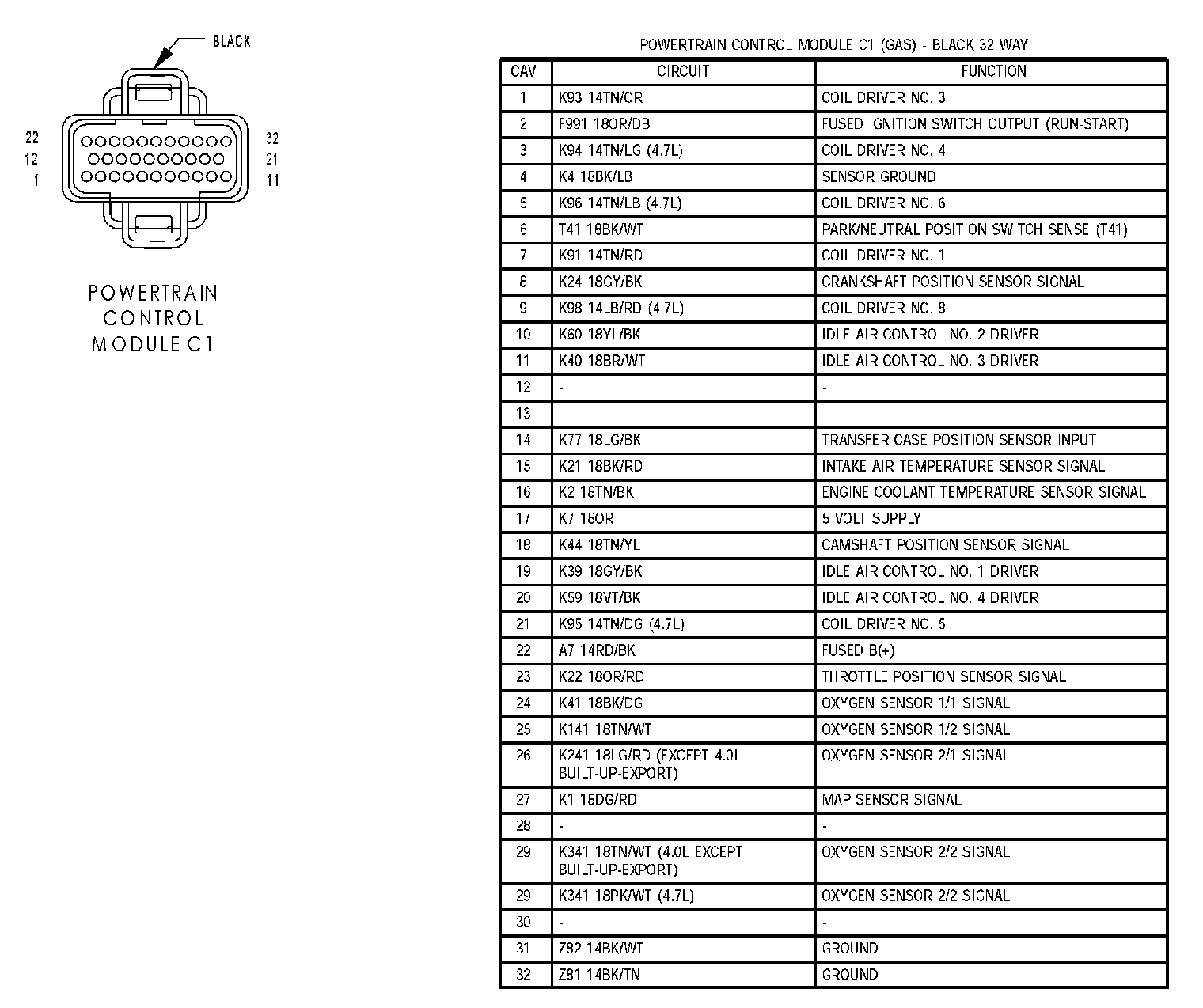

Powertrain Control Module C1:

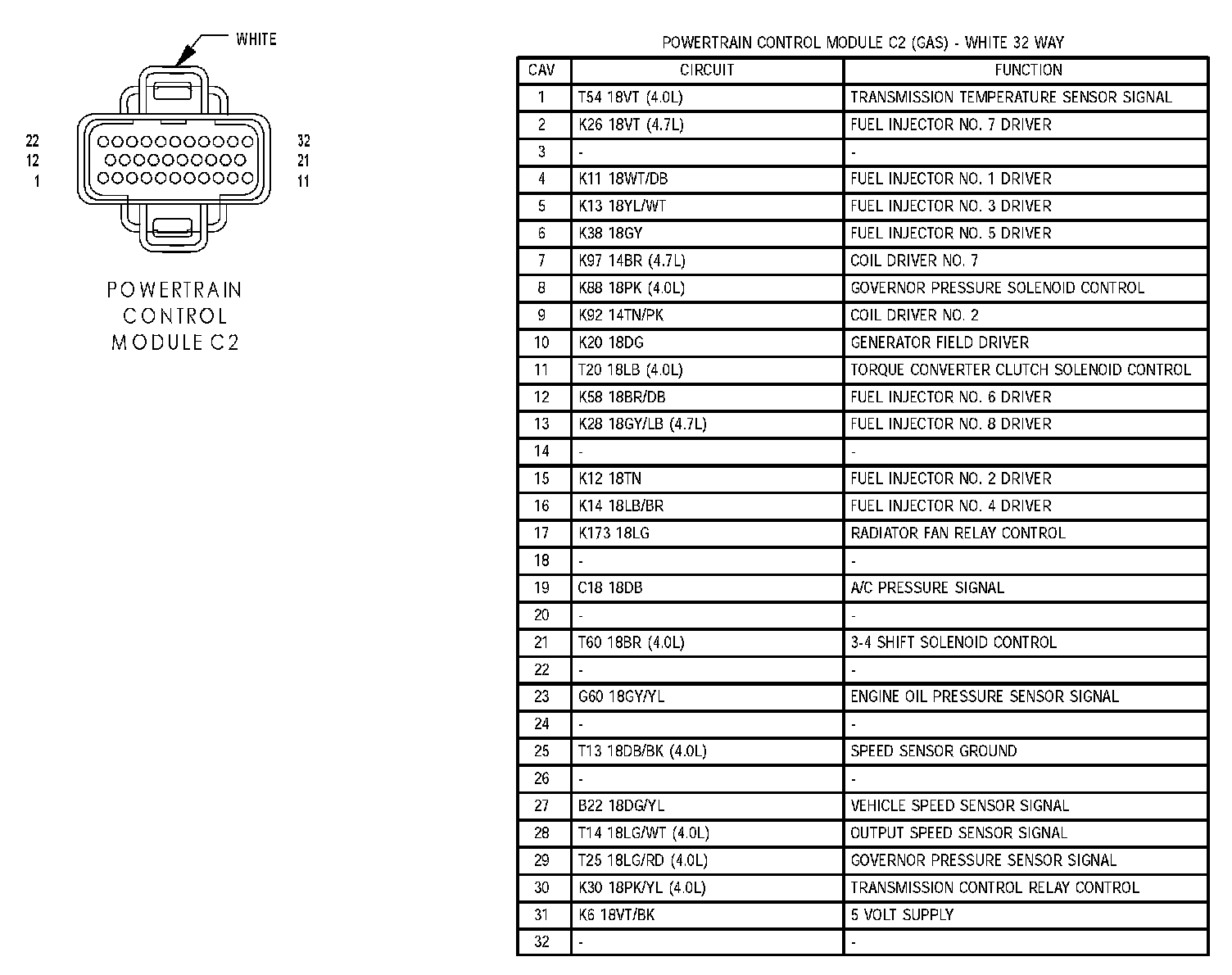

Powertrain Control Module C2:

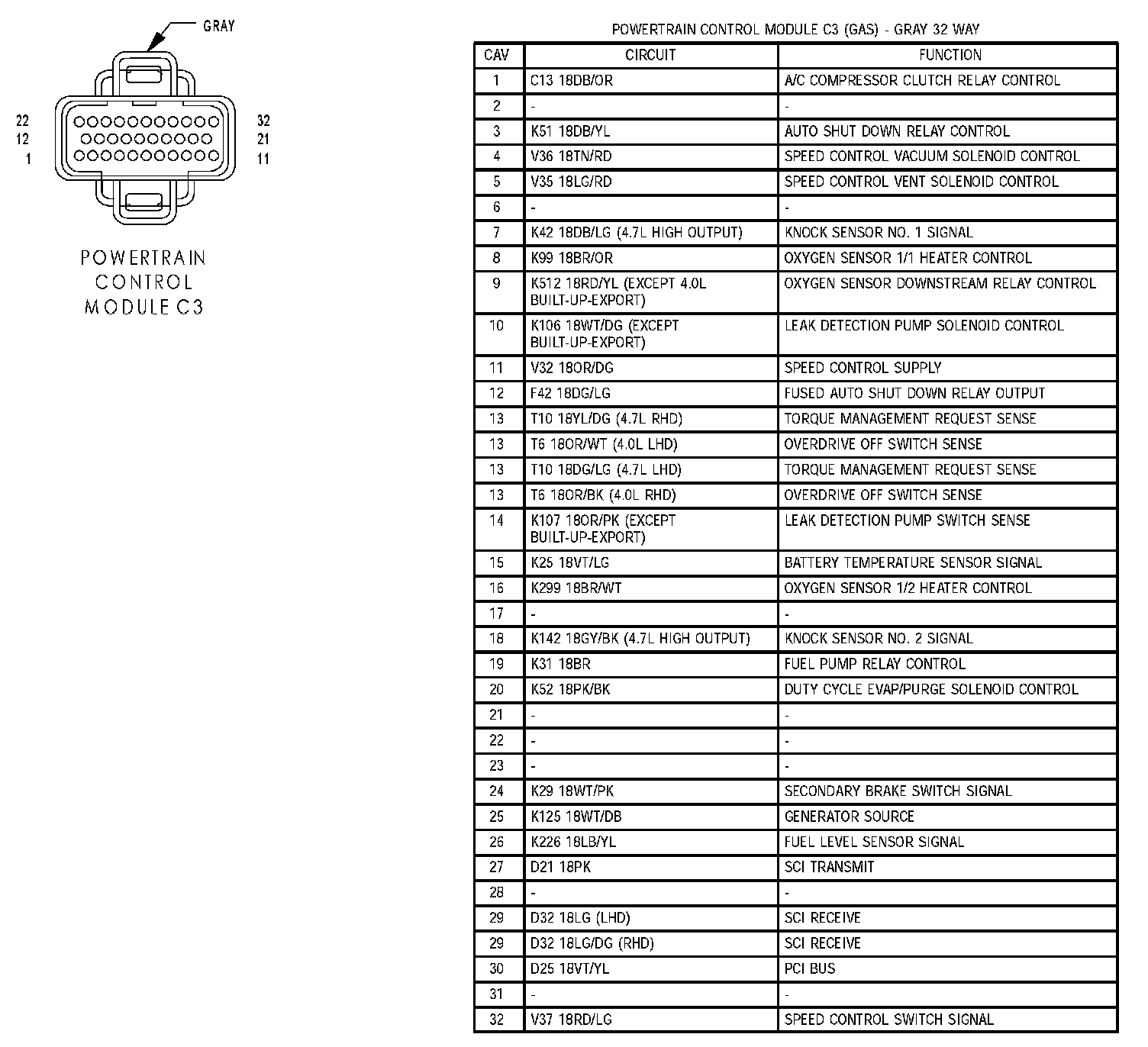

Powertrain Control Module C3:
