Home >> Jeep >> 2002 >> Grand Cherokee 2WD Laredo V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module

Door Module

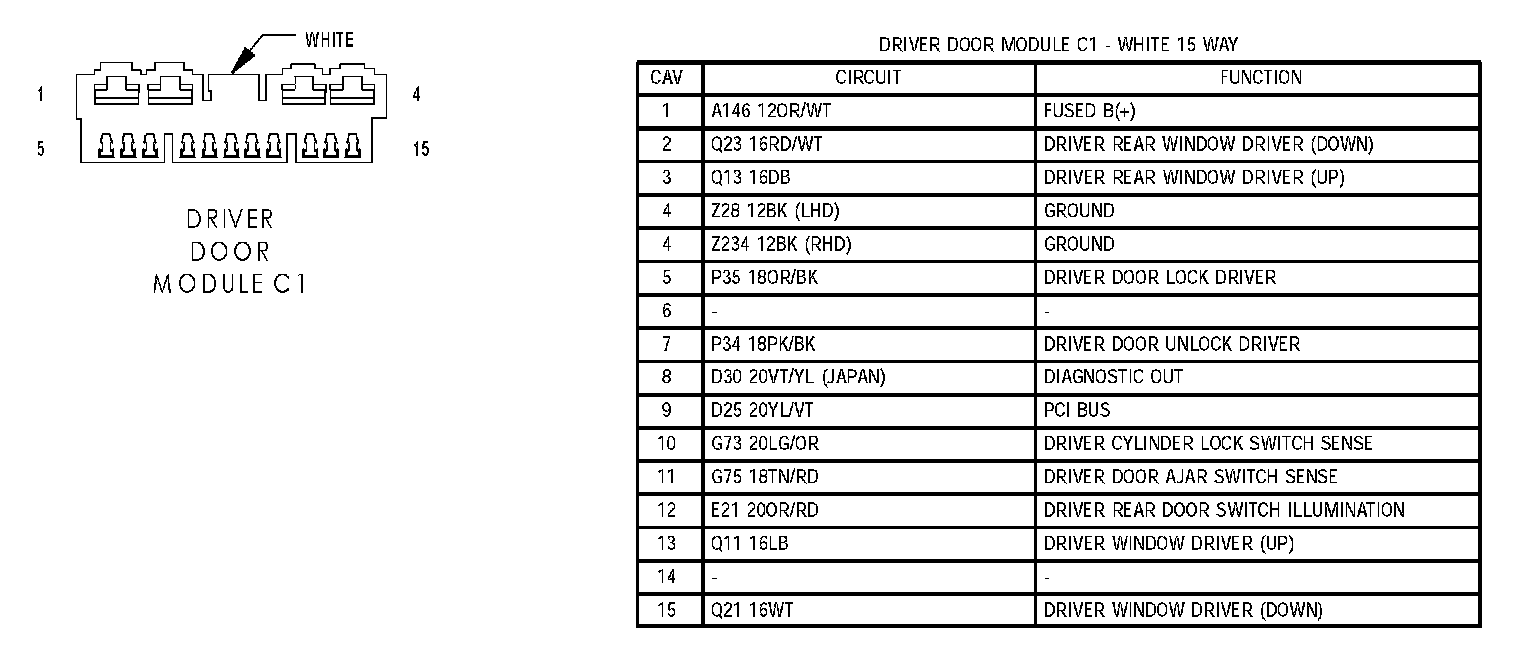

Driver Door Module C1:

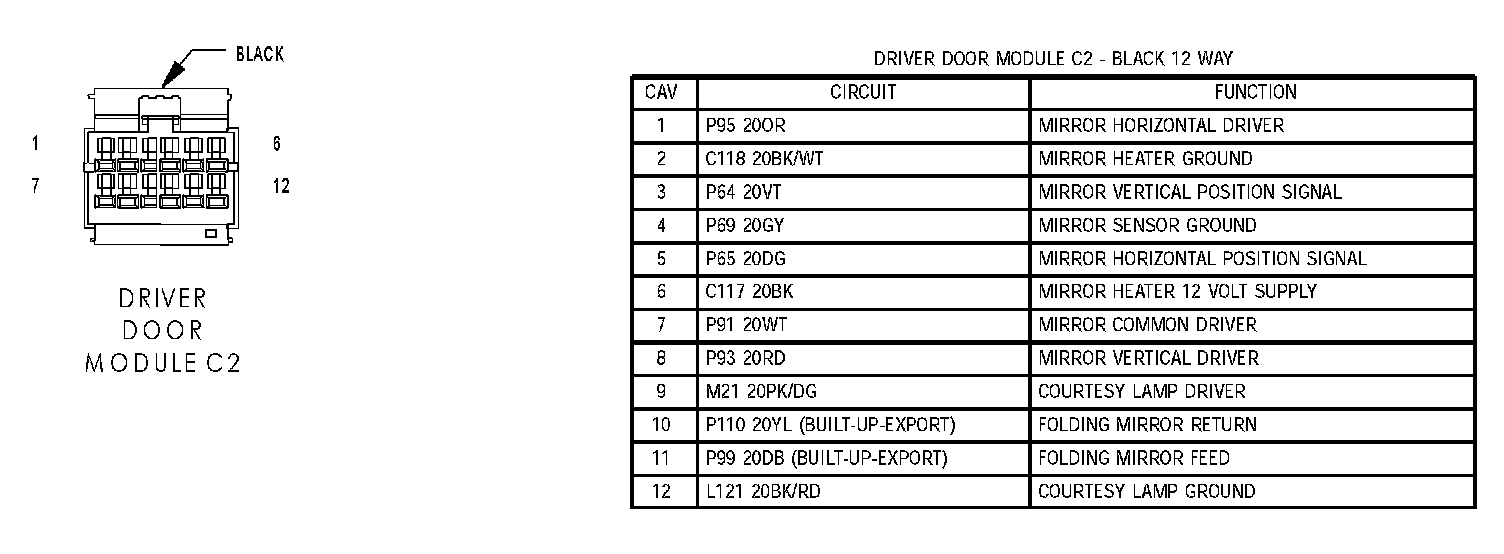

Driver Door Module C2:

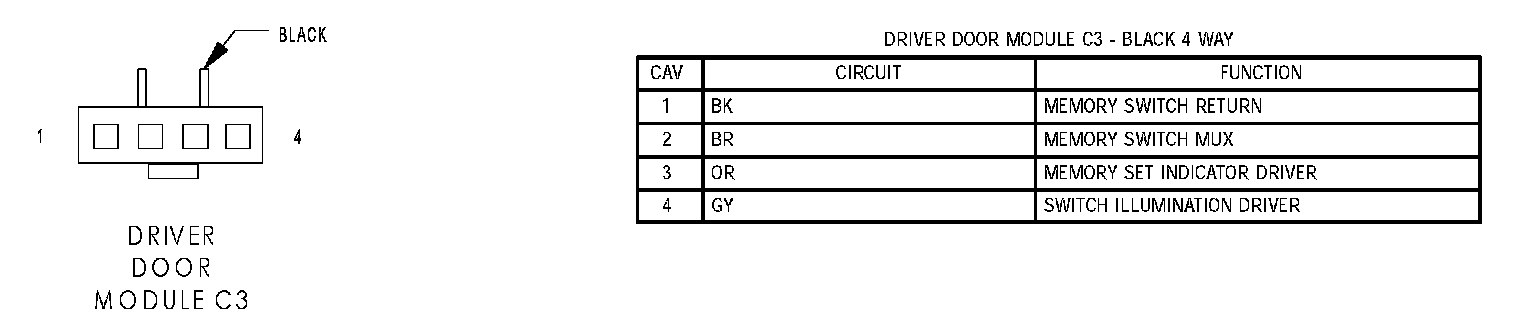

Driver Door Module C3:

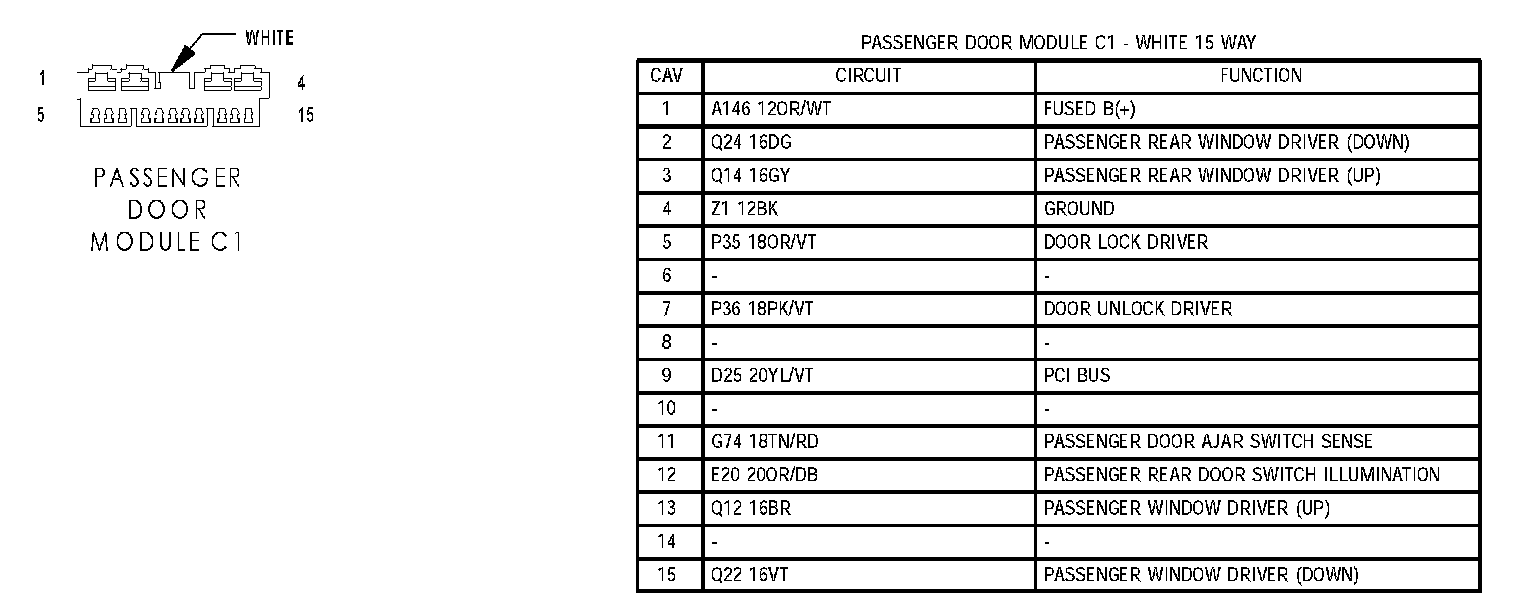

Passenger Door Module C1:

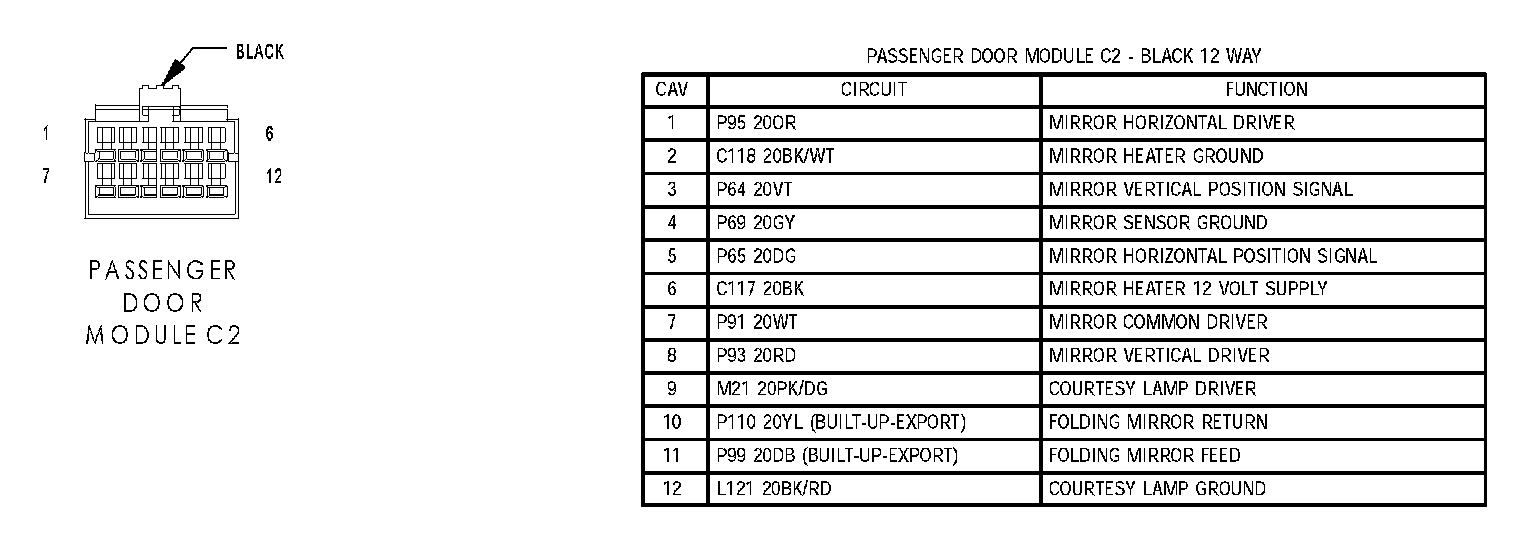

Passenger Door Module C2:
