Grand Cherokee 2WD Laredo V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
Body Control Module

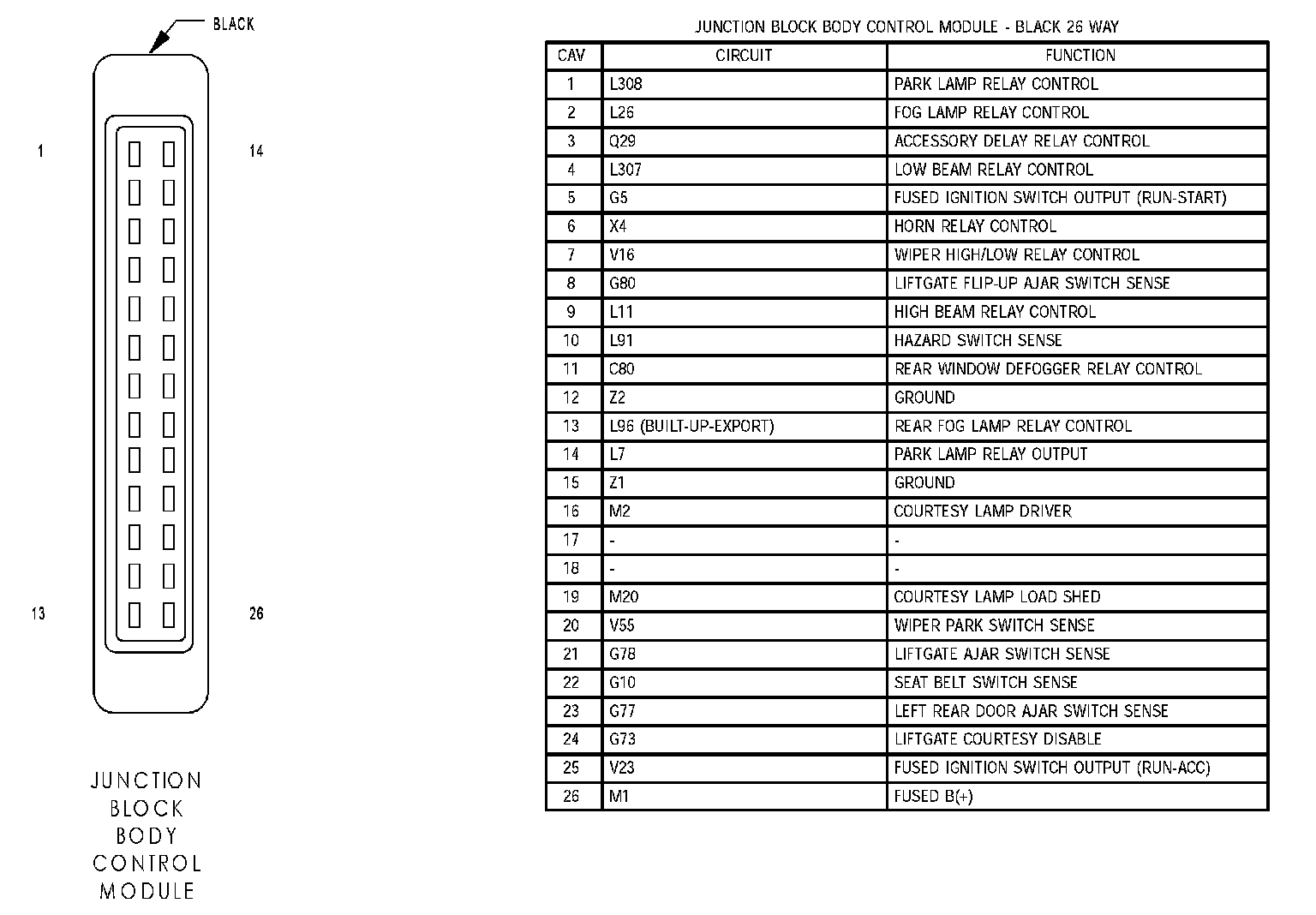

Junction Block Body Control Module:
