Engine Control Module
Engine Control Module

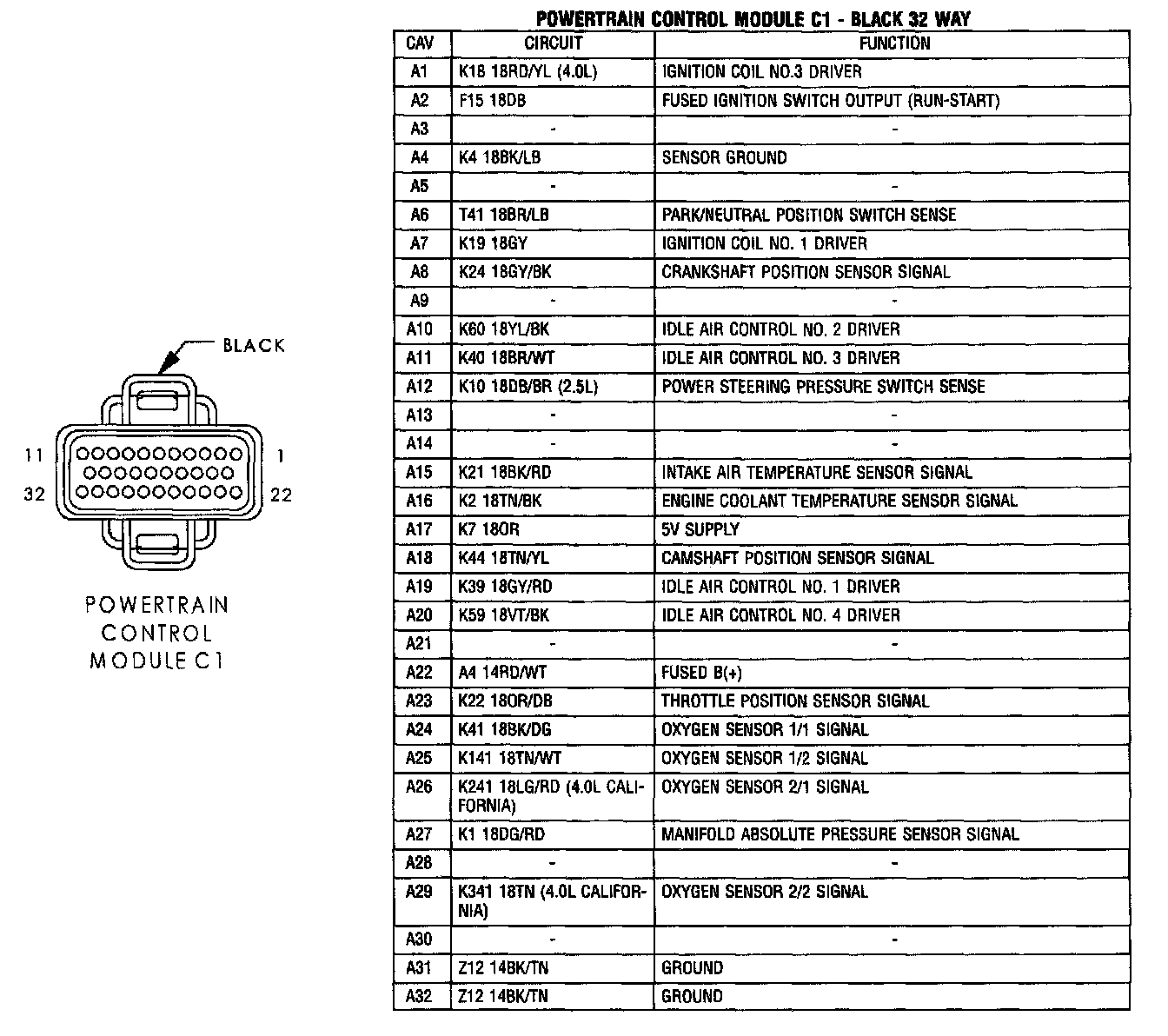

Powertrain Control Module C1 (Black):

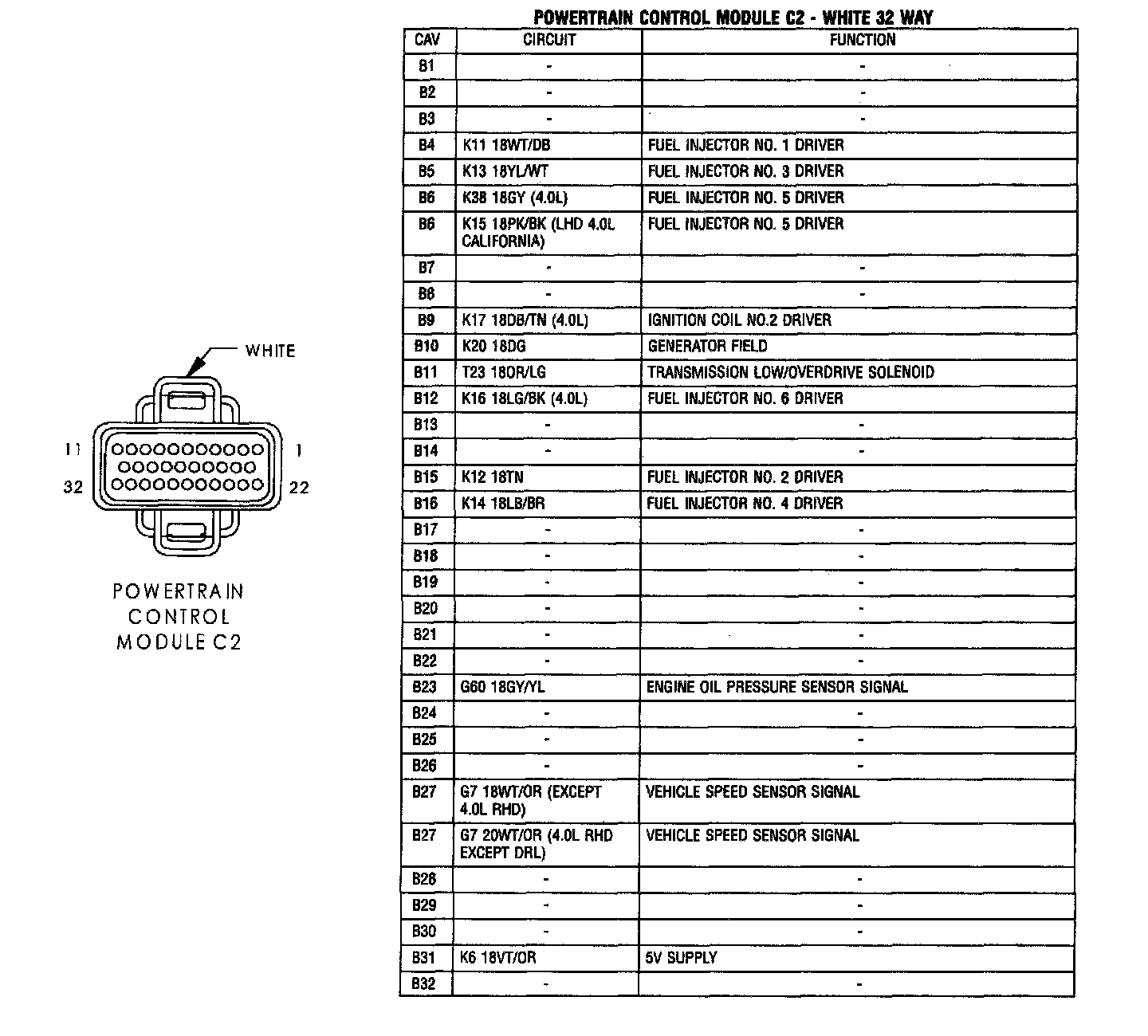

Powertrain Control Module C2 (White):

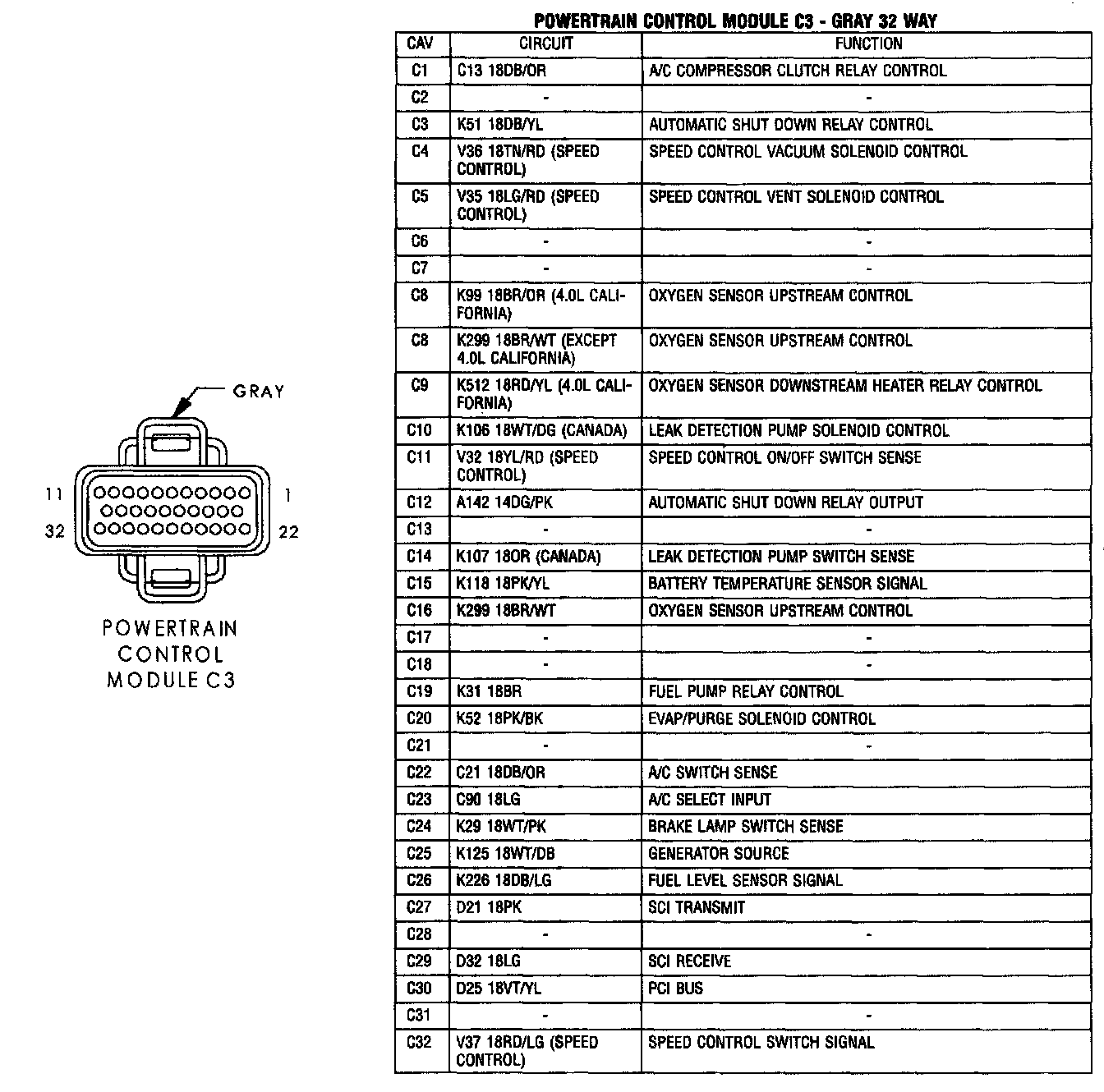

Powertrain Control Module C3 (Gray):
