Home >> Jeep >> 2000 >> TJ (CANADA) L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams

Main Relay (Computer/Fuel System): Diagrams

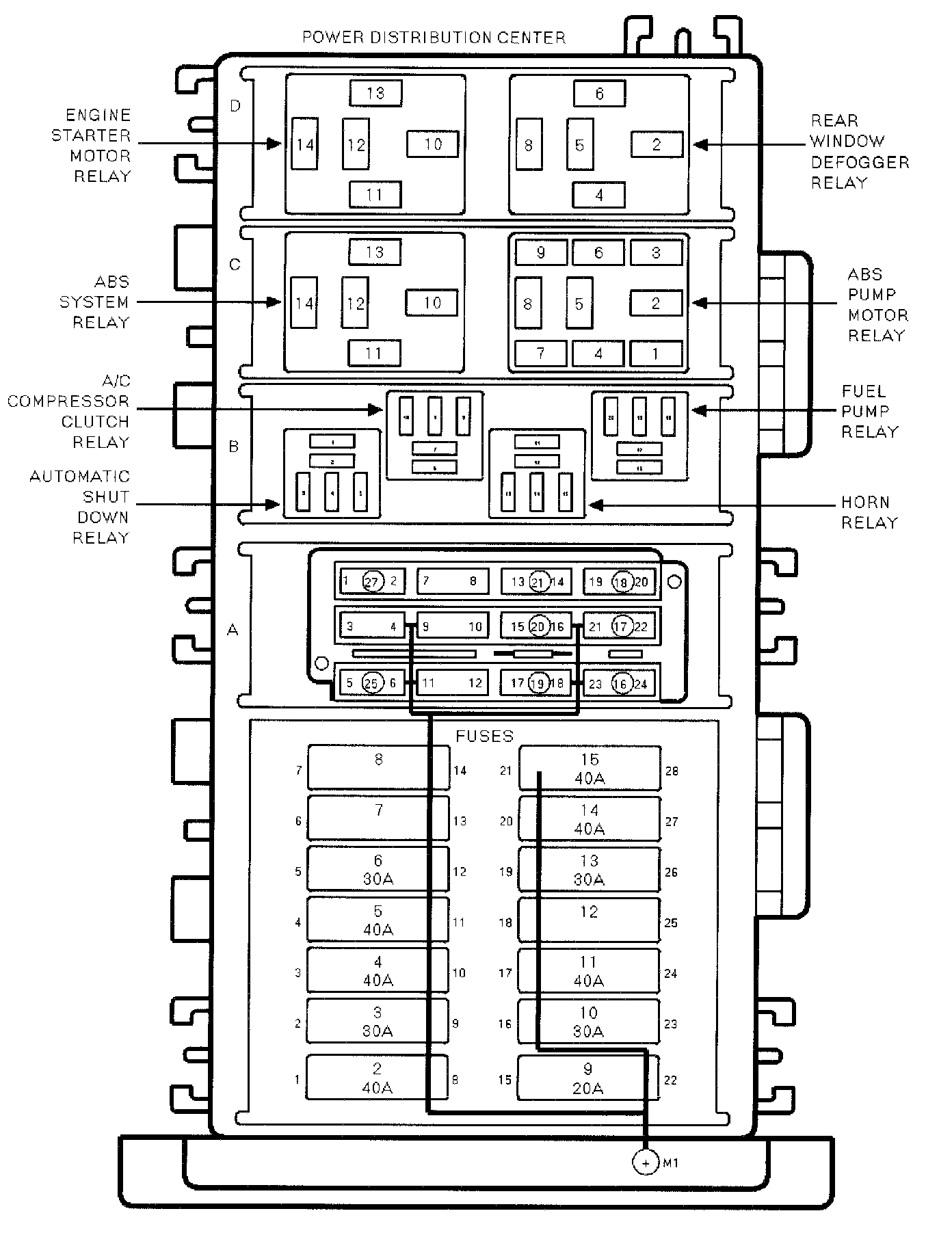

Power Distribution Center:

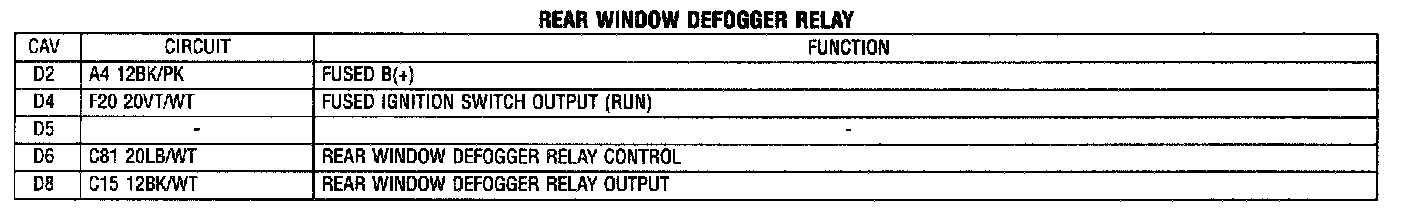

Rear Window Defogger Relay:



8w-10-2:
